Visaton W 250 8 Ohm, 10 Inch, HiFi Woofer

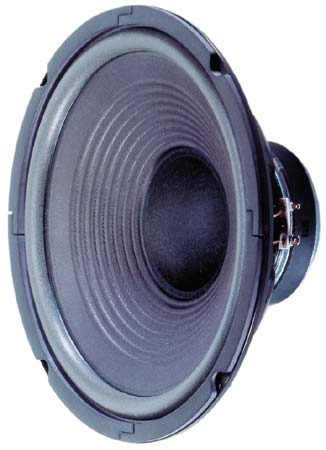

Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The W 250 is a 25 cm woofer with an air-dried, reinforced cone, and it can be fitted from the front or the rear of the baffle. It takes 90 W rated power at 8 Ω, resonates at 45 Hz and has a mechanical excursion limit of ±10 mm, with 90 dB sensitivity from a 35 mm voice coil.
Typical applications
- Large multi-way speaker systems
Full specifications
| Rated power | 90 W |
|---|---|
| Maximum power | 130 W |
| Nominal impedance | 8 Ω |
| Frequency response (−10 dB) | fu–6000 Hz (fu: lower cut-off depends on the cabinet) |
| Mean sound pressure level | 90 dB (1 W/1 m) |
| Excursion limit | ±10 mm |
| Resonance frequency fs | 45 Hz |
| Magnetic induction | 1.0 T |
| Magnetic flux | 660 µWb |
| Height of front pole-plate | 6 mm |
| Voice coil diameter | 35 mm |
| Height of winding | 12 mm |
| Cut-out | 236 mm |
| Net weight | 1.5 kg |
| D.C. resistance Rdc | 6.8 Ω |
| Mechanical Q factor Qms | 3.57 |
| Electrical Q factor Qes | 1.00 |
| Total Q factor Qts | 0.78 |
| Equivalent volume Vas | 135 l |
| Effective piston area Sd | 360 cm² |
| Dynamically moved mass Mms | 27 g |
| Force factor Bxl | 6.4 Tm |
| Inductance of the voice coil L | 1.1 mH |
| Terminals | 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-) |
Dimensions and drawings

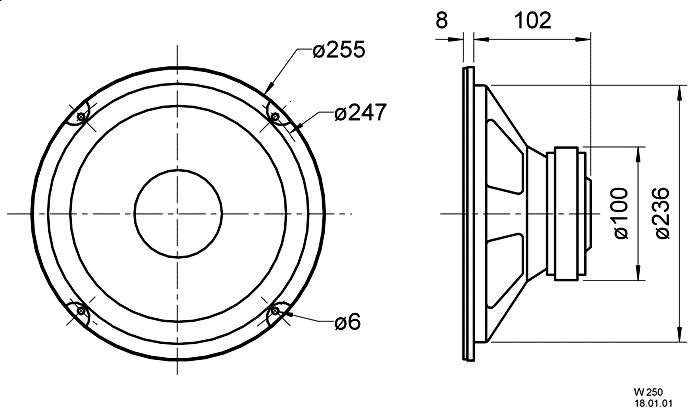

Dimension drawing · Open original image
Installation and cabinet guidance
Allow a 236 mm panel opening for a 255 mm frame, with 6 mm fixing holes on a 247 mm circle. Behind the panel the driver needs about 102 mm of clear depth for the basket and the 100 mm magnet, with room beyond that for the terminals and the wiring. It can be mounted from the front or the rear of the panel, so settle which side you are working from before cutting the fixing holes.
At 1.5 kg this is a substantial driver, so use a rigid, well braced baffle with a continuous gasket or sealing strip between the frame and the panel, and tighten the fixings evenly and only enough to seal so the frame is not distorted. With ±10 mm of travel available, check that the cone and the surround stay clear of the grille and of any internal bracing at full excursion. The terminals take 4.8 x 0.8 mm blades on the positive side and 2.8 x 0.8 mm on the negative, so blade width identifies polarity; observe it and use an amplifier or crossover suited to the 8 Ω load.
Visaton's published enclosure suggestions for this driver: 30 l bass reflex with one BR 15.34 port cut to 11 cm (fb 46 Hz); 50 l bass reflex with one BR 15.34 port cut to 9 cm (fb 38 Hz); 70 l bass reflex with one BR 15.34 port cut to 8 cm (fb 38 Hz).
Related Products
Part number 9046

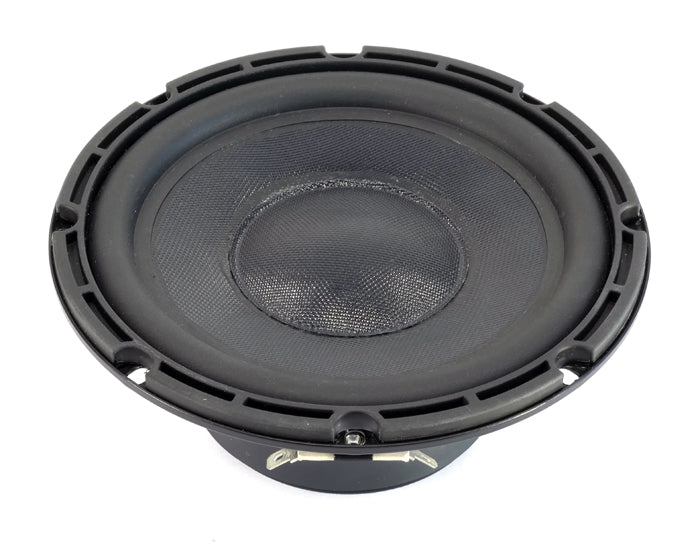

Visaton W 165 A 2 Ohm, 6.5 Inch, Weatherproof Woofer
Part number 2001

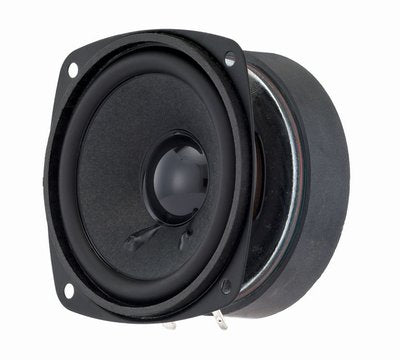

Visaton FRS 8 M 8 Ohm, 3.3 Inch, HiFi Full Range Speaker
Part number 9023

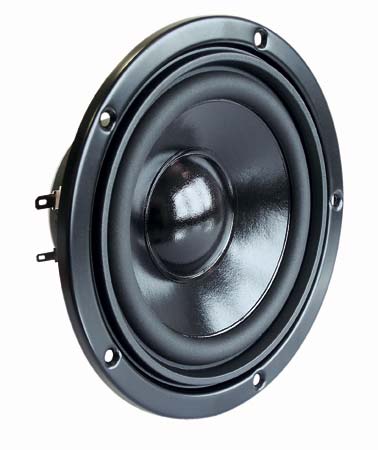

Visaton W 130 S 8 Ohm, 5 Inch, HiFi Woofer
Part number 9089

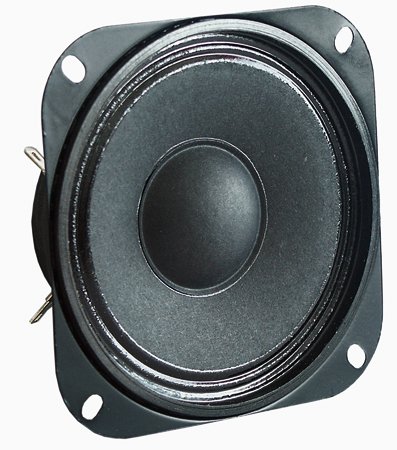

Visaton M 10 8 Ohm, 4 Inch, HiFi Midrange Driver
Part number 9002

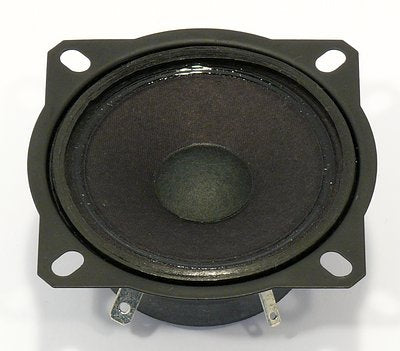

Visaton TW 70 8 Ohm, Cone Tweeter
Part number 9063

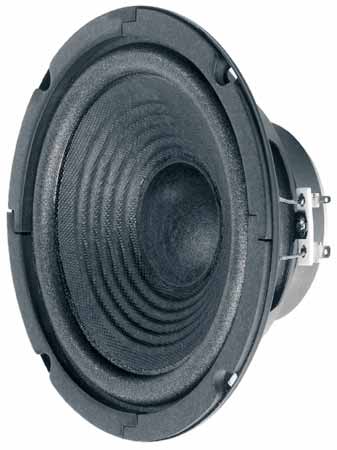

Visaton W 170 8 Ohm, 6.5 Inch, HiFi Woofer
Part number 9022
Visaton W 130 S 4 Ohm, 5 Inch, HiFi Woofer
Part number 1000

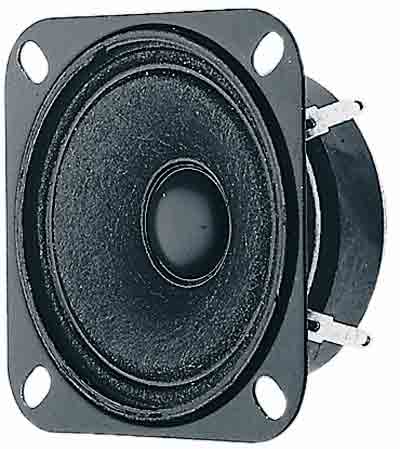

Visaton TW 6 NG 8 Ohm, Cone Tweeter
Part number 1056

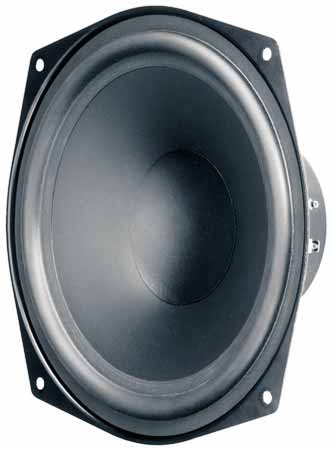

Visaton WS 20 E 8 Ohm, 8 Inch, HiFi Woofer
Part number 1055

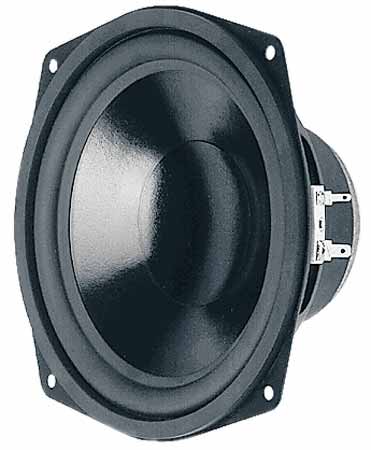

Visaton WS 17 E 8 Ohm, 6.5 Inch, HiFi Woofer
