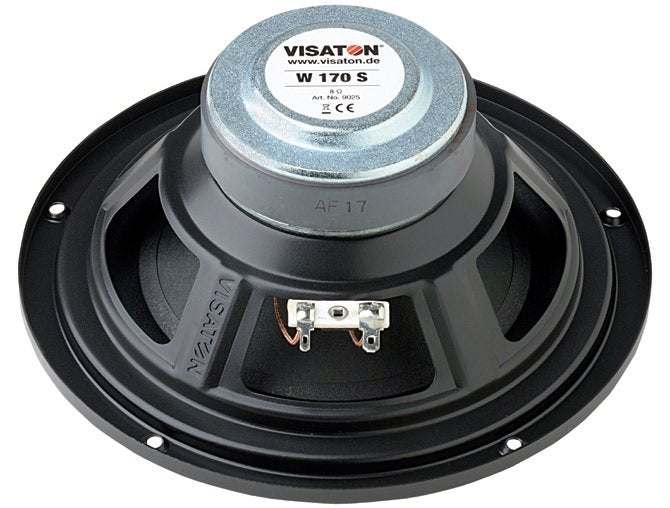

Visaton W170 S |17 cm/6.5ins, 4Ohm, HiFi woofer

Product Description

-With coated paper cone, powerful drive and extended rear pole plate.-W 170 S Art.No.9024, 4 Ohms. 17cm(6.5ins) HiFi woofer with coated paper cone, powerful drive and extended rear pole plate. Special voice coil and elastic rubber surround for long strokes. Applied to : Alto I, Alto II, Alto III C. Accessories: Protective grille NG 6.5ins (Art.No.1148)

Technical Data:
Rated power 50 W
Maximum power 80 W
Nominal impedance Z 4 Ohm
Frequency response fu–8000 Hz
(fu: Lower cut-off frequency depending on cabinet) .
Mean sound pressure level 86 dB (1 W/1 m)

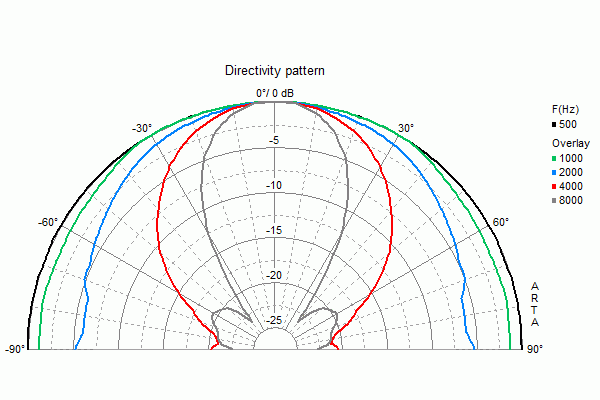

Opening angle (-6 dB) 72°/4000 Hz
Excursion limit +/−10 mm
Resonance frequency fs 36 Hz
Magnetic induction 1,0 T
Magnetic flux 314 µWb
Height of front pole-plate 4 mm
Voice coil diameter 25 mm
Height of winding 12,5 mm

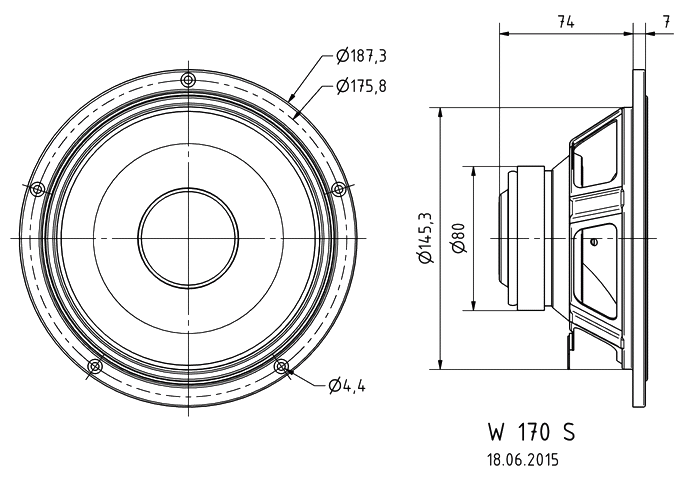

Cutout diameter 148 mm
Net weight 1,1 kg
D.C. resistance Rdc 3,2 Ohm
Mechanical Q factor Qms 2,16
Electrical Q factor Qes 0,51
Total Q factor Qts 0,41
Equivalent volume Vas 38 l
Effective piston area Sd 129 cm²
Dynamically moved mass Mms 12 g
Force factor Bxl 4,4 Tm
Inductance of the voice coil L 0,6 mH

ex VAT
£38.76 inc VAT
