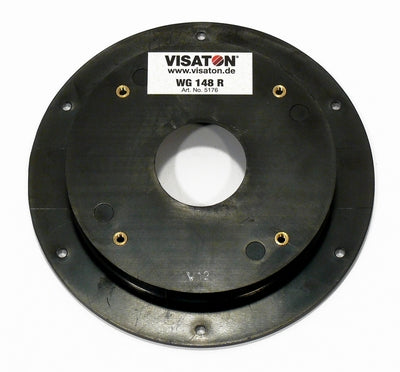

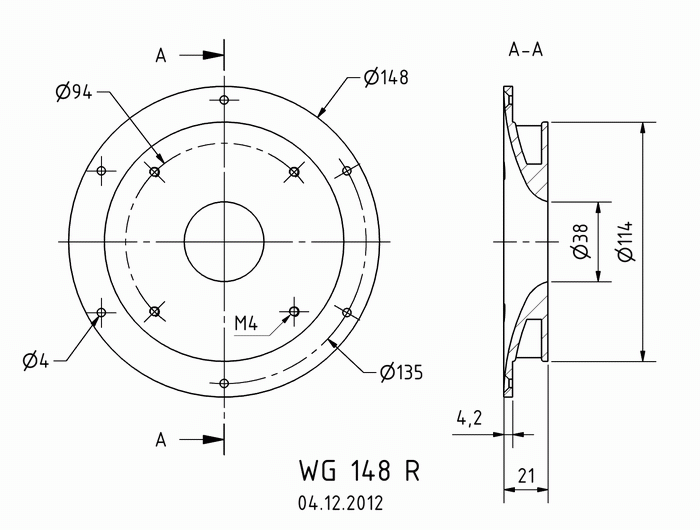

{ "id":2066130960451, "title":"Visaton Waveguide WG 148 R","handle":"visaton-waveguide-wg-148-r-1", "description":"\u003cp\u003e14,8 cm Waveguide of high-quality plastic for 25 mm tweeters. The exponential enlargement provides a high sound pressure level gain in the lower high frequency range, which discharges the tweeter. In addition, the focus and the coupling to a woofer are improved, because the sound generation planes move closer together. For fixation of the tweeter on the waveguide 4 pieces M4 screws (length approx. 10 mm) are added. This waveguide is suitable for: G 25 FFL - 8 Ohm; KE 25 SC - 8 Ohm packing unit: 1 pc.\u003c\/p\u003e\n\u003cp\u003eBy using the WG 148 R waveguide with the G 25 FL tweeter in the “\u003ca href=\"https:\/\/impactaudio.co.uk\/products\/visaton-ls-kit-nimrod-price-per-pair?_pos=1\u0026amp;_sid=afd1d4e21\u0026amp;_ss=r\" target=\"_blank\" rel=\"noopener noreferrer\"\u003eNimrod\u003c\/a\u003e” loudspeaker kit design, a greater integration is achieved between tweeter and midrange. This is because the two speakers are better “time aligned” than if they were fitted directly to a flat baffle. The \u003ca href=\"https:\/\/impactaudio.co.uk\/products\/visaton-ls-kit-nimrod-price-per-pair?_pos=1\u0026amp;_sid=afd1d4e21\u0026amp;_ss=r\" target=\"_blank\" rel=\"noopener noreferrer\"\u003eNimrod\u003c\/a\u003e has superb clarity because of this better integration.\u003cbr\u003e\u003c\/p\u003e", "published_at":"2019-03-06T10:01:15", "created_at":"2019-03-06T10:03:34", "vendor":"Impact Audio", "type":"Visaton - Loudspeaker Kits \u0026 Accessories", "tags":["Accessories\/Grilles","Type_Accessories","Visaton","Visaton - Loudspeaker Kits \u0026 Accessories: Accessories","waveguide","WG"], "price":1695, "price_min":1695, "price_max":1695, "price_varies":false, "compare_at_price":null, "compare_at_price_min":0, "compare_at_price_max":0, "compare_at_price_varies":true, "all_variant_ids":[18918658900035], "variants":[{ "id":18918658900035, "product_id":2066130960451, "product_handle":"visaton-waveguide-wg-148-r-1", "title":"Default Title", "option1":"Default Title", "option2":null, "option3":null, "sku":"5176", "requires_shipping":true, "taxable":true, "featured_image":null,"image_id":null, "available":true, "name":"Visaton Waveguide WG 148 R - Default Title", "options":["Default Title"], "price":1695, "weight":0, "compare_at_price":null, "inventory_quantity":-29, "inventory_management":null, "inventory_policy":"deny", "inventory_in_cart":0, "inventory_remaining":-29, "incoming":false, "next_incoming_date":null, "taxable":true, "barcode":null}], "available":true,"images":["\/\/impactaudio.co.uk\/cdn\/shop\/products\/wg148r_a.jpg?v=1551866631","\/\/impactaudio.co.uk\/cdn\/shop\/products\/wg148r_tz.gif?v=1551866643"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/wg148r_a.jpg?v=1551866631", "options":["Title"], "url":"\/products\/visaton-waveguide-wg-148-r-1"}
