Visaton WS 17 E | 4 Ohm 17 cm/6.5ins HiFi woofer

Product Description

-With coated paper cone, elastic rubber surround and inverse dust-cap.-WS 17 E. Art.No.1054, 4 Ohms. 17 cm (6.5ins) HiFi woofer with coated paper cone, elastic rubber surround and inverse dust-cap. Due to the balanced frequency response alos suitable as low-mid range driver for 4-way speaker systems. due to the special basket design espesially suitable as replacement driver for many HiFi speakers.

Rated power 60 W
Maximum power 90 W
Nominal impedance Z 4 Ohm
Frequency response fu–7000 Hz

(fu: Lower cut-off frequency depending on cabinet) .
Mean sound pressure level 88 dB (1 W/1 m)
Opening angle (-6 dB) 47°/4000 Hz
Excursion limit +/−6,5 mm
Resonance frequency fs 45 Hz
Magnetic induction 0,8 T
Magnetic flux 314 µWb
Height of front pole-plate 5 mm
Voice coil diameter 25 mm
Height of winding 12 mm

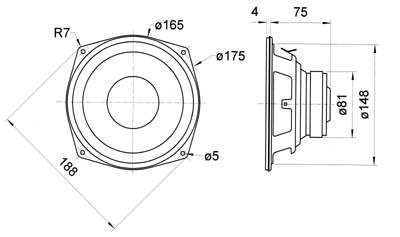

Cutout diameter 150 mm
Net weight 0,97 kg
D.C. resistance Rdc 3,2 Ohm
Mechanical Q factor Qms 2,35
Electrical Q factor Qes 0,9
Total Q factor Qts 0,65
Equivalent volume Vas 22 l
Effective piston area Sd 143 cm²
Dynamically moved mass Mms 16 g
Force factor Bxl 3,9 T m
Inductance of the voice coil L 0,6 mH
Connections 5,2 x 0,8 mm (+)
2,8 x 0,8 mm (−)

ex VAT
£24.86 inc VAT
