Visaton DL 13/2 ES 8 Ohm, 5 Inch, Stainless Steel Ceiling Speaker

DL 13/2 ES · 8 Ω · part 50163 — Product photo

Product photo · Enlarge image

DL 13/2 ES · 8 Ω · part 50163 — Product photo Product photo DL 13/2 ES · 8 Ω · part 50163 — Rear view and connections Rear view and connections DL 13/2 ES · 8 Ω · part 50163 — Dimension drawing Dimension drawing DL 13/2 ES · 8 Ω · part 50163 — Response and impedance Response and impedance

Product photographs and manufacturer drawings. Images are not to scale.

DL 13/2 ES · 8 Ω · part 50163 — Product photo

Product photo

Open original image
Part number: 50163

A ceiling speaker with a two-way coaxial driver and a brushed stainless-steel face for music and speech.

Type
Coaxial ceiling speaker
Impedance
8 Ω
Rated power
30 W
Cut-out
150 mm
Face / finish
Brushed stainless steel
Mean SPL
89 dB (1 W/1 m)
ex VAT
£110.34 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The DL 13/2 ES is a ceiling speaker with a brushed stainless steel face for music and speech. Spring arms hold it in a circular opening, and spring terminals simplify the connection. This 8 Ω version handles 30 W. Its two-way coaxial driver makes it suitable for home and professional music systems.

Typical applications

  • Music and speech in shops and hotels
  • Home and commercial ceiling installations
Full specifications
DL 13/2 ES · 8 Ω
Rated power30 W
Maximum power50 W
Nominal impedance8 Ω
Frequency response (−10 dB)100 - 20000 Hz
Mean sound pressure level89 dB (1 W/1 m)
Resonance frequency150 Hz
Net weight0.61 kg
ConnectionsSpring terminals
Length of cable0.1 m
Cut-out diameter150 mm
Protective systemIP54 — front side in a sealed enclosure
Temperature range-40 to 110 °C
Face / finishBrushed stainless steel
Front diameter165 mm
Depth shown in drawing51.5 mm
Front projection shown2.7 mm
Dimensions and drawings

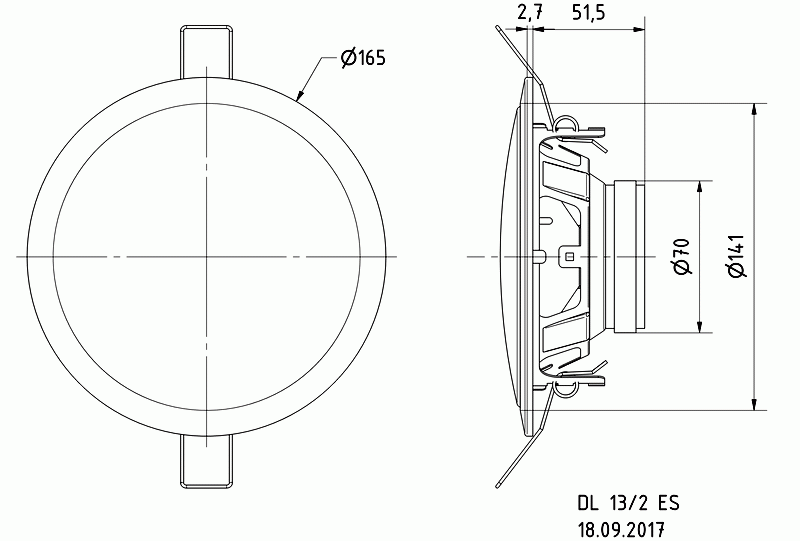

DL 13/2 ES · 8 Ω · part 50163 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Prepare a 150 mm circular cut-out for the 165 mm face. Hold the spring arms back for insertion and let them grip the rear of the ceiling panel. Allow for the 51.5 mm depth shown in the dimension drawing, plus access for the connections and cable. Check the panel can support the complete fitting.

Connect to an amplifier suitable for the 8 Ω load, observing the terminal polarity. Use the spring-terminal connection on the supplied 0.1 m lead. Support the cable so it does not pull on the connection.

IP54 protection applies to the front only when the speaker is built into a sealed enclosure; additional bonding may be needed. The open rear and connections require protection appropriate to the installation.

For concrete or fire-protection ceilings, select a suitable separate housing for the complete installation. The speaker alone does not establish a fire rating for the ceiling.
