Visaton DL 8 ES, 8 Ohm, 3.3 inch - Price Per Speaker

Product Description

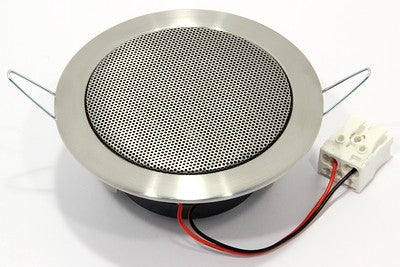

8 cm (3.3") ceiling-mounted speaker made of stainless steel with brushed finish. Suitable for use in all types of hollow ceilings. Easy fitting in round cut-out using spring arms, electrical connection by spring-loaded terminal clips. A compact solution for home and professional use with good sound qualities.

Typical applications
- For fitting in hollow ceilings, for music and speech in shops, at home, hotels etc.
£40.95 ex VAT
£49.14 inc VAT
 More payment options
Maximum quantity available reached.

Product Specifications

TitleValue
Rated power10 W
Maximum power30 W
Nominal impedance Z8 Ohm

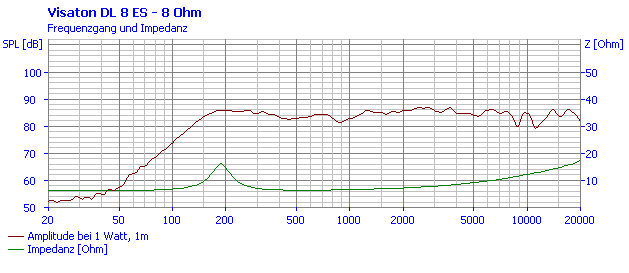

Frequency response100–20000 Hz
Mean sound pressure level84 dB (1 W/1 m)

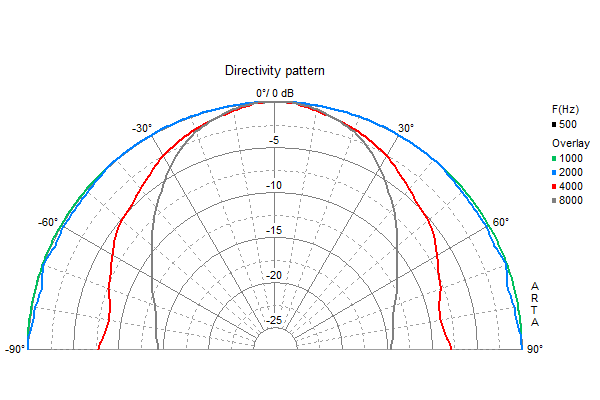

Opening angle (-6 d)112°/4000 Hz
Resonance frequency fs173 Hz
Magnetic induction0.7 T
Magnetic flux130 µWb
Height of front pole-plate3 mm
Voice coil diameter20 mm
Height of winding4 mm
Cutout diameter93 mm
Net weight0.33 kg
D.C. resistance Rdc6.7 Ohm
Mechanical Q factor Qms2.72
Electrical Q factor Qes1.43
Total Q factor Qts0.94
Effective piston area Sd31 cm²
Inductance of the voice coil L0.48 mH
Sound pressure level87 dB (1 W/1 m)@ 2500 Hz
Length of cable0.1 m
Protective systemIP 54 *)
Temperature range−40 ... 110 °C
