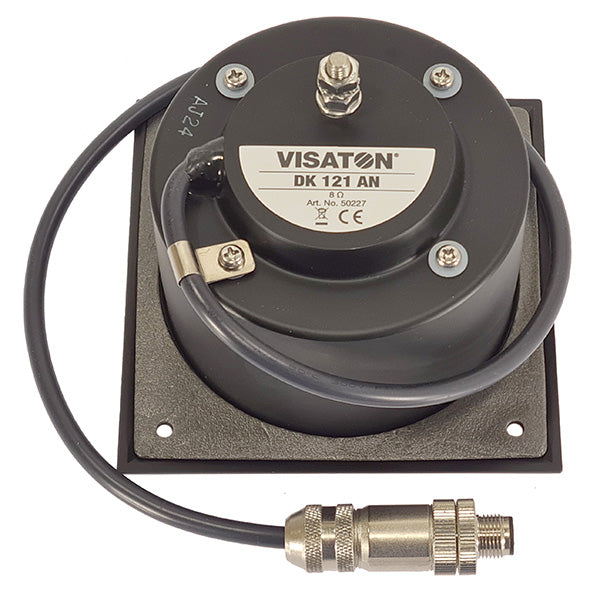

{ "id":15940479091070, "title":"Visaton DK 121 AN 8 Ohm, Built In Horn Speaker","handle":"visaton-dk-121-an-8-re-entrant-horn-speaker-art-no-50227", "description":"\u003cp\u003eA compact 8 Ω horn with an M12 connector for speech and signals in robust installations.\u003c\/p\u003e\u003cp\u003eThe DK 121 AN combines a low-profile black horn with an aluminium rear enclosure and a 0.5 m connection lead. Its 570–4400 Hz response focuses output on speech and alert signals.\u003c\/p\u003e\u003ch3\u003eKey details\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003e\n\u003cstrong\u003eType:\u003c\/strong\u003e Built-in horn speaker\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eConnection:\u003c\/strong\u003e 8 Ω\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003ePower \/ taps:\u003c\/strong\u003e 10 W\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eFrequency range:\u003c\/strong\u003e 570–4400 Hz\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eFormat:\u003c\/strong\u003e 121 mm front\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eFitting \/ feature:\u003c\/strong\u003e M12 D-coded connector\u003c\/li\u003e\n\u003c\/ul\u003e\u003ch3\u003eApplications\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003eTransport speech and alert systems\u003c\/li\u003e\n\u003cli\u003eIndustrial built-in announcements\u003c\/li\u003e\n\u003c\/ul\u003e\u003ch3\u003eTechnical specifications\u003c\/h3\u003e\u003ctable\u003e\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eRated power\u003c\/th\u003e\n\u003ctd\u003e10 W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eNominal impedance\u003c\/th\u003e\n\u003ctd\u003e8 Ω\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eFrequency response\u003c\/th\u003e\n\u003ctd\u003e570 - 4400 Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eMean sound pressure level\u003c\/th\u003e\n\u003ctd\u003e100 dB (1 W\/1 m)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eOpening angle (-6 dB)\u003c\/th\u003e\n\u003ctd\u003e69° \/ 4000 Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eNet weight\u003c\/th\u003e\n\u003ctd\u003e0.65 kg\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eLength of cable\u003c\/th\u003e\n\u003ctd\u003e0.5 m\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eProtective system\u003c\/th\u003e\n\u003ctd\u003eIP66 \/ IP67\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eTemperature range\u003c\/th\u003e\n\u003ctd\u003e-40 to 85 °C\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eConnections\u003c\/th\u003e\n\u003ctd\u003eM12 D-coded; pin 1 positive, pin 3 negative\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\u003c\/table\u003e\u003ch3\u003eInstallation\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003eCheck the current drawing for aperture, fixing positions and rear clearance; preserve the IP66\/IP67 seals.\u003c\/li\u003e\n\u003cli\u003eUse the M12 D-coded connection shown in the drawing: pin 1 positive and pin 3 negative. Confirm the mating connector and an 8 Ω-compatible amplifier.\u003c\/li\u003e\n\u003cli\u003eProvide the required equipotential bond at the M6 stud; maximum tightening torque is 2 Nm. Secure and protect the 0.5 m lead and connector.\u003c\/li\u003e\n\u003c\/ul\u003e\u003ch3\u003eDownloads\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/sites\/default\/files\/dd_product\/DK%20121%20AN_0225_1.pdf\"\u003eManufacturer datasheet (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/en\/products\/drivers\/re-entrant-horn-speakers\/dk-121-8-ohm-0\"\u003eManufacturer product page\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e", "published_at":"2026-09-10T13:32:34", "created_at":"2026-06-02T13:28:43", "vendor":"Visaton", "type":"Visaton - Horn Speakers", "tags":["8 Ω","DK","Driver","Impedance_8 Ohm","Loudspeaker","New Products","speaker","Type_Re-Entrant Horn Speaker","Visaton","Visaton Public Address Speakers : Horn Speakers","Waterproof Speakers"], "price":21047, "price_min":21047, "price_max":21047, "price_varies":false, "compare_at_price":null, "compare_at_price_min":0, "compare_at_price_max":0, "compare_at_price_varies":true, "all_variant_ids":[57499385528702], "variants":[{ "id":57499385528702, "product_id":15940479091070, "product_handle":"visaton-dk-121-an-8-re-entrant-horn-speaker-art-no-50227", "title":"Default Title", "option1":"Default Title", "option2":null, "option3":null, "sku":"50227", "requires_shipping":true, "taxable":true, "featured_image":null,"image_id":null, "available":true, "name":"Visaton DK 121 AN 8 Ohm, Built In Horn Speaker - Default Title", "options":["Default Title"], "price":21047, "weight":650, "compare_at_price":null, "inventory_quantity":0, "inventory_management":"shopify", "inventory_policy":"continue", "inventory_in_cart":0, "inventory_remaining":0, "incoming":false, "next_incoming_date":null, "taxable":true, "barcode":null}], "available":true,"images":["\/\/impactaudio.co.uk\/cdn\/shop\/files\/dk121an_8_250120_1a.jpg?v=1789040894"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/files\/dk121an_8_250120_1a.jpg?v=1789040894", "options":["Title"], "url":"\/products\/visaton-dk-121-an-8-re-entrant-horn-speaker-art-no-50227"}
