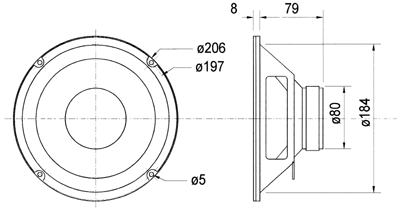

{ "id":15940478763390, "title":"Visaton W 200 8 Ohm, 8 Inch, HiFi Woofer","handle":"visaton-w-200-8-woofer-art-no-9065", "description":"\u003cp\u003eA 20 cm, 8 Ω woofer for conventional multiway loudspeaker cabinets.\u003c\/p\u003e\u003cp\u003eThe W 200 combines a large cone with a 50 W rated input and a 185 mm cut-out. Its lower operating limit depends on the enclosure, so cabinet design and filtering are central to the final bass performance.\u003c\/p\u003e\u003ch3\u003eKey details\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003e\n\u003cstrong\u003eType:\u003c\/strong\u003e Woofer\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eConnection:\u003c\/strong\u003e 8 Ω\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003ePower \/ taps:\u003c\/strong\u003e 50 W\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eFrequency range:\u003c\/strong\u003e Up to 8000 Hz\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eFormat:\u003c\/strong\u003e 20 cm\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eFitting \/ feature:\u003c\/strong\u003e 185 mm cut-out\u003c\/li\u003e\n\u003c\/ul\u003e\u003ch3\u003eApplications\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003eTwo-way and three-way loudspeakers\u003c\/li\u003e\n\u003cli\u003eWoofer replacement with matching cabinet and crossover requirements\u003c\/li\u003e\n\u003c\/ul\u003e\u003ch3\u003eTechnical specifications\u003c\/h3\u003e\u003ctable\u003e\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eRated power\u003c\/th\u003e\n\u003ctd\u003e50 W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eMaximum power\u003c\/th\u003e\n\u003ctd\u003e80 W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eNominal impedance\u003c\/th\u003e\n\u003ctd\u003e8 Ω\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eFrequency response\u003c\/th\u003e\n\u003ctd\u003eCabinet-dependent lower limit to 8000 Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eMean sound pressure level\u003c\/th\u003e\n\u003ctd\u003e88 dB (1 W\/1 m)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eOpening angle (-6 dB)\u003c\/th\u003e\n\u003ctd\u003e49°\/4000 Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eExcursion limit\u003c\/th\u003e\n\u003ctd\u003e+\/−10 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eResonance frequency fs\u003c\/th\u003e\n\u003ctd\u003e46 Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eMagnetic induction\u003c\/th\u003e\n\u003ctd\u003e1.0 T\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eMagnetic flux\u003c\/th\u003e\n\u003ctd\u003e400 µWb\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eHeight of front pole-plate\u003c\/th\u003e\n\u003ctd\u003e5 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eVoice coil diameter\u003c\/th\u003e\n\u003ctd\u003e25 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eHeight of winding\u003c\/th\u003e\n\u003ctd\u003e9 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eCutout diameter\u003c\/th\u003e\n\u003ctd\u003e185 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eNet weight\u003c\/th\u003e\n\u003ctd\u003e1.045 kg\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eD.C. resistance Rdc\u003c\/th\u003e\n\u003ctd\u003e6.8 Ω\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eMechanical Q factor Qms\u003c\/th\u003e\n\u003ctd\u003e3.2\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eElectrical Q factor Qes\u003c\/th\u003e\n\u003ctd\u003e0.79\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eTotal Q factor Qts\u003c\/th\u003e\n\u003ctd\u003e0.63\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eEquivalent volume Vas\u003c\/th\u003e\n\u003ctd\u003e51 l\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eEffective piston area Sd\u003c\/th\u003e\n\u003ctd\u003e207 cm²\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eDynamically moved mass Mms\u003c\/th\u003e\n\u003ctd\u003e14 g\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eForce factor Bxl\u003c\/th\u003e\n\u003ctd\u003e5.9 Tm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eInductance of the voice coil L\u003c\/th\u003e\n\u003ctd\u003e0.9 mH\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\u003c\/table\u003e\u003ch3\u003eInstallation\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003eCheck the 185 mm cut-out, frame fixings and available depth before installation.\u003c\/li\u003e\n\u003cli\u003eMatch the crossover and amplifier to the 8 Ω version. Seal the frame to the baffle and support the leads.\u003c\/li\u003e\n\u003cli\u003eChoose cabinet alignment and protective filtering from suitable design data; confirm the required Thiele\/Small parameters before committing to a new enclosure.\u003c\/li\u003e\n\u003c\/ul\u003e\u003ch3\u003eDownloads\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/sites\/default\/files\/dd_product\/W%20200_9064_9065.pdf\"\u003eManufacturer datasheet (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/en\/products\/drivers\/woofers\/w-200-8-ohm\"\u003eManufacturer product page\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e", "published_at":"2026-09-10T13:32:20", "created_at":"2026-06-02T13:28:37", "vendor":"Visaton", "type":"Woofer", "tags":["8 Ω","Driver","Impedance_8 Ohm","Loudspeaker","New Products","speaker","Type_Woofers","Visaton","Visaton Hifi Drive Units : Woofers","W"], "price":2768, "price_min":2768, "price_max":2768, "price_varies":false, "compare_at_price":null, "compare_at_price_min":0, "compare_at_price_max":0, "compare_at_price_varies":true, "all_variant_ids":[57499385004414], "variants":[{ "id":57499385004414, "product_id":15940478763390, "product_handle":"visaton-w-200-8-woofer-art-no-9065", "title":"Default Title", "option1":"Default Title", "option2":null, "option3":null, "sku":"9065", "requires_shipping":true, "taxable":true, "featured_image":null,"image_id":null, "available":true, "name":"Visaton W 200 8 Ohm, 8 Inch, HiFi Woofer - Default Title", "options":["Default Title"], "price":2768, "weight":1045, "compare_at_price":null, "inventory_quantity":0, "inventory_management":"shopify", "inventory_policy":"continue", "inventory_in_cart":0, "inventory_remaining":0, "incoming":false, "next_incoming_date":null, "taxable":true, "barcode":null}], "available":true,"images":["\/\/impactaudio.co.uk\/cdn\/shop\/files\/w200_ffa1c44a-a76c-433f-b2cb-a7b59773de42.jpg?v=1789040881"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/files\/w200_ffa1c44a-a76c-433f-b2cb-a7b59773de42.jpg?v=1789040881", "options":["Title"], "url":"\/products\/visaton-w-200-8-woofer-art-no-9065"}
