Visaton LC 57, Level Control (L-Pad)

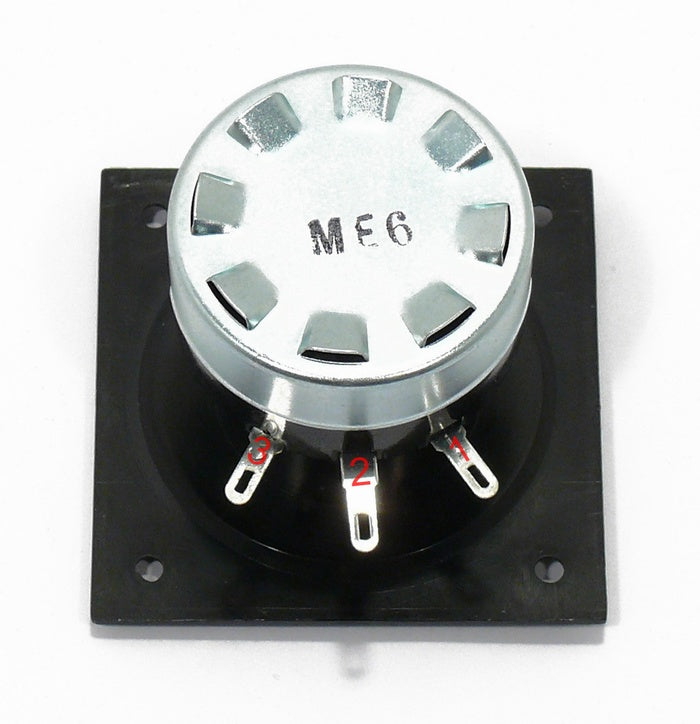

Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The LC 57 handles up to 20 W continuously and has ventilation slots at the rear. The left-hand end stop switches the output off. It fits a 50 mm cut-out; check the current drawing for rear clearance.
Typical applications
- Midrange and tweeter level adjustment
Full specifications
| Continuous power | Up to 20 W |
|---|---|
| Cut-out | Ø50 mm |
| Rear ventilation | Slotted housing |
| Control type | L-pad |
| Left end stop | Off |
| Mounting screws | Included |
Dimensions and drawings
Mounting drawing · Open original image
Installation and cabinet guidance
Follow the manufacturer terminal diagram and confirm that the control suits the driver and crossover circuit.
Leave the rear ventilation slots unobstructed and allow space for the housing and wiring shown in the drawing. Disconnect the amplifier before wiring.
