Visaton ST 77, Speaker Terminal
Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The ST 77 fits a 78 mm circular cut-out and provides two flanges for mounting a suitable PCB behind the terminal.
Typical applications
- DIY loudspeaker cabinet construction
- Replacement terminal where the mounting pattern and clearance match
Full specifications
| Cut-out | Ø78 mm |
|---|---|
| Connection | Binding posts |
| Contact finish | Gold plated |
| Shape | Round |
| PCB mounting | Two flanges |
| Manufacturer reference | 5183 |
Dimensions and drawings

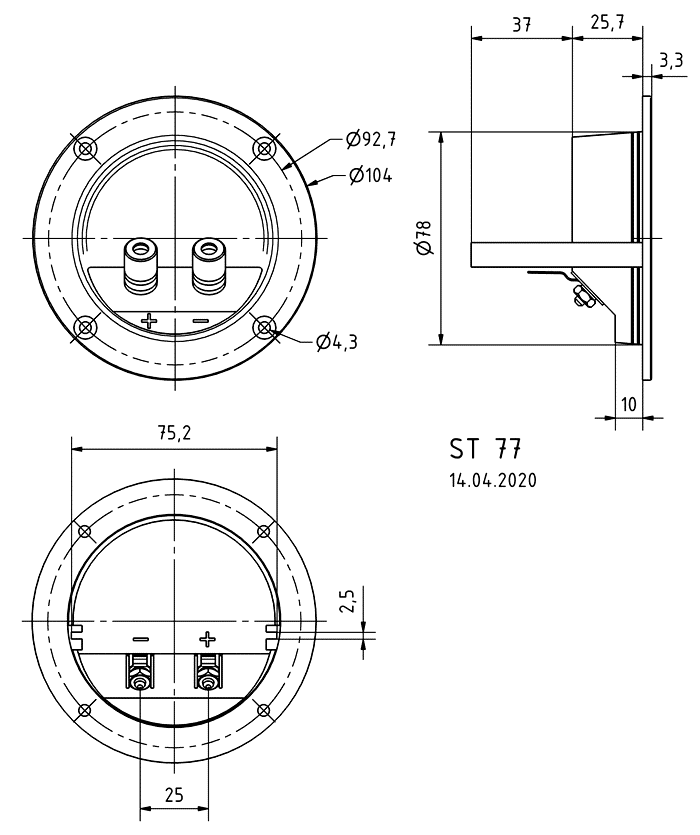

Mounting drawing · Open original image
Installation and cabinet guidance
Check the manufacturer drawing against the cabinet opening and panel thickness before drilling. Keep the terminal board clear of crossover components and moving parts.
Disconnect the amplifier before wiring. Maintain red/black polarity, tighten connections securely and seal the cabinet opening as required by the enclosure design.
