Visaton BS 130 4 Ohm, Structure-Borne Sound Driver
Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The archived BS 130 attaches to a surface that can resonate, such as a vehicle-body panel or furniture base, and requires no enclosed cabinet. Visaton rates it at 50 W, 100 W maximum, with a 4 Ω nominal impedance, 25 Hz resonance frequency and 1.2 kg net weight.
Typical applications
- Bass effects through resonant panels
- Vehicle-body and furniture structures
- Installations where a conventional enclosure is unsuitable
Full specifications
| Rated power | 50 W |
|---|---|
| Maximum power | 100 W |
| Nominal impedance Z | 4 Ω |
| Resonance frequency fs | 25 Hz |
| Net weight | 1.2 kg |

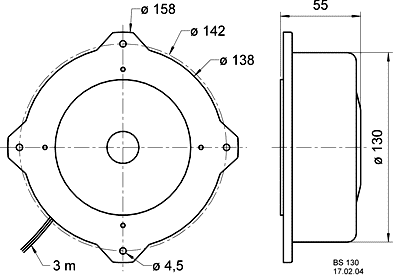

Dimensions and drawings

Dimension drawing · Open original image
Installation and cabinet guidance
Attach the converter securely to a rigid surface that can resonate, following the manufacturer drawing for its mounting points.
Use an amplifier compatible with the stated 4 Ω load and remain within the listed power ratings.
Test the chosen panel at low level first; its material, size and fixing determine the resulting vibration and bass output.
