Visaton HW 3/130 NG 4 Ohm, Crossover Network
Visaton HW 3/130 NG - 4 Ohm series example · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
This crossover divides the signal between the 3-way loudspeaker sections. Its rated power is 120 W. Match the drivers, impedance and acoustic design to the network; the nominal crossover frequency alone does not ensure a suitable match.
Typical applications
- Passive loudspeaker crossover construction
- Component selection against the manufacturer’s published technical data
Full specifications
| Rated power | 120 W |
|---|---|
| Maximum power | 180 W |
| Nominal impedance | 4 Ω |
| Slope | 12 dB / octave |
| Crossover frequency | 300 / 4000 Hz |
Dimensions and drawings

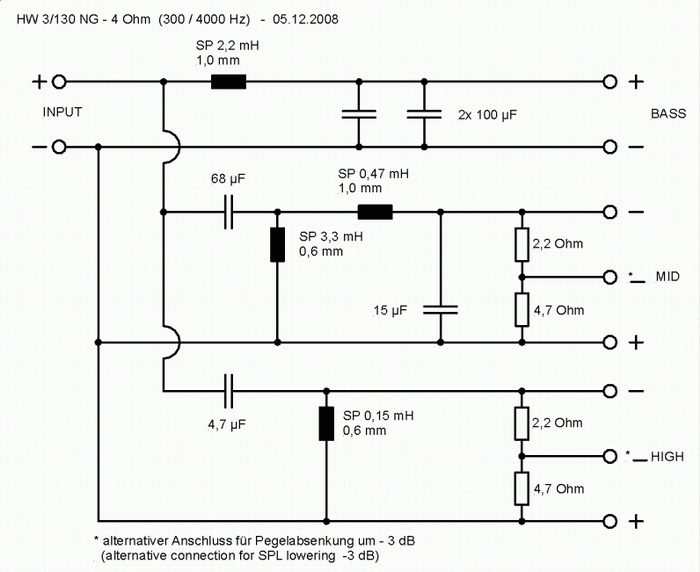

Manufacturer crossover layout · Open original image
Installation and cabinet guidance
Use the manufacturer layout diagram to identify the input and driver connections. Confirm the driver impedances and required crossover points before fitting.
Mount the board securely with clearance for components and wiring. Disconnect the amplifier and maintain the polarity shown in the loudspeaker design.
