Visaton F 8 SC 8 Ohm, 3.3 Inch, Magnetically Shielded Full Range Speaker

Part number: 8028

A magnetically shielded 8 cm full-range driver for multimedia speakers and equipment near screens.

Nominal size
8 cm / 3.3 inch
Impedance
8 Ω
Rated power
20 W
Cut-out
76 mm
Sensitivity
82 dB (1 W/1 m)
Resonance
125 Hz
ex VAT
£15.54 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The F 8 SC is a magnetically shielded 8 cm full-range driver with a balanced response and a moisture-resistant cone, intended for compact multimedia speakers and equipment placed close to a television or monitor. This 8 Ω driver handles 20 W rated power and has 4.8 x 0.8 mm and 2.8 x 0.8 mm blade terminals.

Typical applications

  • Multimedia systems
  • Video monitoring screens
  • TVs
  • Computer terminals
Full specifications
F 8 SC · 8 Ω
Rated power20 W
Maximum power30 W
Nominal impedance8 Ω
Frequency response (−10 dB)80–15000 Hz
Mean sound pressure level82 dB (1 W/1 m)
Opening angle (-6 dB)180°/4000 Hz
Excursion limit±2.5 mm
Resonance frequency fs125 Hz
Magnetic induction0.8 T
Magnetic flux150 µWb
Height of front pole-plate3 mm
Voice coil diameter20 mm
Height of winding4.5 mm
Cut-out76 mm
Net weight0.25 kg
D.C. resistance Rdc7.9 Ω
Mechanical Q factor Qms2.94
Electrical Q factor Qes1.29
Total Q factor Qts0.9
Equivalent volume Vas1.0 l
Effective piston area Sd30 cm²
Dynamically moved mass Mms2 g
Force factor Bxl2.2 Tm
Inductance of the voice coil L0.3 mH
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Temperature range–25 to 70 °C

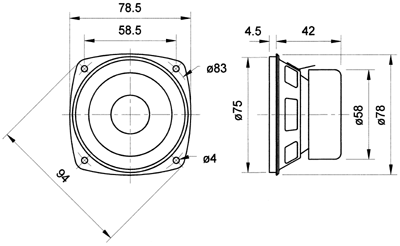

Dimensions and drawings
F 8 SC · 8 Ω · part 8028 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for a 76 mm panel opening and a 78.5 mm square frame with four fixing holes. Leave about 47 mm behind the panel for the shielded magnet assembly, terminals and wiring.

Use push-on connectors that fit the 4.8 x 0.8 mm positive and 2.8 x 0.8 mm negative blade terminals, observe polarity and use an amplifier suitable for the 8 Ω load.

A matching 8 cm protective grille is available as an accessory; check its fixing pattern against the frame before drilling.
