Visaton FRS 5 X 8 Ohm, 2 Inch, Full Range Miniature Speaker
Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The FRS 5 X has a slim black basket with two fixing lugs, making it useful in narrow columns and small equipment panels. It uses solder connections; the FRS 5 XTS provides blade terminals and a foam gasket.
Typical applications
- Narrow speaker columns
- Equipment monitoring
- Small music systems
- Model projects
Full specifications
| Rated power | 5 W |
|---|---|
| Maximum power | 8 W |
| Nominal impedance | 8 Ω |

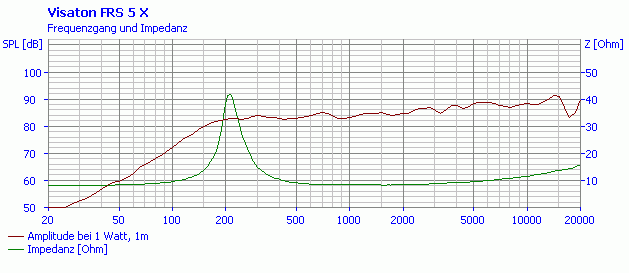

| Frequency response (−10 dB) | 120–20000 Hz |
| Mean sound pressure level | 86 dB (1 W/1 m) |
| Opening angle (-6 dB) | 180°/4000 Hz |
| Excursion limit | ± 2 mm |
| Resonance frequency fs | 190 Hz |
| Height of front pole-plate | 2.5 mm |
| Voice coil diameter | 14 mm |
| Height of winding | 3 mm |
| Cut-out | 46 mm |
| Net weight | 0.14 kg |
| D.C. resistance Rdc | 7.7 Ω |
| Mechanical Q factor Qms | 3.49 |
| Electrical Q factor Qes | 0.88 |
| Total Q factor Qts | 0.7 |
| Equivalent volume Vas | 0.23 l |
| Effective piston area Sd | 12.5 cm² |
| Dynamically moved mass Mms | 0.7 g |
| Force factor Bxl | 2.67 Tm |
| Terminals | Solder lugs |
| Temperature range | –25 to 70 °C |

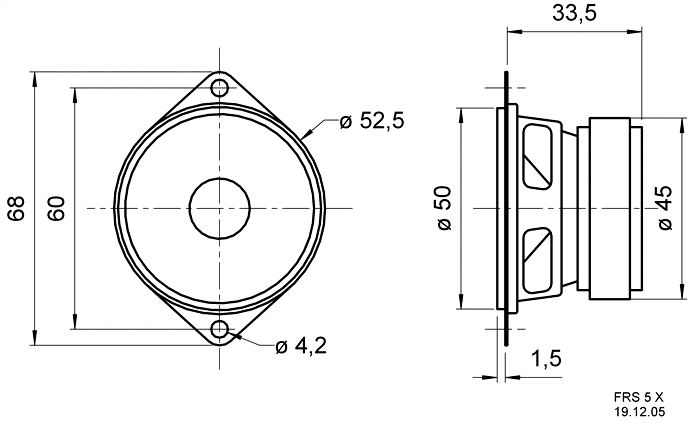

Dimensions and drawings

Dimension drawing · Open original image
Installation and cabinet guidance
Allow for a 46 mm panel opening and two fixing lugs. Provide access to the solder connections and support the wiring so it does not pull on the terminals.
Use an amplifier suitable for the 8 Ω load and observe terminal polarity. For a 100 V line system, connect through a suitable line transformer; do not connect the driver directly to the line.
