Visaton FRWS 5 8 Ohm, 2 Inch, Full Range Speaker

Previous Product | Next Product
FRWS 5 · 8 Ω · part 2210 — Product photo

Product photo · Enlarge image

FRWS 5 · 8 Ω · part 2210 — Product photo Product photo FRWS 5 · 8 Ω · part 2210 — Dimension drawing Dimension drawing FRWS 5 · 8 Ω · part 2210 — Response and impedance Response and impedance FRWS 5 · 8 Ω · part 2210 — Directivity pattern Directivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

FRWS 5 · 8 Ω · part 2210 — Product photo

Product photo

Open original image

Quantity discounts

Part number: 2210

A square miniature driver for narrow columns and electronic equipment.

Nominal size
5 cm / 2 inch
Impedance
8 Ω
Rated power
4 W
Cut-out
45 mm
Sensitivity
84 dB (1 W/1 m)
Resonance
250 Hz
£10.95 Business price, ex VAT £13.14 inc VAT at 20%
Maximum quantity available reached.

Description

The FRWS 5 uses a lightweight cone and soft surround to reproduce speech and music in a small square frame. Its wide dispersion suits narrow speaker columns, while the compact size also works in models and electronic monitoring equipment. This 8 Ω version handles 4 W rated power; the balanced response region starts around 250 Hz.

Typical applications

  • Narrow speaker columns
  • Electronic monitoring
  • Model construction
Full specifications
FRWS 5 · 8 Ω
Rated power4 W
Maximum power10 W
Nominal impedance8 Ω
Frequency response (−10 dB)150–20000 Hz
Mean sound pressure level84 dB (1 W/1 m)
Opening angle (-6 dB)180°/4000 Hz
Excursion limit±2 mm
Resonance frequency fs250 Hz
Magnetic induction0.75 T
Magnetic flux65 µWb
Height of front pole-plate2 mm
Voice coil diameter14 mm
Height of winding2.7 mm
Cut-out45 mm
Net weight0.1 kg
D.C. resistance Rdc6.8 Ω
Mechanical Q factor Qms3.31
Electrical Q factor Qes3.22
Total Q factor Qts1.63
Equivalent volume Vas0.1 l
Effective piston area Sd12 cm²
Dynamically moved mass Mms0.5 g
Force factor Bxl1.4 Tm
Inductance of the voice coil L0.1 mH
TerminalsSolder lugs
Temperature range–25 to 70 °C

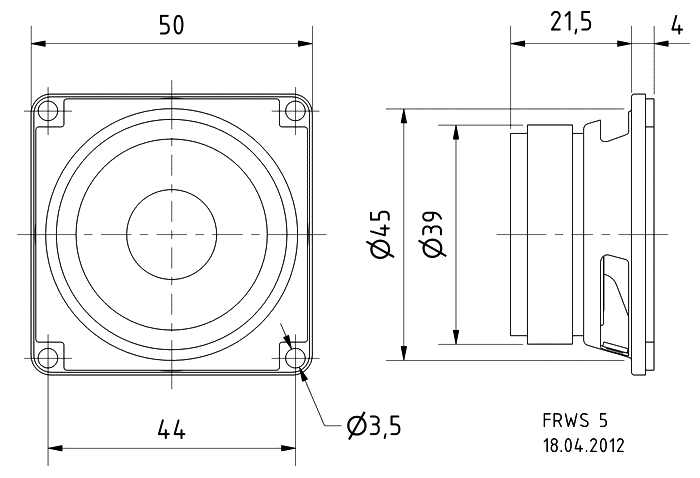

Dimensions and drawings
FRWS 5 · 8 Ω · part 2210 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for a 45 mm opening, 50 mm square frame and 44 mm fixing pitch. Tighten the four fixings evenly without distorting the basket, and leave access to the solder lugs.

Mount on a rigid panel with a continuous seal around the frame to prevent air leaks and rattles. Keep the cone and surround clear of the grille and internal parts.

Use an amplifier suitable for the 8 Ω load and follow the polarity marks. Solder without prolonged heating, insulate the joints and secure the wires so they cannot touch the cone or pull on the lugs.

For a 100 V line system, connect through a correctly rated line transformer; do not connect this low-impedance driver directly to the line.

Use this impedance version’s enclosure parameters when developing a cabinet, and test the response at the intended listening level. Allow for the volume occupied by the driver and keep damping material clear of the cone and terminals.
