Visaton K 10.30 8 Ohm, 0.4 x 1.2 Inch, Miniature Speaker

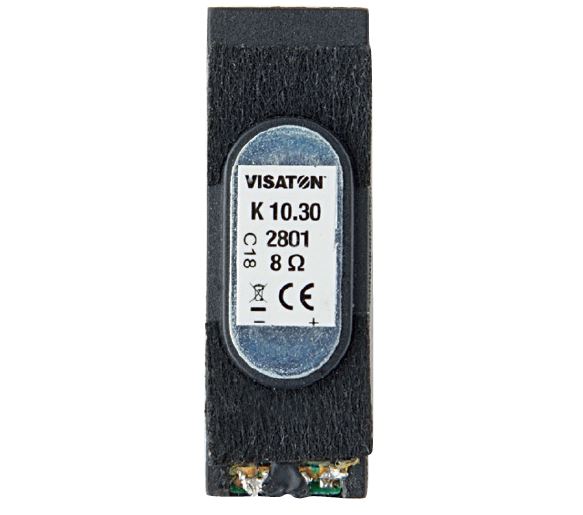

Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The K 10.30 is a slim oval miniature speaker with a plastic basket and a coated fabric cone, made for signal and speech output where there is very little room. The 8 Ω unit handles 0.5 W rated power, weighs 2.5 g and connects through solder pads on the rear.
Typical applications
- Signal and speech output in compact devices
- Very small equipment
Full specifications
| Rated power | 0.5 W |
|---|---|
| Maximum power | 1 W |
| Nominal impedance | 8 Ω |

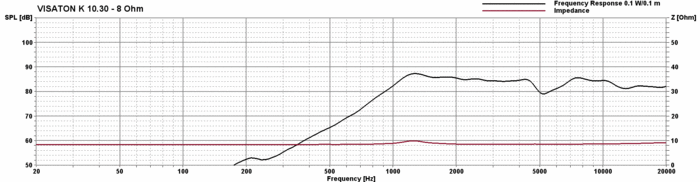

| Frequency response (−10 dB) | 750-20000 Hz |
| Mean sound pressure level | 85 dB (0.1 W/0.1 m) |
| Resonance frequency fs | 1200 Hz |
| Net weight | 2.5 g |
| Terminals | Solder joints |

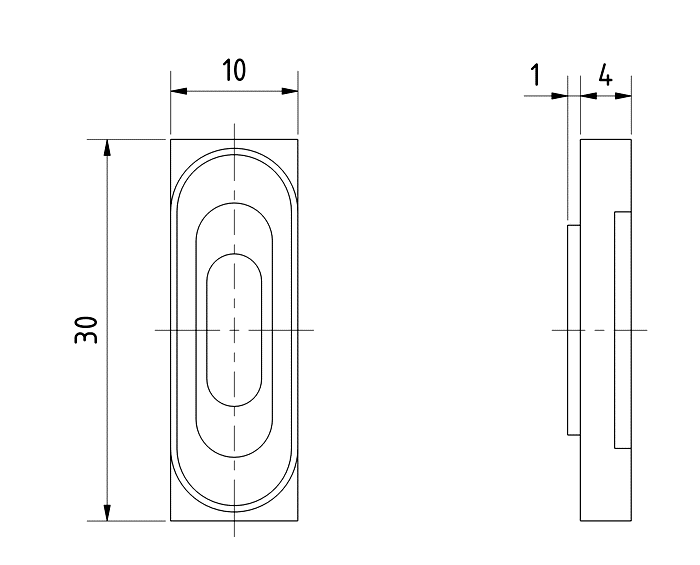

Dimensions and drawings

Dimension drawing · Open original image
Installation and cabinet guidance
Allow for the 10 x 30 mm frame and about 5 mm overall depth, plus clearance for the rear solder pads and wiring. Support the frame evenly and keep adhesive or fixings clear of the cone.
Solder to the rear pads with a fine iron and observe polarity. Drive it from an amplifier or output stage suitable for the 8 Ω load and keep the drive within the 0.5 W rating.
