Visaton K 36 MO 8 Ohm, 1.4 Inch, Miniature Speaker
Product photo · Enlarge image
Product photo

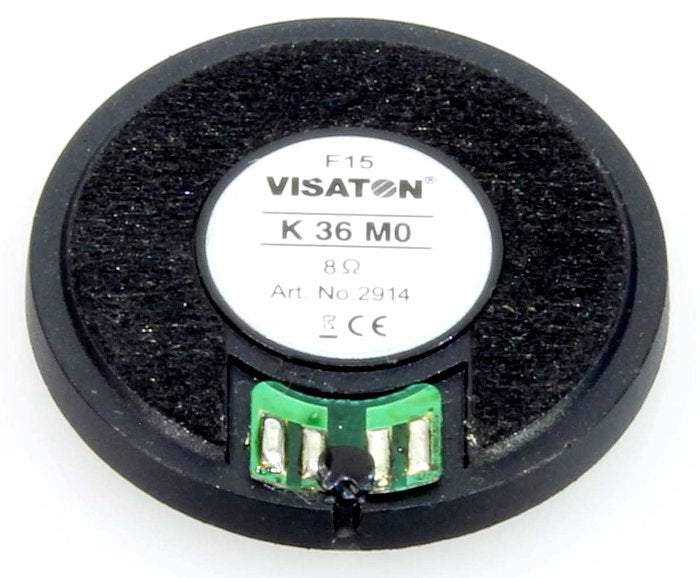

Rear view and connections
Dimension drawing

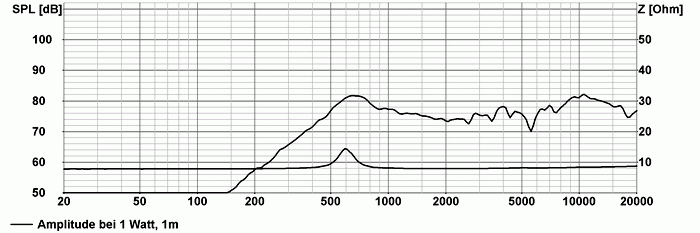

Response and impedance
Directivity pattern
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The K 36 MO is a 3.6 cm miniature speaker with an ABS basket, plastic gasket and Mylar diaphragm, giving a balanced response and clear speech. It is well suited to outdoor equipment and unfavourable ambient conditions such as high humidity. The 8 Ω unit handles 1 W rated power. Its IP65 front-side protection applies when it is built into a sealed enclosure.
Typical applications
- Equipment monitoring
- Outdoor monitoring speakers
- Signal output in machines
Full specifications
| Rated power | 1 W |
|---|---|
| Maximum power | 2 W |
| Nominal impedance | 8 Ω |
| Frequency response (−10 dB) | 300–20000 Hz |
| Mean sound pressure level | 77 dB (1 W/1 m) |
| Opening angle (-6 dB) | 180°/4000 Hz |
| Excursion limit | ±0.5 mm |
| Resonance frequency fs | 550 Hz |
| Height of front pole-plate | 2 mm |
| Voice coil diameter | 10 mm |
| Height of winding | 2 mm |
| Cut-out | 31 mm |
| Net weight | 7 g |
| Terminals | Solder joints |
| Protective system | IP65 — front side in a sealed enclosure |
| Temperature range | −40 to 70 °C |

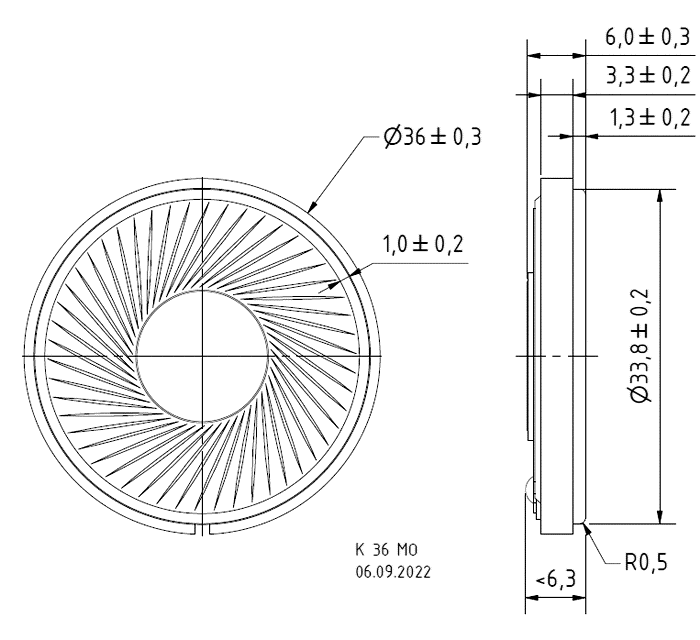

Dimensions and drawings

Dimension drawing · Open original image
Installation and cabinet guidance
Allow for a 31 mm opening and the 36 mm basket, with about 6 mm behind the panel for the body and solder points. Seat the gasket evenly against a flat panel so the front-side protection is effective.
Solder to the rear points, observe polarity and keep the drive within the 1 W rating from an output stage suitable for the 8 Ω load.
