Visaton K 50 FL 16 Ohm, 2 Inch, Miniature Speaker
Product photo · Enlarge image
Product photo

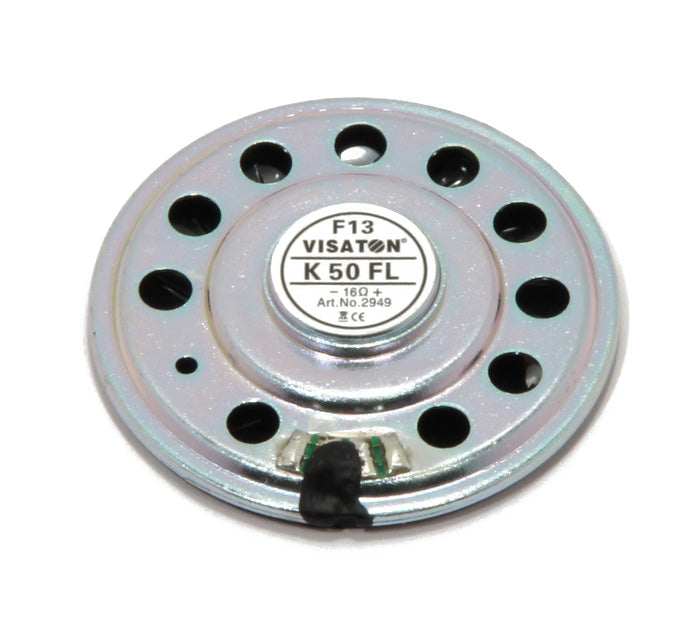

Rear view and connections
Dimension drawing
Response and impedance

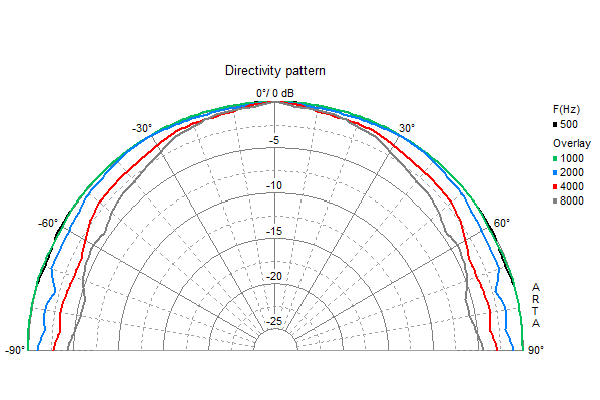

Directivity pattern
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The K 50 FL is a very shallow 5 cm miniature speaker with a plastic diaphragm and good speech reproduction, made for signal output where installation depth is limited, including outdoor equipment and unfavourable ambient conditions. This 16 Ω version handles 1 W rated power and weighs 14 g. Its IP65 front-side protection applies when it is built into a sealed enclosure.
Typical applications
- Signal output in machines
- Outdoor and harsh-environment equipment
Full specifications
| Rated power | 1 W |
|---|---|
| Maximum power | 2 W |
| Nominal impedance | 16 Ω |
| Frequency response (−10 dB) | 250–20000 Hz |
| Mean sound pressure level | 82 dB (1 W/1 m) |
| Resonance frequency fs | 430 Hz |
| Voice coil diameter | 13 mm |
| Height of winding | 2 mm |
| Cut-out | 46 mm |
| Net weight | 0.014 kg |
| Terminals | Solder joints |
| Protective system | IP65 — front side in a sealed enclosure |
| Temperature range | −40 to 70 °C |

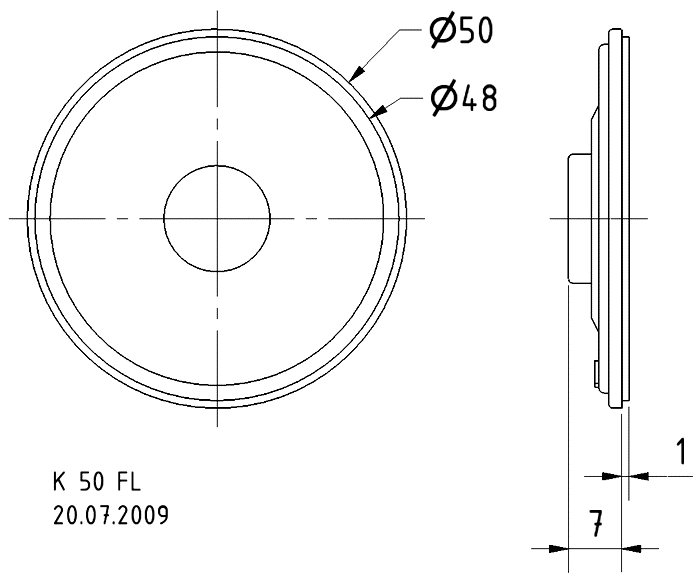

Dimensions and drawings

Dimension drawing · Open original image
Installation and cabinet guidance
Allow for a 46 mm opening and the 50 mm frame, with about 8 mm behind the panel for the body and solder points. Seal the rim to the panel so the front-side protection is effective.
Solder to the rear points and observe polarity. Match the 16 Ω impedance to the output stage and keep the drive within the 1 W rating.
