Visaton W 130 S 4 Ohm, 5 Inch, HiFi Woofer

Previous Product | Next Product
W 130 S · 4 Ω · part 9022 — Product photo

Product photo · Enlarge image

W 130 S · 4 Ω · part 9022 — Product photo Product photo W 130 S · 4 Ω · part 9022 — Dimension drawing Dimension drawing W 130 S · 4 Ω · part 9022 — Response and impedance Response and impedance W 130 S · 4 Ω · part 9022 — Directivity pattern Directivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

W 130 S · 4 Ω · part 9022 — Product photo

Product photo

Open original image

Quantity discounts

Part number: 9022

A 13 cm bass-midrange driver for use as a woofer or the low-midrange of large three-way systems.

Nominal size
13 cm / 5 inch
Impedance
4 Ω
Rated power
50 W
Cut-out
109 mm
Sensitivity
87 dB (1 W/1 m)
Resonance
50 Hz
£30.95 Business price, ex VAT £37.14 inc VAT at 20%
Maximum quantity available reached.

Description

The W 130 S combines a coated paper cone with an elastic rubber surround and a 25 mm voice coil, and its even response lets it serve either as a woofer or as the low-midrange driver of a large three-way design. This 4 Ω version takes 50 W rated power, resonates at 50 Hz and has a d.c. resistance of 3.5 Ω.

Typical applications

  • Two-way hi-fi speakers
  • Three-way hi-fi speakers (bass/midrange)
  • Large multi-way speaker systems
Full specifications
W 130 S · 4 Ω
Rated power50 W
Maximum power80 W
Nominal impedance4 Ω
Frequency response (−10 dB)fu–12000 Hz (fu: lower cut-off depends on the cabinet)
Mean sound pressure level87 dB (1 W/1 m)
Opening angle (-6 dB)113°/4000 Hz
Excursion limit±8 mm
Resonance frequency fs50 Hz
Magnetic induction0.9 T
Magnetic flux283 µWb
Height of front pole-plate4 mm
Voice coil diameter25 mm
Height of winding8.5 mm
Cut-out109 mm
Net weight0.63 kg
D.C. resistance Rdc3.5 Ω
Mechanical Q factor Qms2.54
Electrical Q factor Qes0.55
Total Q factor Qts0.45
Equivalent volume Vas14 l
Effective piston area Sd74 cm²
Dynamically moved mass Mms5.4 g
Force factor Bxl3.6 Tm
Inductance of the voice coil L0.6 mH
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Dimensions and drawings

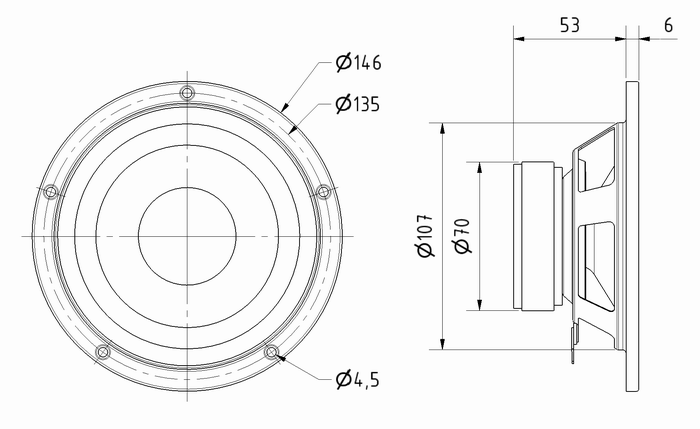

W 130 S · 4 Ω · part 9022 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow a 109 mm cut-out for a frame that measures 146 mm across, with the fixing holes on a 135 mm circle for 4.5 mm screws; mark the hole positions from the driver itself before drilling. Behind the baffle allow about 53 mm of clear depth for the basket and its 70 mm magnet, with room beyond that for the terminals and the wiring.

Fit it to a rigid baffle with a continuous gasket or sealing strip between the frame and the panel, and tighten the fixings evenly and only enough to seal so the frame is not pulled out of shape. Check that the cone and the rubber surround stay clear of the grille and of any internal bracing. Allow for the ±8 mm of cone travel where a grille or fascia sits close in front.

The terminals take 4.8 x 0.8 mm blades on the positive side and 2.8 x 0.8 mm on the negative, so blade size identifies polarity. Use matching push-on connectors, observe polarity, insulate the joints and keep the wiring clear of the moving parts, and choose an amplifier or crossover suited to the 4 Ω load.

Visaton's published enclosure suggestions for this driver: 7 l closed (fc 92 Hz, Qtc 0.8); 20 l bass reflex with one BR 6.8 port cut to 4 cm (fb 44 Hz); 30 l bass reflex with one BR 19.24 port cut to 12 cm (fb 39 Hz).
