Visaton K 40 50 Ohm, 1.6 Inch, Miniature Speaker

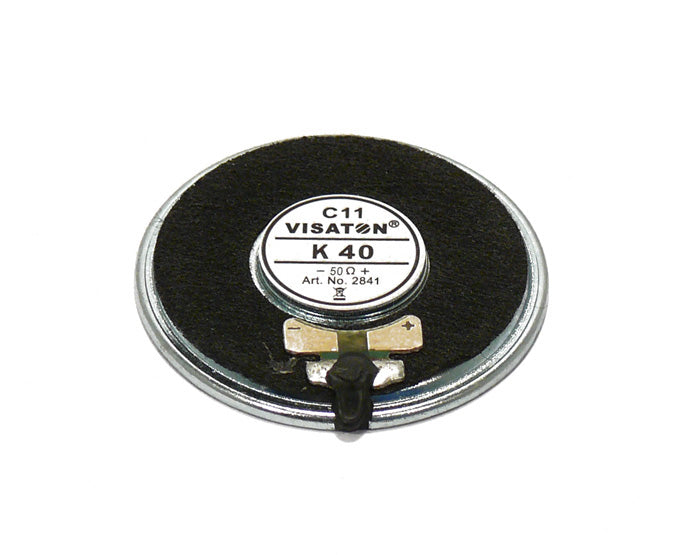

Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The K 40 is a compact 4 cm miniature speaker with a Mylar diaphragm and a metal basket, made for voice and signal output in machines and equipment indoors and outdoors. This 50 Ω version handles 1 W rated power and weighs 10 g. Its IP67 front-side protection applies when it is built into a sealed enclosure.
Typical applications
- Voice and signal output in machines
- Indoor and outdoor equipment
Full specifications
| Rated power | 1 W |
|---|---|
| Maximum power | 2 W |
| Nominal impedance | 50 Ω |

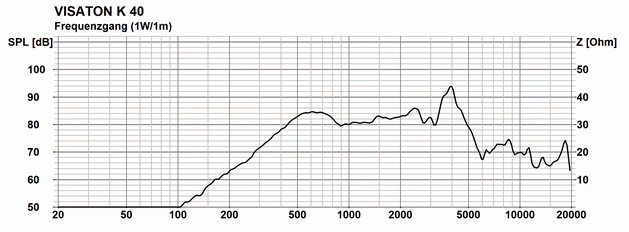

| Frequency response (−10 dB) | 350–6000 Hz |
| Mean sound pressure level | 83 dB (1 W/1 m) |
| Resonance frequency fs | 520 Hz |
| Voice coil diameter | 13.5 mm |
| Height of winding | 1.8 mm |
| Cut-out | 36.5 mm |
| Net weight | 0.01 kg |
| Terminals | Solder joints |
| Protective system | IP67 — front side in a sealed enclosure |
| Temperature range | –25 to 70 °C |
Dimensions and drawings

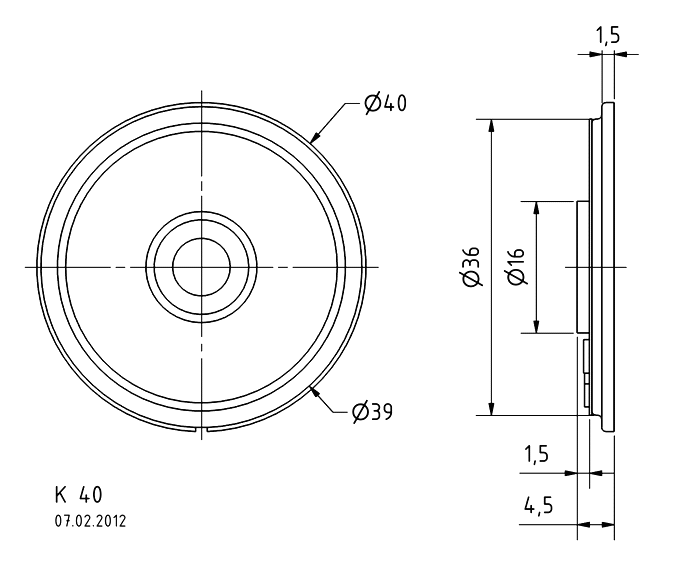

Dimension drawing · Open original image
Installation and cabinet guidance
Allow for a 36.5 mm opening and the 40 mm basket, with about 6 mm behind the panel for the body and solder points. Support the basket evenly; bonding to the panel may be needed for the front-side sealing.
Solder to the rear points and observe polarity. Match the 50 Ω impedance to the output stage and keep the drive within the 1 W rating.
