Visaton SL 87 WPM, 8Ohm, 3.3 Inch, Full Range Waterproof Loudspeaker

Product Description

Waterproof 8cm (3.3ins)full range loudspeakerSL 87 WPM Art.No.2088. 8 Ohm. Waterproof 8cm (3.3ins)full range loudspeaker with a transparent plastic cone and rubber sealng ring. High mean sound pressure. Optimised for voice and signal output. Accessories: Protective grille (Art.No.4639). Protective system(IP)- IP65

Technical Data:
Rated power 20 W
Maximum power 30 W
Nominal impedance Z 8 Ohm

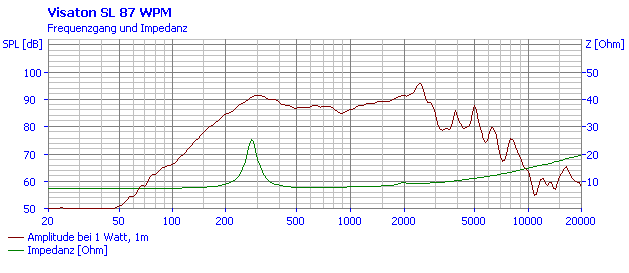

Frequency response 200–5000 Hz
Mean sound pressure level 89 dB (1 W/1 m)

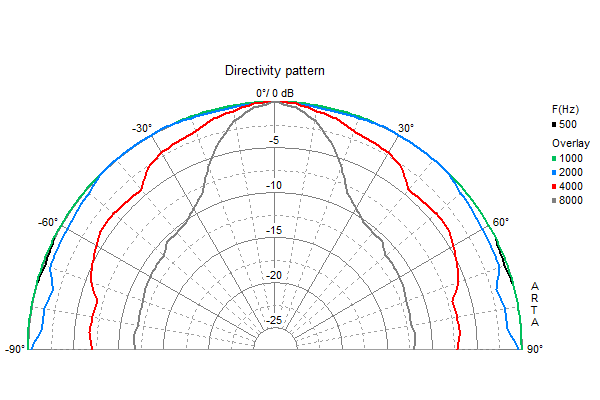

Opening angle (-6 dB) 142°/4000 Hz
Excursion limit +/−1,5 mm
Resonance frequency fs 290 Hz
Magnetic induction 0,87 T
Magnetic flux 165 µWb
Height of front pole-plate 3 mm
Voice coil diameter 20 mm
Height of winding 5 mm
Cutout diameter 80 mm
Net weight 0,24 kg
Protective system IP 65 *)
Temperature range −40 ... 70 °C
ex VAT
£9.80 inc VAT
