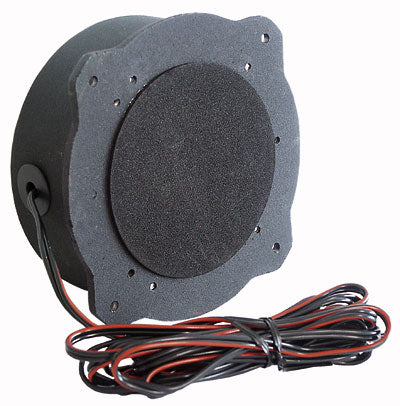

Visaton BS 130 4 Ohm, Structure-Borne Sound Driver

Part number: 4515

A 4 Ω structure-borne bass converter that drives a resonant panel so low-frequency effects can be felt through the structure.

Rated power
50 W
Maximum power
100 W
Nominal impedance Z
4 Ω
Resonance frequency fs
25 Hz
Net weight
1.2 kg
Manufacturer
Visaton
ex VAT
£69.54 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The archived BS 130 attaches to a surface that can resonate, such as a vehicle-body panel or furniture base, and requires no enclosed cabinet. Visaton rates it at 50 W, 100 W maximum, with a 4 Ω nominal impedance, 25 Hz resonance frequency and 1.2 kg net weight.

Typical applications

  • Bass effects through resonant panels
  • Vehicle-body and furniture structures
  • Installations where a conventional enclosure is unsuitable
Full specifications
BS 130 4 Ohm, Structure-Borne Sound Driver
Rated power50 W
Maximum power100 W
Nominal impedance Z4 Ω
Resonance frequency fs25 Hz
Net weight1.2 kg
Dimensions and drawings
Visaton BS 130 - 4 Ω — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Attach the converter securely to a rigid surface that can resonate, following the manufacturer drawing for its mounting points.

Use an amplifier compatible with the stated 4 Ω load and remain within the listed power ratings.

Test the chosen panel at low level first; its material, size and fixing determine the resulting vibration and bass output.

Downloads
