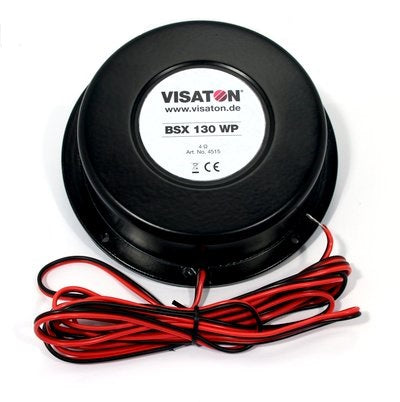

Visaton BSX 130 WP 4 Ohm, Structure-Borne Sound Driver

Part number: 4515

A 4 Ω, IP64 structure-borne bass converter that drives a resonant panel so low-frequency effects can be felt through the structure.

Rated power
50 W
Maximum power
100 W
Nominal impedance Z
4 Ω
Protective system
IP 64
Net weight
1.2 kg
Temperature range
-25 ... 70 °C
ex VAT
£89.94 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The BSX 130 WP attaches to a surface that can resonate, such as a vehicle-body panel or furniture base, and requires no enclosed cabinet. Visaton rates it at 50 W, 100 W maximum, with a 4 Ω nominal impedance, 3 m cable, IP64 protection and a −25 to 70 °C temperature range.

Typical applications

  • Bass effects through resonant panels
  • Vehicle-body and furniture structures
  • Installations where a conventional enclosure is unsuitable
Full specifications
BSX 130 WP 4 Ohm, Structure-Borne Sound Driver
Rated power50 W
Maximum power100 W
Nominal impedance Z4 Ω
Net weight1.2 kg
Length of cable3 m
Protective systemIP 64
Temperature range-25 ... 70 °C
Dimensions and drawings

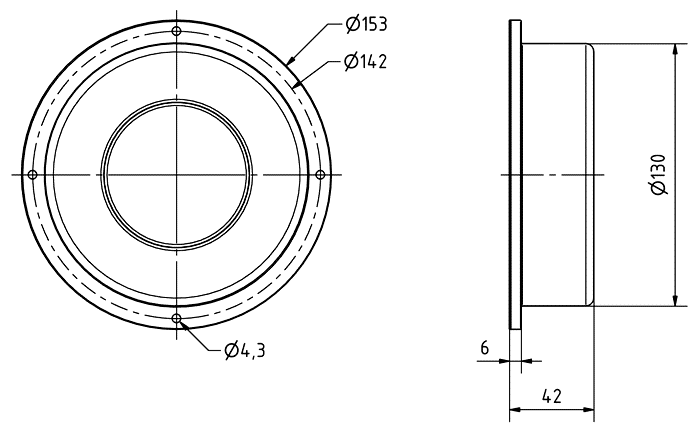

Visaton BSX 130 WP - 4 Ω — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Attach the converter securely to a rigid surface that can resonate, following the manufacturer drawing for its mounting points.

Use an amplifier compatible with the stated 4 Ω load and remain within the listed power ratings.

Test the chosen panel at low level first; its material, size and fixing determine the resulting vibration and bass output.
