Visaton CP 13 4 Ohm, 0.5 Inch, Dome Tweeter

CP 13 · 4 Ω · part 4454 — Product photo

Product photo · Enlarge image

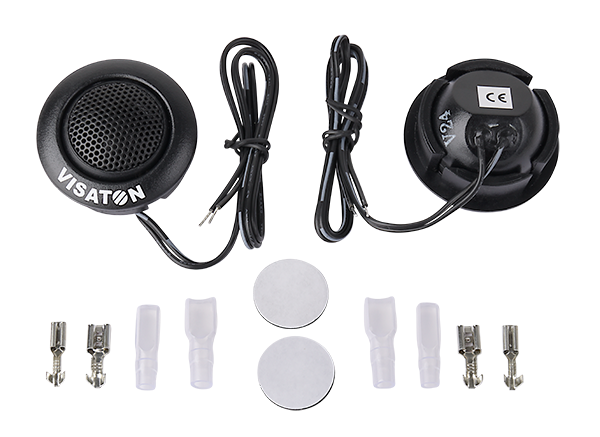

CP 13 · 4 Ω · part 4454 — Product photo Product photo CP 13 · 4 Ω · part 4454 — Tweeters with mounting rings, cables and connectors Tweeters with mounting rings, cables and connectors CP 13 · 4 Ω · part 4454 — Dimension drawing Dimension drawing CP 13 · 4 Ω · part 4454 — Response and impedance Response and impedance CP 13 · 4 Ω · part 4454 — Directivity pattern Directivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

CP 13 · 4 Ω · part 4454 — Product photo

Product photo

Open original image
Part number: 4454

A pair of very compact 13 mm tweeters for low to medium output two- and three-way systems and confined installations.

Nominal size
13 mm / 0.5 inch
Impedance
4 Ω
Rated power
60 W (12 dB/oct. high-pass from 6000 Hz)
Cut-out
33.5 mm
Sensitivity
86 dB (1 W/1 m)
Resonance
2400 Hz
ex VAT
£34.74 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The CP 13 has a polycarbonate cone and a ferrofluid-cooled voice coil, giving a very linear response, crisp highs and excellent dispersion from a small body. Supplied as a pair with mounting rings and connecting cables. The tweeters can be flush or surface mounted. This 4 Ω version takes 60 W with a 12 dB/oct. high-pass from 6000 Hz and gives 86 dB (1 W/1 m).

Typical applications

  • Tweeter for two-way hi-fi speakers
  • Tweeter for three-way hi-fi speakers
  • Additional tweeter (supertweeter) duty
  • Car audio installations
Full specifications
CP 13 · 4 Ω
Rated power60 W (12 dB/oct. high-pass from 6000 Hz)
Maximum power100 W (12 dB/oct. high-pass from 6000 Hz)
Nominal impedance4 Ω
Frequency response (−10 dB)1700–22000 Hz
Mean sound pressure level86 dB (1 W/1 m)
Opening angle (-6 dB)180°/8000 Hz
Resonance frequency fs2400 Hz
Magnetic induction0.8 T
Magnetic flux65 µWb
Voice coil diameter13 mm
Height of winding1.5 mm
Cut-out33.5 mm
Net weight0.033 kg (datasheet: 26 g)
D.C. resistance Rdc3.3 Ω
Inductance of the voice coil L0.4 mH
Cable length39 cm
Magnetic shieldingShielded
Dimensions and drawings

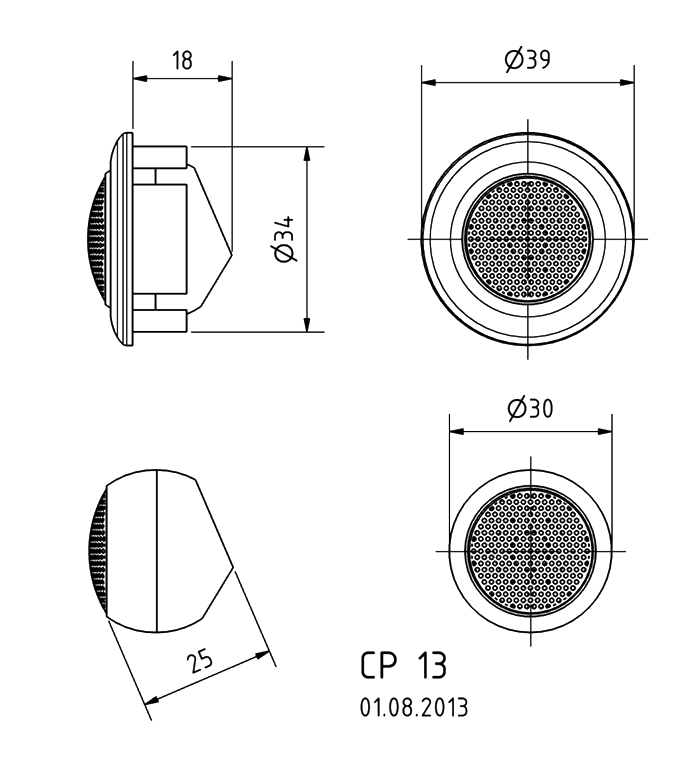

CP 13 · 4 Ω · part 4454 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

For flush mounting cut a 33.5 mm hole: the 39 mm front ring covers the edge and the 34 mm body sits 18 mm deep behind the panel. For surface mounting use the supplied pod, 30 mm in diameter and 25 mm high. The mounting ring and connecting cables are included, so leave room behind the panel for the cable and its connector.

Whether flush or surface mounted, fix it so that it cannot move or rattle and keep the grille clear of obstructions. Connect the supplied cables with the included connectors and observe polarity. Route and secure the cable so it cannot chafe or foul anything that moves. The power ratings apply only with a 12 dB/oct. high-pass filter from 6000 Hz, so feed it through the system crossover or a high-pass filter that gives at least that protection; never connect it directly to a full-range signal. Use an amplifier suitable for the 4 Ω load. The magnet system is shielded.
