Visaton DL 10 8 Ohm, 4 Inch, Ceiling Speaker (Black)

DL 10 · 8 Ω · black · part 50014 — Product photo

Product photo · Enlarge image

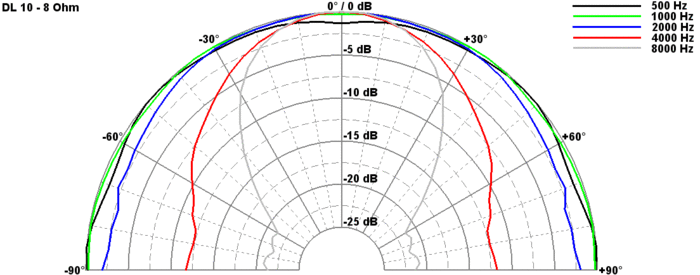

DL 10 · 8 Ω · black · part 50014 — Product photoProduct photo DL 10 · 8 Ω · black · part 50014 — 8 Ω dimension drawing8 Ω dimension drawing DL 10 · 8 Ω · black · part 50014 — Response and impedanceResponse and impedance DL 10 · 8 Ω · black · part 50014 — Directivity patternDirectivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

DL 10 · 8 Ω · black · part 50014 — Product photo

Product photo

Open original image
Part number: 50014

A black 20 W ceiling speaker for music and speech in homes, shops and commercial interiors.

Type
Ceiling speaker
Impedance
8 Ω
Rated power
20 W
Cut-out
110 mm
Face / finish
Black
Mean SPL
86 dB (1 W/1 m)
ex VAT
£39.54 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The DL 10 is a ceiling speaker with a black face for music and speech. Spring arms hold it in a circular opening, and spring terminals simplify the connection. This 8 Ω version handles 20 W.

Typical applications

  • Music and speech in shops and hotels
  • Home and commercial ceiling installations
Full specifications
DL 10 · 8 Ω · black
Rated power20 W
Maximum power30 W
Nominal impedance8 Ω
Frequency response (−10 dB)75–20000 Hz
Mean sound pressure level86 dB (1 W/1 m)
Opening angle (-6 dB)82°/4000 Hz
Excursion limit+/−2.5 mm
Resonance frequency140 Hz
Magnetic induction0.7 T
Magnetic flux130 µWb
Height of front pole-plate4 mm
Voice coil diameter20 mm
Height of winding6 mm
Cut-out diameter110 mm
Net weight0.4 kg
Sound pressure level90 dB (1 W/1 m)@ 2100 Hz
ColourBlack
ConnectionsSpring terminals
Length of cable0.1 m
Protective systemIP54 — front side in a sealed enclosure
Temperature range−40 to 110 °C
Front diameter135 mm
Depth shown in drawing43 mm
Dimensions and drawings

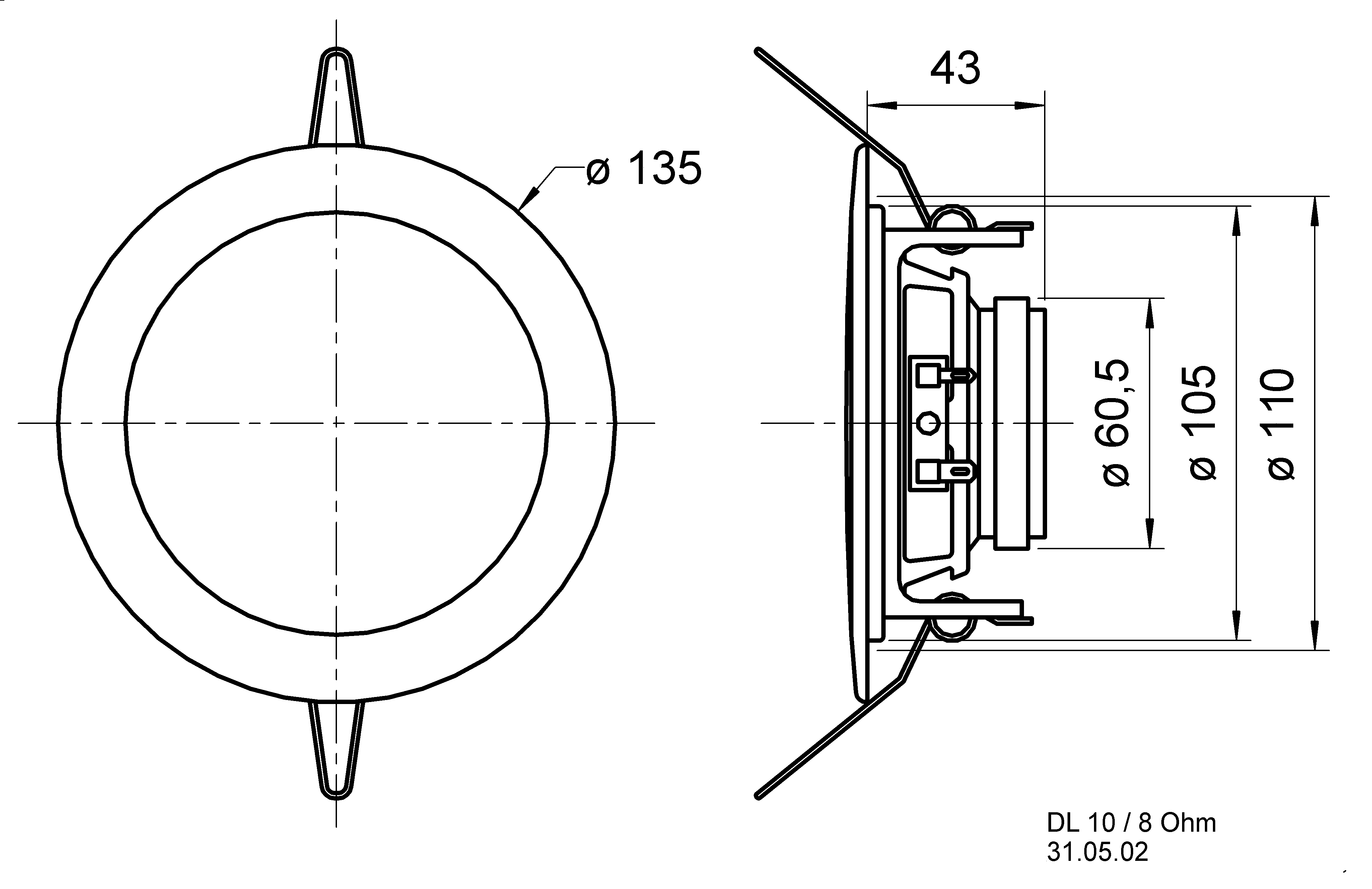

DL 10 · 8 Ω · black · part 50014 — 8 Ω dimension drawing

8 Ω dimension drawing · Open original image

Installation and cabinet guidance

Prepare a 110 mm circular cut-out for the 135 mm face. Hold the spring arms back for insertion and let them grip the rear of the ceiling panel. Allow for the 43 mm depth shown in the dimension drawing, plus access for the connections and cable. Check the panel can support the complete fitting.

Connect to an amplifier suitable for the 8 Ω load, observing the terminal polarity. Use the spring-terminal connection on the supplied 0.1 m lead. Support the cable so it does not pull on the connection.

IP54 protection applies to the front only when the speaker is built into a sealed enclosure; additional bonding may be needed. The open rear and connections require protection appropriate to the installation.

For concrete or fire-protection ceilings, select a suitable separate housing for the complete installation. The speaker alone does not establish a fire rating for the ceiling.
