Visaton DL 5 8 Ohm, 2 Inch, Ceiling Speaker

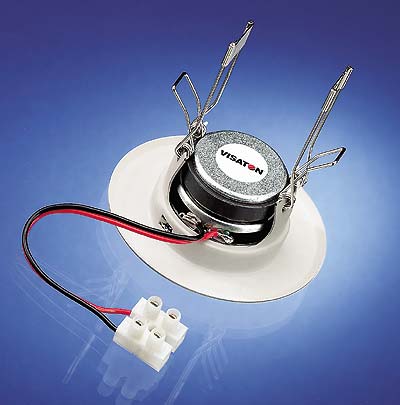

DL 5 · 8 Ω · part 50097 — Product photo

Product photo · Enlarge image

DL 5 · 8 Ω · part 50097 — Product photo Product photo DL 5 · 8 Ω · part 50097 — Rear view and connections Rear view and connections DL 5 · 8 Ω · part 50097 — Dimension drawing Dimension drawing DL 5 · 8 Ω · part 50097 — Response and impedance Response and impedance DL 5 · 8 Ω · part 50097 — Directivity pattern Directivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

DL 5 · 8 Ω · part 50097 — Product photo

Product photo

Open original image
Part number: 50097

A compact ceiling speaker for speech and music where a small, unobtrusive fitting is needed.

Type
Ceiling speaker
Impedance
8 Ω
Rated power
4 W
Cut-out
72 mm
Face / finish
White, RAL 9010
Mean SPL
84 dB (1 W/1 m)
ex VAT
£28.74 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The DL 5 puts a small full-range driver into a white ceiling fitting for compact home and professional sound systems. Its mounting frame works well alongside small lighting fittings. This 8 Ω model handles 4 W; use on a 100 V speaker line requires a separate suitable transformer.

Typical applications

  • Music and speech in shops and hotels
  • Home and commercial ceiling installations
Full specifications
DL 5 · 8 Ω
Rated power4 W
Maximum power10 W
Nominal impedance8 Ω
Frequency response (−10 dB)150–20000 Hz
Mean sound pressure level84 dB (1 W/1 m)
Opening angle (-6 dB)123°/4000 Hz
Resonance frequency300 Hz
Magnetic induction0.69 T
Magnetic flux91 µWb
Voice coil diameter14 mm
Height of winding3.5 mm
Cut-out diameter72 mm
Net weight0.16 kg
Sound pressure level89 dB (1 W/1 m)@ 4018 Hz
ColourWhite, RAL 9010
ConnectionsScrew terminals
Length of cable0.14 m
Protective systemIP54 — front side in a sealed enclosure
Temperature range−40 to 110 °C
Front diameter85.5 mm
Depth shown in drawing31 mm
Front flange thickness3.5 mm
Dimensions and drawings
DL 5 · 8 Ω · part 50097 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Prepare a 72 mm circular cut-out for the 85.5 mm face. Hold the spring arms back for insertion and let them grip the rear of the ceiling panel. Allow for the 31 mm depth shown in the dimension drawing, plus access for the connections and cable. Check the panel can support the complete fitting.

Connect to an amplifier suitable for the 8 Ω load, observing the terminal polarity. Use the screw-terminal block on the supplied 0.14 m lead. Support the cable so it does not pull on the connection.

IP54 protection applies to the front only when the speaker is built into a sealed enclosure; additional bonding may be needed. The open rear and connections require protection appropriate to the installation.

For concrete or fire-protection ceilings, select a suitable separate housing for the complete installation. The speaker alone does not establish a fire rating for the ceiling.
