Visaton DL 8 8 Ohm, 3.3 Inch, Ceiling Speaker (White)

DL 8 · 8 Ω · white · part 50098 — Product photo

Product photo · Enlarge image

DL 8 · 8 Ω · white · part 50098 — Product photo Product photo DL 8 · 8 Ω · white · part 50098 — Dimension drawing Dimension drawing DL 8 · 8 Ω · white · part 50098 — Response and impedance Response and impedance DL 8 · 8 Ω · white · part 50098 — Directivity pattern Directivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

DL 8 · 8 Ω · white · part 50098 — Product photo

Product photo

Open original image
Part number: 50098

A white ceiling speaker with spring-arm fixing for compact music and speech installations.

Type
Ceiling speaker
Impedance
8 Ω
Rated power
10 W
Cut-out
93 mm
Face / finish
White, RAL 9010
Mean SPL
84 dB (1 W/1 m)
ex VAT
£31.14 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The DL 8 is a ceiling speaker with a white, ral 9010 face for music and speech. Spring arms hold it in a circular opening, and spring terminals simplify the connection. This 8 Ω version handles 10 W.

Typical applications

  • Music and speech in shops and hotels
  • Home and commercial ceiling installations
Full specifications
DL 8 · 8 Ω · white
Rated power10 W
Maximum power30 W
Nominal impedance8 Ω
Frequency response (−10 dB)90–20000 Hz
Mean sound pressure level84 dB (1 W/1 m)
Opening angle (-6 dB)112°/4000 Hz
Resonance frequency190 Hz
Magnetic induction0.7 T
Magnetic flux130 µWb
Height of front pole-plate3 mm
Voice coil diameter20 mm
Height of winding4 mm
Cut-out diameter93 mm
Net weight0.33 kg
DC resistance6.7 Ω
Mechanical Q factor Qms2.72
Electrical Q factor Qes1.43
Total Q factor Qts0.94
Effective piston area31 cm²
Voice-coil inductance0.48 mH
Sound pressure level90 dB (1 W/1 m)@ 6100 Hz
ColourWhite, RAL 9010
ConnectionsSpring terminals
Length of cable0.1 m
Protective systemIP54 — front side in a sealed enclosure
Temperature range−40 to 110 °C
Front diameter105 mm
Depth shown in drawing38 mm
Dimensions and drawings

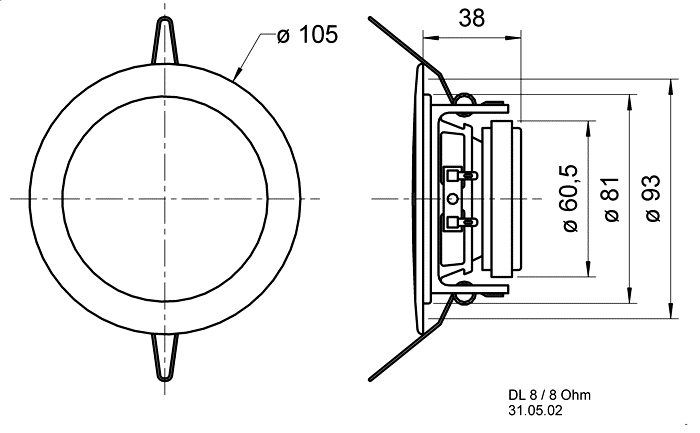

DL 8 · 8 Ω · white · part 50098 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Prepare a 93 mm circular cut-out for the 105 mm face. Hold the spring arms back for insertion and let them grip the rear of the ceiling panel. Allow for the 38 mm depth shown in the dimension drawing, plus access for the connections and cable. Check the panel can support the complete fitting.

Connect to an amplifier suitable for the 8 Ω load, observing the terminal polarity. Use the spring-terminal connection on the supplied 0.1 m lead. Support the cable so it does not pull on the connection.

IP54 protection applies to the front only when the speaker is built into a sealed enclosure; additional bonding may be needed. The open rear and connections require protection appropriate to the installation.

For concrete or fire-protection ceilings, select a suitable separate housing for the complete installation. The speaker alone does not establish a fire rating for the ceiling.
