Visaton DX 10 4 Ohm, 4 Inch, Coaxial Speaker (Pair)

Part number: 4610

A 10 cm (4 inch) two-way coaxial speaker for vehicle audio, supplied as a pair.

Type
Two-way coaxial
Nominal size
10 cm (4 inch)
Impedance
4 Ω per speaker
Rated power
50 W per speaker
Frequency range
80–20000 Hz
Pack
Pair: two speakers
ex VAT
£82.74 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

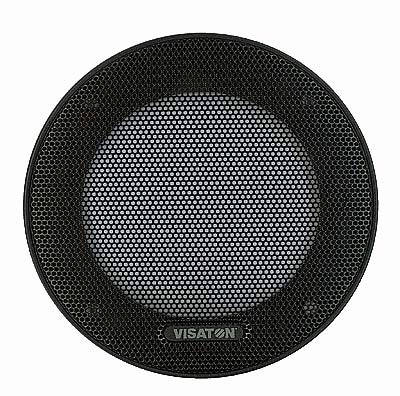

The DX 10 combines a main cone and a polycarbonate dome tweeter in one basket. A polypropylene cone resists water at the diaphragm surface. The pack contains two 4 Ω speakers, protective grilles and mounting accessories. Impedance and power specifications are for each driver; connect each one to a suitable amplifier channel.

Typical applications

  • Vehicle audio and replacement speaker installations
  • Audio systems in motorhomes and similar interiors
Full specifications
DX 10 · 4 Ω · pair
Rated power (per speaker)50 W
Maximum power (per speaker)70 W
Nominal impedance (per speaker)4 Ω
Frequency response (−10 dB)80–20000 Hz
Mean sound pressure level88 dB (1 W/1 m)
Opening angle (-6 dB)98°/4000 Hz
Excursion limit+/−3 mm
Resonance frequency fs110 Hz
Magnetic induction1 T
Magnetic flux310 µWb
Height of front pole-plate4 mm
Voice coil diameter25 mm/14 mm
Height of winding6 mm
Cutout diameter91 mm
Net weight (per speaker)0.64 kg
D.C. resistance Rdc3.6 Ω
Mechanical Q factor Qms8.17
Electrical Q factor Qes0.92
Total Q factor Qts0.83
Effective piston area Sd50 cm²
Inductance of the voice coil L0.37 mH
Connections4.8 × 0.8 mm (+)/2.8 × 0.8 mm (-)
Temperature range–25 to 70 °C
Rear mounting depth (drawing)47 mm
Sales unitPair (two speakers); grilles and fitting materials included
Dimensions and drawings

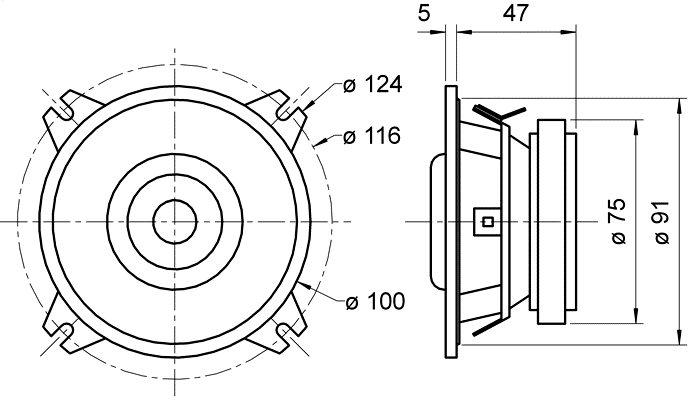

DX 10 · 4 Ω · pair · part 4610 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Check the 91 mm cutout, fixing layout and space for the magnet, terminals and front grille. Nominal speaker size alone does not establish vehicle compatibility.

Connect to a compatible 4 Ω amplifier output using the 4.8 × 0.8 mm (+)/2.8 × 0.8 mm (-) terminals, maintaining polarity. Keep leads clear of window mechanisms and moving trim.

Support the basket evenly without distorting it. Leave the cone and tweeter clear of trim, grille and fixings.

Order quantity one is a pair. Fit each speaker separately and allow clearance for the supplied grille and mounting ring where used.
