Visaton DX 4 x 6 4 Ohm, 4 x 6 Inch, Coaxial Speaker
Product photo · Enlarge image
Product photo
Dimension drawing
Frequency response and impedance

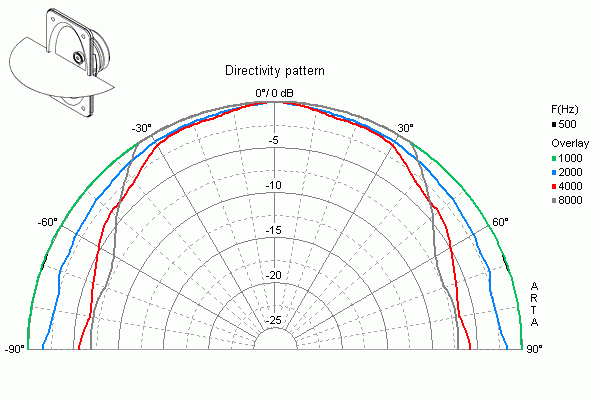

Directivity · horizontal plane

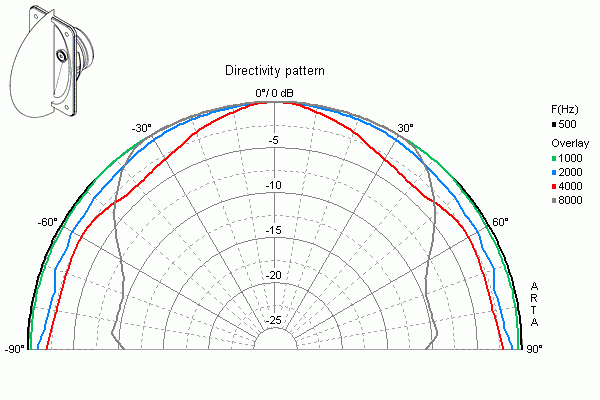

Directivity · vertical plane
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The DX 4x6 combines a main cone and a tweeter with an integrated capacitor crossover in one basket. A polypropylene cone resists water at the diaphragm surface. The oval European-standard basket fits suitable 4 × 6 inch positions. Fitting materials are included; protective grilles are separate accessories.
Typical applications
- Vehicle audio and replacement speaker installations
- Audio systems in motorhomes and similar interiors
Full specifications
| Rated power | 30 W |
|---|---|
| Maximum power | 50 W |
| Nominal impedance | 4 Ω |
| Frequency response (−10 dB) | 65–22000 Hz |
| Mean sound pressure level | 86 dB (1 W/1 m) |
| Opening angle (-6 dB) | 140° horizontal / 180° vertical at 4000 Hz |
| Excursion limit | +/−1.5 mm |
| Resonance frequency fs | 90 Hz |
| Magnetic induction | 1 T |
| Magnetic flux | 190 µWb |
| Height of front pole-plate | 3 mm |
| Voice coil diameter | 20 mm / 14 mm |
| Height of winding | 5 mm |
| Cutout diameter | 88 × 144 mm (oval) |
| Net weight | 0.423 kg |
| Connections | 4.8 × 0.8 mm (+)/2.8 × 0.8 mm (-) |
| Temperature range | –25 to 70 °C |
| Frame dimensions | 97.5 × 153 mm |
| Fixing centres | 73 × 122.5 mm |
| Rear mounting depth (drawing) | 44 mm |
Dimensions and drawings

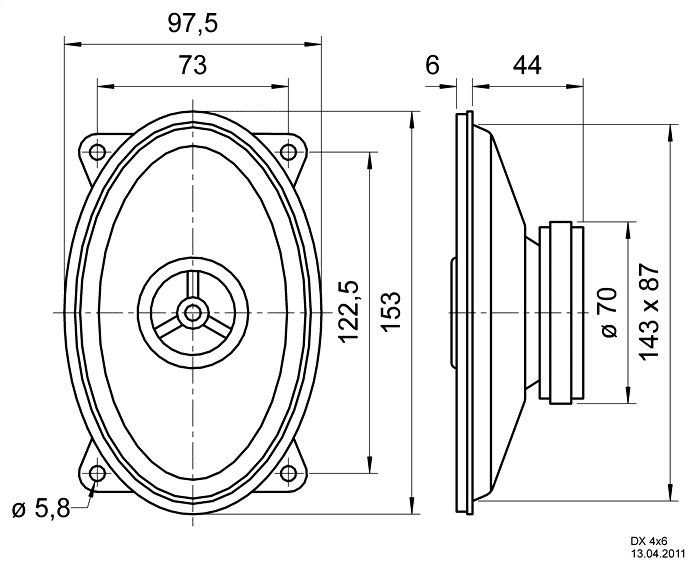

Dimension drawing · Open original image
Installation and cabinet guidance
Check the 88 × 144 mm (oval) cutout, fixing layout and space for the magnet, terminals and front grille. Nominal speaker size alone does not establish vehicle compatibility.
Connect to a compatible 4 Ω amplifier output using the 4.8 × 0.8 mm (+)/2.8 × 0.8 mm (-) terminals, maintaining polarity. Keep leads clear of window mechanisms and moving trim.
Support the basket evenly without distorting it. Leave the cone and tweeter clear of trim, grille and fixings.
