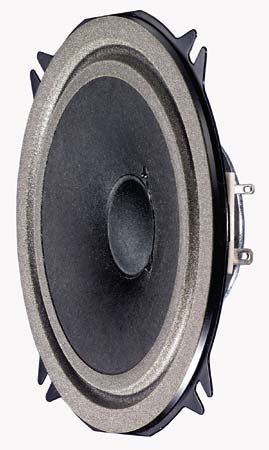

Visaton FR 12 4 Ohm, 5 Inch, Full Range Speaker

Part number: 2060

A shallow 13 cm full-range driver with an inverted surround for installations with limited rear space.

Nominal size
13 cm / 5 inch
Impedance
4 Ω
Rated power
15 W
Cut-out
114 mm
Sensitivity
85 dB (1 W/1 m)
Resonance
110 Hz
ex VAT
£17.94 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The FR 12 combines a shallow profile, inverted surround and 15 W rated power for vehicle audio and electronic equipment. This 4 Ω version is useful where space behind the mounting panel is limited.

Typical applications

  • Vehicle audio installations
  • Electronic instruments
  • Equipment monitoring
Full specifications
FR 12 · 4 Ω
Rated power15 W
Maximum power40 W
Nominal impedance4 Ω
Frequency response (−10 dB)70–18000 Hz
Mean sound pressure level85 dB (1 W/1 m)
Opening angle (-6 dB)79°/4000 Hz
Excursion limit±2.5 mm
Resonance frequency fs110 Hz
Magnetic induction0.8 T
Magnetic flux150 µWb
Height of front pole-plate3 mm
Voice coil diameter20 mm
Height of winding4.5 mm
Cut-out114 mm
Net weight0.284 kg
D.C. resistance Rdc3.4 Ω
Mechanical Q factor Qms5.61
Electrical Q factor Qes2.8
Total Q factor Qts1.87
Equivalent volume Vas8.7 l
Effective piston area Sd87 cm²
Dynamically moved mass Mms3.8 g
Force factor Bxl1.7 Tm
Inductance of the voice coil L0.1 mH
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Temperature range−40 to 70 °C
Dimensions and drawings
FR 12 · 4 Ω · part 2060 — Shared drawing · labelled 8 Ω

Shared drawing · labelled 8 Ω · Open original image

Installation and cabinet guidance

Allow for a 114 mm panel opening and 30.5 mm speaker depth, plus space for the terminals and wiring. Match the fixing positions before drilling. Optional grille: FR 12, part 2062.

Use an amplifier suitable for the 4 Ω load and observe terminal polarity. For a 100 V line system, connect through a suitable line transformer; do not connect the driver directly to the line.
