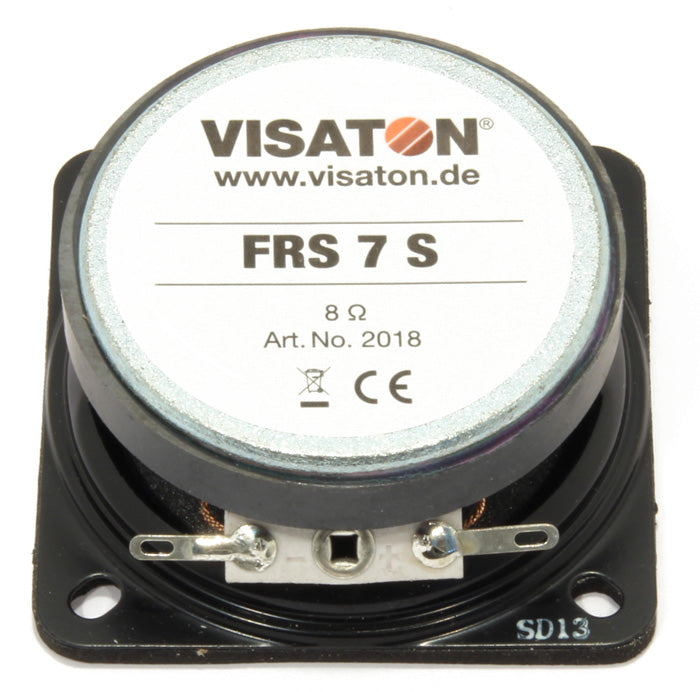

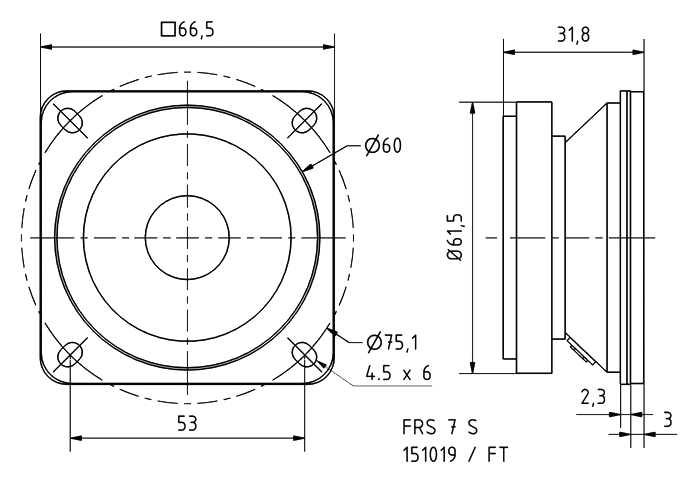

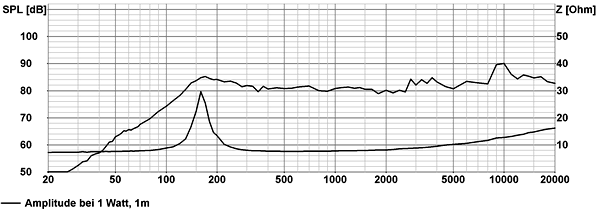

{ "id":15940476141950, "title":"Visaton FRS 7 S 8 Ohm, 2.5 Inch, Full Range Speaker","handle":"visaton-frs-7-s-8-full-range-speaker-art-no-2018", "description":"\u003cp\u003eA small 8 Ω full-range driver for compact music and speech systems.\u003c\/p\u003e\u003cp\u003eThe FRS 7 S uses a compact round cone in a square mounting frame. Its broad response suits built-in audio and small column systems where a modest driver diameter helps keep the enclosure narrow.\u003c\/p\u003e\u003ch3\u003eKey details\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003e\n\u003cstrong\u003eType:\u003c\/strong\u003e Full-range driver\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eConnection:\u003c\/strong\u003e 8 Ω\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003ePower \/ taps:\u003c\/strong\u003e 8 W\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eFrequency range:\u003c\/strong\u003e 120–20000 Hz\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eFormat:\u003c\/strong\u003e 6.5 cm\u003c\/li\u003e\n\u003cli\u003e\n\u003cstrong\u003eFitting \/ feature:\u003c\/strong\u003e 61 mm cut-out\u003c\/li\u003e\n\u003c\/ul\u003e\u003ch3\u003eApplications\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003eBuilt-in music and speech reproduction\u003c\/li\u003e\n\u003cli\u003eSmall column loudspeakers and compact enclosures\u003c\/li\u003e\n\u003c\/ul\u003e\u003ch3\u003eTechnical specifications\u003c\/h3\u003e\u003ctable\u003e\u003ctbody\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eRated power\u003c\/th\u003e\n\u003ctd\u003e8 W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eMaximum power\u003c\/th\u003e\n\u003ctd\u003e15 W\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eNominal impedance\u003c\/th\u003e\n\u003ctd\u003e8 Ω\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eFrequency response\u003c\/th\u003e\n\u003ctd\u003e120–20000 Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eMean sound pressure level\u003c\/th\u003e\n\u003ctd\u003e84 dB (1 W\/1 m)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eOpening angle (-6 dB)\u003c\/th\u003e\n\u003ctd\u003e149°\/4000 Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eExcursion limit\u003c\/th\u003e\n\u003ctd\u003e+\/−1.5 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eResonance frequency fs\u003c\/th\u003e\n\u003ctd\u003e150 Hz\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eMagnetic induction\u003c\/th\u003e\n\u003ctd\u003e1.2 T\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eMagnetic flux\u003c\/th\u003e\n\u003ctd\u003e160 µWb\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eHeight of front pole-plate\u003c\/th\u003e\n\u003ctd\u003e2 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eVoice coil diameter\u003c\/th\u003e\n\u003ctd\u003e14 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eHeight of winding\u003c\/th\u003e\n\u003ctd\u003e5 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eCutout diameter\u003c\/th\u003e\n\u003ctd\u003e61 mm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eNet weight\u003c\/th\u003e\n\u003ctd\u003e0.2 kg\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eD.C. resistance Rdc\u003c\/th\u003e\n\u003ctd\u003e7.2 Ω\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eMechanical Q factor Qms\u003c\/th\u003e\n\u003ctd\u003e5.38\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eElectrical Q factor Qes\u003c\/th\u003e\n\u003ctd\u003e2.01\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eTotal Q factor Qts\u003c\/th\u003e\n\u003ctd\u003e1.46\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eEquivalent volume Vas\u003c\/th\u003e\n\u003ctd\u003e0.9 l\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eEffective piston area Sd\u003c\/th\u003e\n\u003ctd\u003e22 cm²\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eDynamically moved mass Mms\u003c\/th\u003e\n\u003ctd\u003e0.8 g\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eForce factor Bxl\u003c\/th\u003e\n\u003ctd\u003e1.8 Tm\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eInductance of the voice coil L\u003c\/th\u003e\n\u003ctd\u003e0.6 mH\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eConnections\u003c\/th\u003e\n\u003ctd\u003e2.8 x 0.5 mm (+)\/2.8 x 0.5 mm (-)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003cth scope=\"row\"\u003eTemperature range\u003c\/th\u003e\n\u003ctd\u003e−25 to 100 °C\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\u003c\/table\u003e\u003ch3\u003eInstallation\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003eCheck the 61 mm cut-out and fixing pattern against the drawing; allow space for the magnet and leads.\u003c\/li\u003e\n\u003cli\u003eConnect to a suitable 8 Ω amplifier and maintain polarity across multiple drivers. A 100 V line installation requires a correctly rated matching transformer.\u003c\/li\u003e\n\u003cli\u003eSeal the frame to the baffle and use an enclosure appropriate to the required sound level and bass response. Grilles are separate accessories.\u003c\/li\u003e\n\u003c\/ul\u003e\u003ch3\u003eDownloads\u003c\/h3\u003e\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/sites\/default\/files\/dd_product\/FRS%207%20S_2018.pdf\"\u003eManufacturer datasheet (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/en\/products\/drivers\/fullrange-systems\/frs-7-s-8-ohm\"\u003eManufacturer product page\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e", "published_at":"2026-09-10T13:30:24", "created_at":"2026-06-02T13:27:59", "vendor":"Visaton", "type":"Full-range driver", "tags":["8 Ω","Driver","FRS","Impedance_8 Ohm","Loudspeaker","New Products","speaker","Type_Full-Range Speaker","Visaton","Visaton - General Purpose Speakers: Full Range"], "price":1079, "price_min":1079, "price_max":1079, "price_varies":false, "compare_at_price":null, "compare_at_price_min":0, "compare_at_price_max":0, "compare_at_price_varies":true, "all_variant_ids":[57499380973950], "variants":[{ "id":57499380973950, "product_id":15940476141950, "product_handle":"visaton-frs-7-s-8-full-range-speaker-art-no-2018", "title":"Default Title", "option1":"Default Title", "option2":null, "option3":null, "sku":"2018", "requires_shipping":true, "taxable":true, "featured_image":null,"image_id":null, "available":true, "name":"Visaton FRS 7 S 8 Ohm, 2.5 Inch, Full Range Speaker - Default Title", "options":["Default Title"], "price":1079, "weight":200, "compare_at_price":null, "inventory_quantity":0, "inventory_management":"shopify", "inventory_policy":"continue", "inventory_in_cart":0, "inventory_remaining":0, "incoming":false, "next_incoming_date":null, "taxable":true, "barcode":null}], "available":true,"images":["\/\/impactaudio.co.uk\/cdn\/shop\/files\/frs7.jpg?v=1789040806"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/files\/frs7.jpg?v=1789040806", "options":["Title"], "url":"\/products\/visaton-frs-7-s-8-full-range-speaker-art-no-2018"}
