Visaton FX 10 4 Ohm, 4 Inch, Coaxial Speaker

FX 10 · 4 Ω · part 4692 — Product photo

Product photo · Enlarge image

FX 10 · 4 Ω · part 4692 — Product photo Product photo FX 10 · 4 Ω · part 4692 — Reference drawing · see revised datasheet drawing for fitting Reference drawing · see revised datasheet drawing for fitting FX 10 · 4 Ω · part 4692 — Frequency response and impedance Frequency response and impedance FX 10 · 4 Ω · part 4692 — Directivity pattern Directivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

FX 10 · 4 Ω · part 4692 — Product photo

Product photo

Open original image
Part number: 4692

A 10 cm (4 inch) two-way coaxial speaker for vehicle audio.

Type
Two-way coaxial
Nominal size
10 cm (4 inch)
Impedance
4 Ω
Rated power
40 W
Frequency range
70–22000 Hz
Cutout
93 mm
ex VAT
£23.94 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The FX 10 combines a main cone and a tweeter with an integrated capacitor crossover in one basket. A polypropylene cone resists water at the diaphragm surface. Its 93 mm baffle opening and mounting tabs suit compatible vehicle speaker positions. A protective grille is a separate accessory.

Typical applications

  • Vehicle audio and replacement speaker installations
  • Audio systems in motorhomes and similar interiors
Full specifications
FX 10 · 4 Ω
Rated power40 W
Maximum power70 W
Nominal impedance4 Ω
Frequency response (−10 dB)70–22000 Hz
Mean sound pressure level84 dB (1 W/1 m)
Opening angle (-6 dB)88°/4000 Hz
Excursion limit+/−2 mm
Resonance frequency fs110 Hz
Height of front pole-plate3 mm
Voice coil diameter25 mm / 14 mm
Height of winding6 mm
Cutout diameter93 mm
Net weight0.4 kg
Connections4.8 × 0.8 mm (+)/2.8 × 0.8 mm (-)
Temperature range–25 to 70 °C
Dimensions and drawings

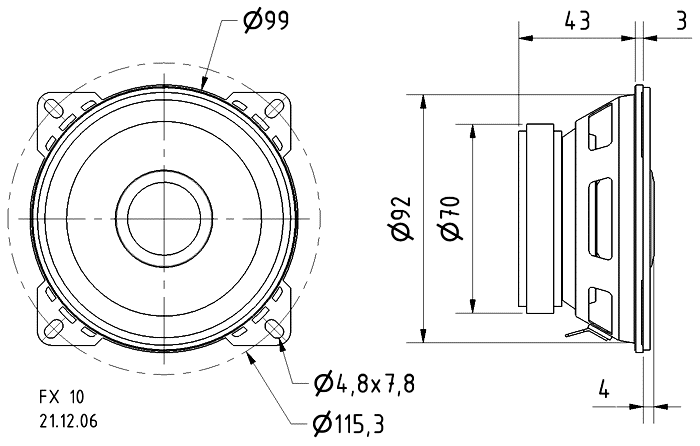

FX 10 · 4 Ω · part 4692 — Reference drawing · see revised datasheet drawing for fitting

Reference drawing · see revised datasheet drawing for fitting · Open original image

Installation and cabinet guidance

Check the 93 mm cutout, fixing layout and space for the magnet, terminals and front grille. Nominal speaker size alone does not establish vehicle compatibility.

Connect to a compatible 4 Ω amplifier output using the 4.8 × 0.8 mm (+)/2.8 × 0.8 mm (-) terminals, maintaining polarity. Keep leads clear of window mechanisms and moving trim.

Support the basket evenly without distorting it. Leave the cone and tweeter clear of trim, grille and fixings.

For precise fitting use the revised drawing in the datasheet; the separate gallery drawing is an older reference.

A waterproof cone does not give the complete speaker an IP rating. Protect the basket, terminals and installation from direct water exposure.
