Visaton FX 13 4 Ohm, 5 Inch, Coaxial Speaker

FX 13 · 4 Ω · part 4570 — Product photo

Product photo · Enlarge image

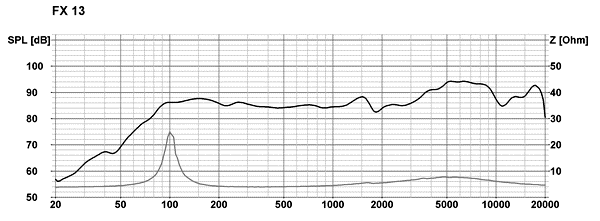

FX 13 · 4 Ω · part 4570 — Product photoProduct photo FX 13 · 4 Ω · part 4570 — Dimension drawingDimension drawing FX 13 · 4 Ω · part 4570 — Frequency response and impedanceFrequency response and impedance FX 13 · 4 Ω · part 4570 — Directivity patternDirectivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

FX 13 · 4 Ω · part 4570 — Product photo

Product photo

Open original image
Part number: 4570

A 13 cm (5 inch) two-way coaxial speaker for vehicle audio.

Type
Two-way coaxial
Nominal size
13 cm (5 inch)
Impedance
4 Ω
Rated power
30 W
Frequency range
60–20000 Hz
Cutout
115 mm
ex VAT
£27.54 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The FX 13 combines a main cone and a tweeter with an integrated capacitor crossover in one basket. A polypropylene cone resists water at the diaphragm surface. Its 115 mm baffle opening and mounting tabs suit compatible vehicle speaker positions. A protective grille is a separate accessory.

Typical applications

  • Vehicle audio and replacement speaker installations
  • Audio systems in motorhomes and similar interiors
Full specifications
FX 13 · 4 Ω
Rated power30 W
Maximum power50 W
Nominal impedance4 Ω
Frequency response (−10 dB)60–20000 Hz
Mean sound pressure level85 dB (1 W/1 m)
Opening angle (-6 dB)72°/4000 Hz
Excursion limit+/−2 mm
Resonance frequency fs100 Hz
Magnetic induction1.0 T
Magnetic flux250 µWb
Height of front pole-plate4 mm
Voice coil diameter20 mm / 14 mm
Height of winding6 mm
Cutout diameter115 mm
Net weight0.51 kg
Connections4.8 × 0.8 mm (+)/2.8 × 0.8 mm (-)
Temperature range–25 to 70 °C
Rear mounting depth (drawing)46 mm
Dimensions and drawings

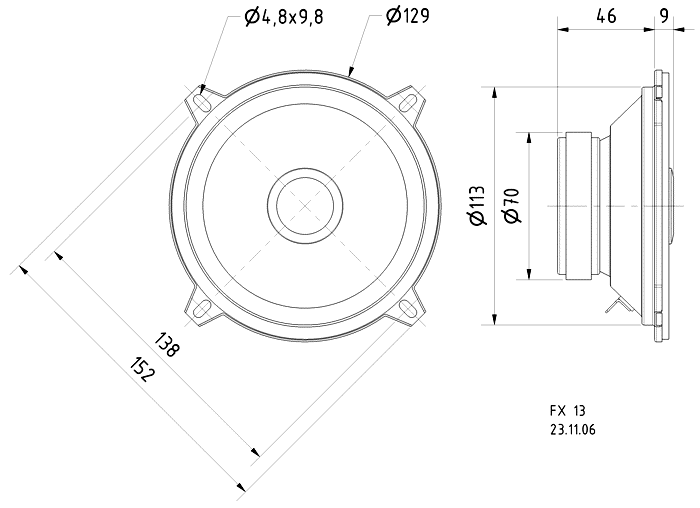

FX 13 · 4 Ω · part 4570 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Check the 115 mm cutout, fixing layout and space for the magnet, terminals and front grille. Nominal speaker size alone does not establish vehicle compatibility.

Connect to a compatible 4 Ω amplifier output using the 4.8 × 0.8 mm (+)/2.8 × 0.8 mm (-) terminals, maintaining polarity. Keep leads clear of window mechanisms and moving trim.

Support the basket evenly without distorting it. Leave the cone and tweeter clear of trim, grille and fixings.

A waterproof cone does not give the complete speaker an IP rating. Protect the basket, terminals and installation from direct water exposure.
