Visaton FX 16 4 Ohm, 6.5 Inch, Coaxial Speaker

FX 16 · 4 Ω · part 4572 — Product photo

Product photo · Enlarge image

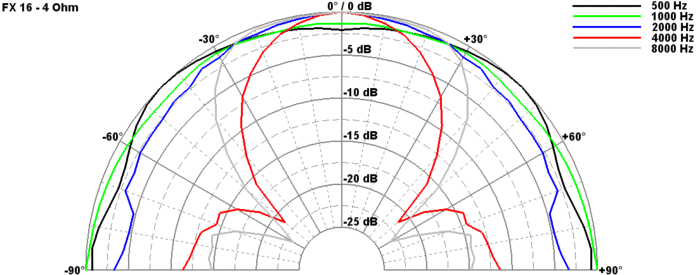

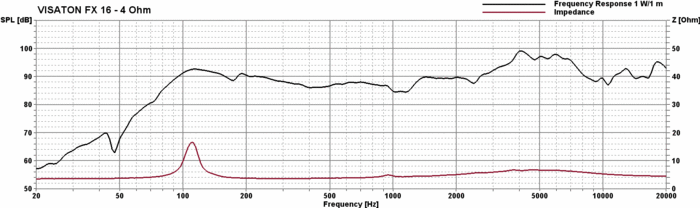

FX 16 · 4 Ω · part 4572 — Product photo Product photo FX 16 · 4 Ω · part 4572 — Dimension drawing Dimension drawing FX 16 · 4 Ω · part 4572 — Frequency response and impedance Frequency response and impedance FX 16 · 4 Ω · part 4572 — Directivity pattern Directivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

FX 16 · 4 Ω · part 4572 — Product photo

Product photo

Open original image
Part number: 4572

A 16 cm (6.5 inch) two-way coaxial speaker for vehicle audio.

Type
Two-way coaxial
Nominal size
16 cm (6.5 inch)
Impedance
4 Ω
Rated power
40 W
Frequency range
60–20000 Hz
Cutout
144 mm
ex VAT
£32.34 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The FX 16 combines a main cone and a tweeter with an integrated capacitor crossover in one basket. A polypropylene cone resists water at the diaphragm surface. Its 144 mm baffle opening and standard round frame suit compatible vehicle speaker positions. A protective grille is a separate accessory.

Typical applications

  • Vehicle audio and replacement speaker installations
  • Audio systems in motorhomes and similar interiors
Full specifications
FX 16 · 4 Ω
Rated power40 W
Maximum power60 W
Nominal impedance4 Ω
Frequency response (−10 dB)60–20000 Hz
Mean sound pressure level86 dB (1 W/1 m)
Opening angle (-6 dB)60°/4000 Hz
Resonance frequency fs105 Hz
Height of front pole-plate3 mm
Voice coil diameter20 mm / 14 mm
Height of winding6.3 mm
Cutout diameter144 mm
Net weight0.6 kg
Connections4.8 × 0.8 mm (+)/2.8 × 0.8 mm (-)
Temperature range–25 to 70 °C
Overall frame diameter165.5 mm
Rear mounting depth (drawing)50 mm
Dimensions and drawings

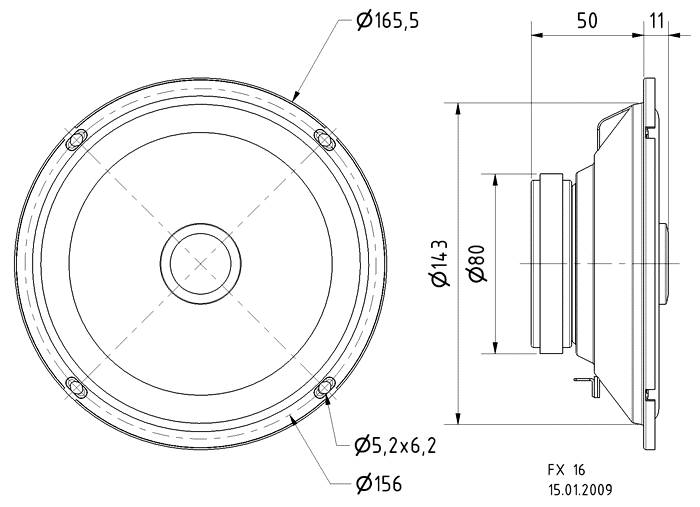

FX 16 · 4 Ω · part 4572 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Check the 144 mm cutout, fixing layout and space for the magnet, terminals and front grille. Nominal speaker size alone does not establish vehicle compatibility.

Connect to a compatible 4 Ω amplifier output using the 4.8 × 0.8 mm (+)/2.8 × 0.8 mm (-) terminals, maintaining polarity. Keep leads clear of window mechanisms and moving trim.

Support the basket evenly without distorting it. Leave the cone and tweeter clear of trim, grille and fixings.

A waterproof cone does not give the complete speaker an IP rating. Protect the basket, terminals and installation from direct water exposure.
