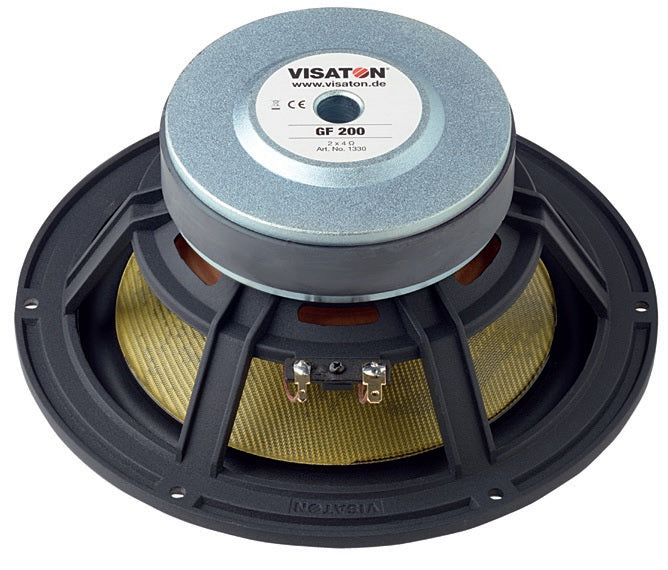

Visaton GF 200 | 2 x 4 Ohm 20 cm/8ins High-End woofer

Product Description

20 cm (8") High-End woofer with black glass fibre cone, solid aluminium die-cast basket and elastic rubber surround. Designed for multi-purpose applications due to 2 x 4 ohms double voice-coil, with excellent properties as 8 ohms drivers in series configuration. The long stroke voice-coil in conjunction with the extended rear pole plate, the vented damper, the vented magnet and the capton voice-coil carrier guarantees long strokes and highest power handling.

Possible connections:

(1) one voice coil not connected

(2) both voice coils in series

(3) both voice coils in parallel

Volume/Principle BR-Channel fb
30 l/bass reflex BR 25.50 40 Hz
50 l/bass reflex BR 25.50 31 Hz
70 l/bass reflex BR 25.50 27 Hz
ex VAT
£163.14 inc VAT
Maximum quantity available reached.

Product Specifications
