Visaton LR Ferrite Coils

Product Description

Ferrite Coil with tinned wire ends. Very high power handling, low loss due to the low internal resistance.

Art. No. Article Technical Data
3601 LR 1,5 mH
Height 36 mm
Diameter 56 mm
Wire diameter 1,32 mm
Internal resistance 0,17 Ohm
Saturation current 13,4 A
3605 LR 3,3 mH
Height 36 mm
Diameter 56 mm
Wire diameter 1,32 mm
Internal resistance 0,25 Ohm
Saturation current 12,1 A
3607 LR 3,9 mH
Height 36 mm
Diameter 56 mm
Wire diameter 1,32 mm
Internal resistance 0,27 Ohm
Saturation current 11,5 A

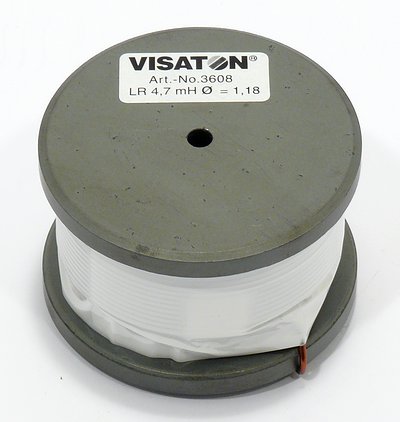

3608 LR 4,7 mH
Height 36 mm
Diameter 56 mm
Wire diameter 1,18 mm
Internal resistance 0,28 Ohm
Saturation current 9,3 A
3610 LR 6,8 mH
Height 36 mm
Diameter 56 mm
Wire diameter 1,18 mm
Internal resistance 0,35 Ohm
Saturation current 7,4 A
3613 LR 10,0 mH
Height 36 mm
Diameter 56 mm
Wire diameter 1,12 mm
Internal resistance 0,55 Ohm
Saturation current 5,2 A
ex VAT
£20.72 inc VAT
