Visaton PX 10 HF 4 Ohm, 4 Inch, Coaxial Speaker

PX 10 HF · 4 Ω · part 4602 — Product photo

Product photo · Enlarge image

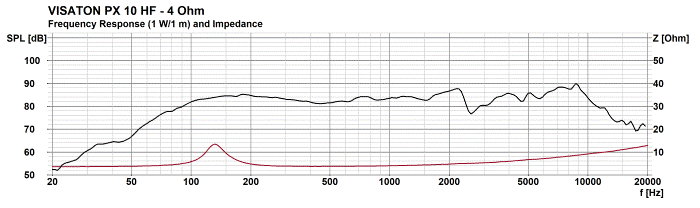

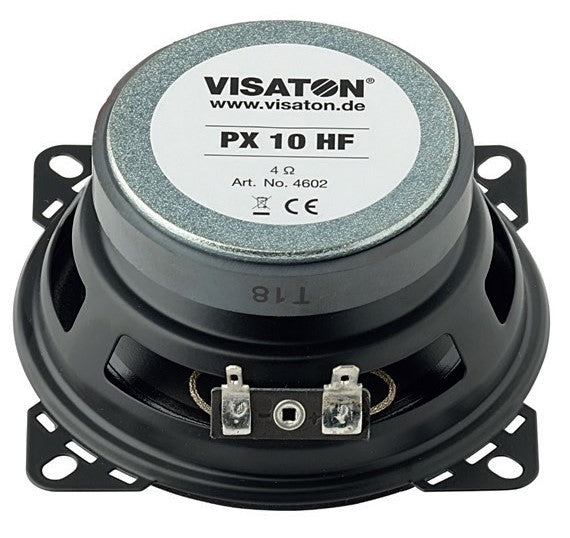

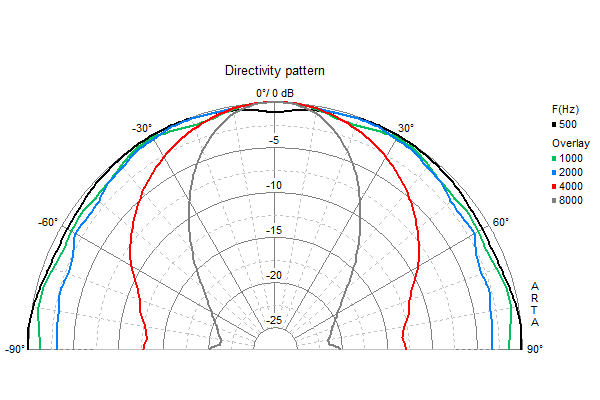

PX 10 HF · 4 Ω · part 4602 — Product photoProduct photo PX 10 HF · 4 Ω · part 4602 — Rear view and connectionsRear view and connections PX 10 HF · 4 Ω · part 4602 — Dimension drawingDimension drawing PX 10 HF · 4 Ω · part 4602 — Frequency response and impedanceFrequency response and impedance PX 10 HF · 4 Ω · part 4602 — Directivity patternDirectivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

PX 10 HF · 4 Ω · part 4602 — Product photo

Product photo

Open original image
Part number: 4602

A 10 cm (4 inch) two-way coaxial speaker for vehicle audio.

Type
Two-way coaxial
Nominal size
10 cm (4 inch)
Impedance
4 Ω
Rated power
20 W
Frequency range
70-13000 Hz
Cutout
92 mm
ex VAT
£19.14 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The PX 10 HF combines a main cone and a piezoelectric tweeter in one basket. A polypropylene cone resists water at the diaphragm surface. Its recessed tweeter leaves a flatter front profile for fitting behind a shallow grille or cover. Check the 92 mm cutout and rear clearance against the drawing.

Typical applications

  • Vehicle audio and replacement speaker installations
  • Audio systems in motorhomes and similar interiors
Full specifications
PX 10 HF · 4 Ω
Rated power20 W
Maximum power30 W
Nominal impedance4 Ω
Frequency response (−10 dB)70-13000 Hz
Mean sound pressure level85 dB (1 W/1 m)
Opening angle (-6 dB)93°/4000 Hz
Resonance frequency fs136 Hz
Height of front pole-plate3 mm
Voice coil diameter20 mm
Height of winding5.2 mm
Cutout diameter92 mm
Net weight0.385 kg
Connections4.8 × 0.8 mm (+)/2.8 × 0.8 mm (-)
Temperature range–25 to 70 °C
Rear mounting depth (drawing)46 mm
Dimensions and drawings

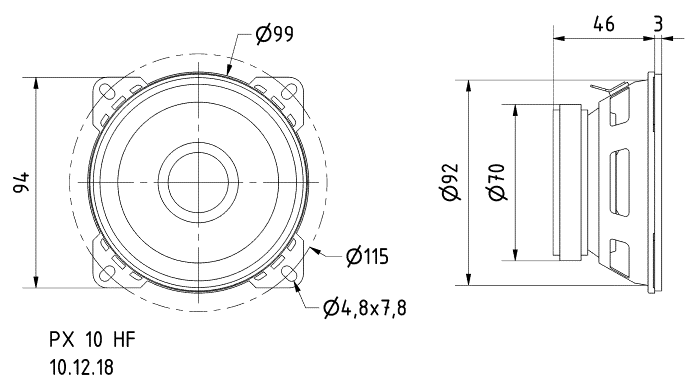

PX 10 HF · 4 Ω · part 4602 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Check the 92 mm cutout, fixing layout and space for the magnet, terminals and front grille. Nominal speaker size alone does not establish vehicle compatibility.

Connect to a compatible 4 Ω amplifier output using the 4.8 × 0.8 mm (+)/2.8 × 0.8 mm (-) terminals, maintaining polarity. Keep leads clear of window mechanisms and moving trim.

Support the basket evenly without distorting it. Leave the cone and tweeter clear of trim, grille and fixings.

The tweeter is recessed, but a flat cover must still leave clearance for cone movement.

A waterproof cone does not give the complete speaker an IP rating. Protect the basket, terminals and installation from direct water exposure.
