Visaton SC 5.9 8 Ohm, 2 x 3.5 Inch, Full Range Oval Speaker

SC 5.9 · 8 Ω · part 8006 — Product photo

Product photo · Enlarge image

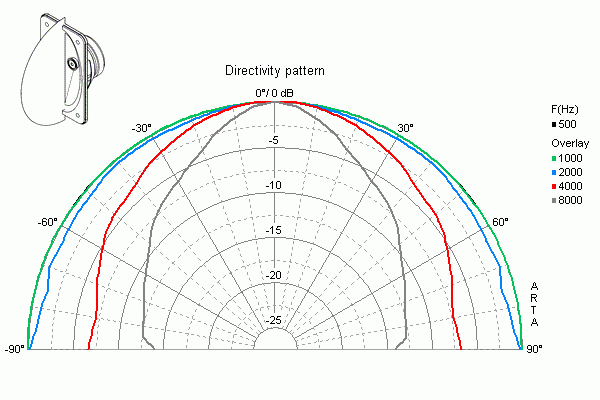

SC 5.9 · 8 Ω · part 8006 — Product photo Product photo SC 5.9 · 8 Ω · part 8006 — Dimension drawing Dimension drawing SC 5.9 · 8 Ω · part 8006 — Response and impedance Response and impedance SC 5.9 · 8 Ω · part 8006 — Directivity pattern — vertical Directivity pattern — vertical SC 5.9 · 8 Ω · part 8006 — Directivity pattern — horizontal Directivity pattern — horizontal

Product photographs and manufacturer drawings. Images are not to scale.

SC 5.9 · 8 Ω · part 8006 — Product photo

Product photo

Open original image
Part number: 8006

A magnetically shielded oval driver for multimedia systems and TV repairs.

Nominal size
5 × 9 cm / 2 × 3.5 inch
Impedance
8 Ω
Rated power
10 W
Cut-out
43 x 82 mm (oval)
Sensitivity
84 dB (1 W/1 m)
Resonance
193 Hz
ex VAT
£10.74 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The SC 5.9 fits speech and music reproduction into a narrow oval frame. Its shielded magnet and 10 W rated power make it useful for multimedia speakers, computer terminals and compatible replacement TV installations. The 8 Ω version has an 84 dB sensitivity and a 43 × 82 mm oval cut-out.

Typical applications

  • Multimedia speakers
  • Compatible TV replacement
  • Computer terminals
Full specifications
SC 5.9 · 8 Ω
Rated power10 W
Maximum power15 W
Nominal impedance8 Ω
Frequency response (−10 dB)130–20000 Hz
Mean sound pressure level84 dB (1 W/1 m)
Opening angle (-6 dB)180°/4000 Hz horizontal; 131°/4000 Hz vertical
Excursion limit±1.5 mm
Resonance frequency fs193 Hz
Magnetic induction0.9 T
Magnetic flux120 µWb
Height of front pole-plate3 mm
Voice coil diameter14 mm
Height of winding4 mm
Cut-out43 x 82 mm (oval)
Net weight0.214 kg
D.C. resistance Rdc7.0 Ω
Mechanical Q factor Qms7.52
Electrical Q factor Qes1.5
Total Q factor Qts1.25
Equivalent volume Vas0.4 l
Effective piston area Sd26.5 cm²
Dynamically moved mass Mms1.5 g
Force factor Bxl2.5 Tm
Inductance of the voice coil L0.4 mH
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Temperature range–25 to 70 °C
Dimensions and drawings

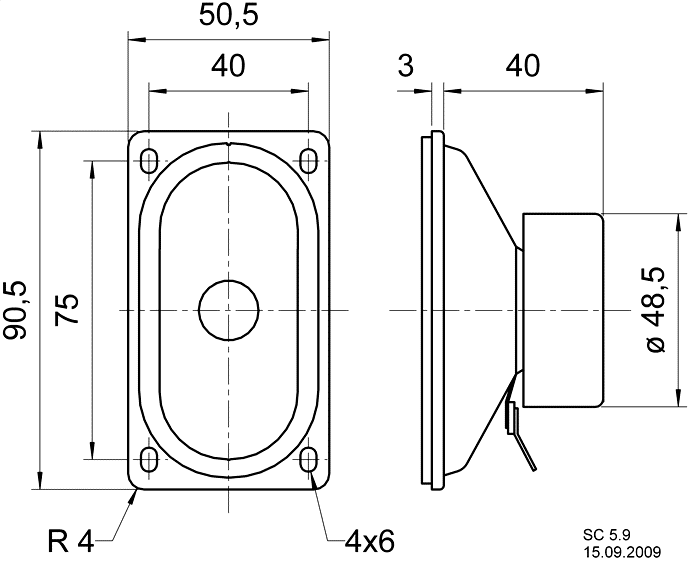

SC 5.9 · 8 Ω · part 8006 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for a 43 × 82 mm oval opening and 50.5 × 90.5 mm frame. Check fixing positions, rear clearance and terminal access against the equipment being repaired. Confirm the original speaker impedance before choosing a replacement.

Mount on a rigid panel with a continuous seal around the frame to prevent air leaks and rattles. Keep the cone and surround clear of the grille and internal parts.

Use an amplifier suitable for the 8 Ω load and follow the polarity marks. Check blade width and thickness before choosing connectors, insulate the connections and secure the wiring clear of the moving parts.

Use this impedance version’s enclosure parameters when developing a cabinet, and test the response at the intended listening level. Allow for the volume occupied by the driver and keep damping material clear of the cone and terminals.
