Visaton Universal Circuit Board UP 35/3

Part number: 5720

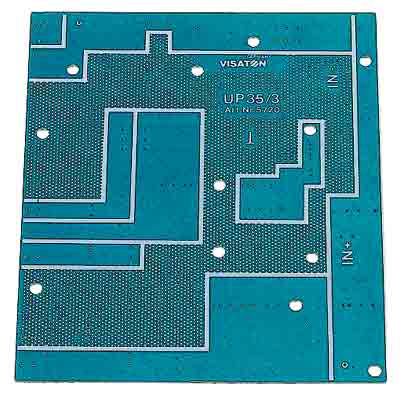

Visaton UP 35/3 is a universal epoxy circuit board for building passive loudspeaker crossovers.

Board size
180 × 146 mm
Thickness
1.6 mm
Material
Epoxy
Crossover layout
2-way to 3-way
Supplied item
Bare circuit board
Manufacturer reference
5720
ex VAT
£13.14 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

A universal epoxy circuit board for constructing a 2-way to 3-way passive crossover. Plan the component placement and connections against the circuit diagram; the electrical components are separate.

Typical applications

  • Passive loudspeaker crossover construction
  • Component selection against the manufacturer’s published technical data
Full specifications
Visaton Universal Circuit Board UP 35/3
Board size180 × 146 mm
Thickness1.6 mm
MaterialEpoxy
Crossover layout2-way to 3-way
Supplied itemBare circuit board
Manufacturer reference5720
Installation and cabinet guidance

Plan component placement and wiring before soldering. Check the board size, mounting clearance and circuit paths against the intended crossover.

Disconnect the amplifier before work and use insulated, secure connections. Keep coils appropriately separated and leave ventilation around power resistors.
