Visaton W 130 X 2 x 4 Ohm, 5 Inch, Woofer

W 130 X · 2 x 4 Ω · part 9059 — Product photo

Product photo · Enlarge image

W 130 X · 2 x 4 Ω · part 9059 — Product photoProduct photo W 130 X · 2 x 4 Ω · part 9059 — Rear view and connectionsRear view and connections W 130 X · 2 x 4 Ω · part 9059 — Dimension drawingDimension drawing W 130 X · 2 x 4 Ω · part 9059 — Response and impedanceResponse and impedance

Product photographs and manufacturer drawings. Images are not to scale.

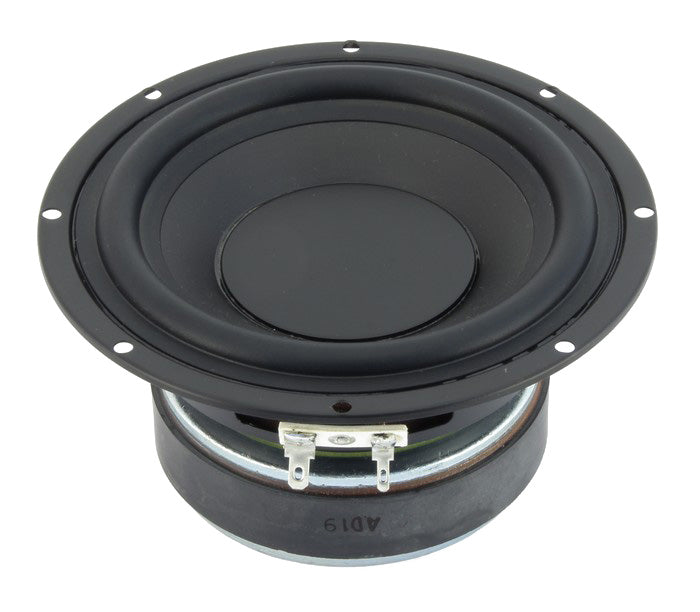

W 130 X · 2 x 4 Ω · part 9059 — Product photo

Product photo

Open original image
Part number: 9059

A 13 cm woofer with a 2 x 4 Ω dual voice coil, made for very compact subwoofers.

Nominal size
13 cm / 5 inch
Impedance
2 x 4 Ω dual voice coil
Rated power
60 W
Cut-out
123 mm
Sensitivity
78 dB (1 W/1 m)
Resonance
40 Hz
ex VAT
£76.74 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The W 130 X pairs a robust polypropylene cone with a lot of cone travel for its size, so this 13 cm driver suits very compact subwoofers. Its 2 x 4 Ω dual voice coil can be wired for 4 Ω, 8 Ω or 2 Ω, and it takes 60 W rated power, with resonance at 40 Hz and a ±11.5 mm excursion limit.

Typical applications

  • Compact subwoofers
  • Subwoofer and satellite systems
Full specifications
W 130 X · 2 x 4 Ω
Rated power60 W
Maximum power90 W
Nominal impedance4 Ω (one coil) / 8 Ω (coils in series) / 2 Ω (coils in parallel)
Frequency response (−10 dB)fu–6000 Hz (fu: lower cut-off depends on the cabinet)
Mean sound pressure level78 dB (1 W/1 m)
Excursion limit±11.5 mm
Maximum linear displacement±5.8 mm (10 % THD)
Resonance frequency fs40 Hz
Magnetic induction0.92 T
Magnetic flux694 µWb
Height of front pole-plate6 mm
Voice coil diameter40 mm
Height of winding12 mm
Cut-out123 mm
Net weight1.5 kg
D.C. resistance Rdc3.8 Ω (one coil) / 7.9 Ω (coils in series) / 2.0 Ω (coils in parallel)
Mechanical Q factor Qms4.27 (one coil) / 4.39 (coils in series) / 4.59 (coils in parallel)
Electrical Q factor Qes0.86 (one coil) / 0.41 (coils in series) / 0.48 (coils in parallel)
Total Q factor Qts0.71 (one coil) / 0.37 (coils in series) / 0.43 (coils in parallel)
Equivalent volume Vas5.10 l (one coil) / 5.64 l (coils in series) / 5.30 l (coils in parallel)
Effective piston area Sd94.2 cm²
Dynamically moved mass Mms37 g
Force factor Bxl6.5 Tm (one coil) / 13.2 Tm (coils in series) / 6.19 Tm (coils in parallel)
Inductance of the voice coil L0.77 mH (one coil) / 2.75 mH (coils in series) / 0.69 mH (coils in parallel)
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Dimensions and drawings
W 130 X · 2 x 4 Ω · part 9059 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow a 123 mm panel opening for a 148.2 mm frame, with 4.3 mm fixing holes on a 141 mm circle. Behind the panel the driver needs about 69.2 mm of clear depth for the basket and the 100 mm magnet, with room beyond that for the terminals and the wiring. It weighs 1.5 kg for a 13 cm driver, so a braced baffle is worth the trouble.

Mount it on a rigid baffle with a continuous gasket or sealing strip between the frame and the panel, and tighten the fixings evenly and only enough to seal so the frame is not distorted. With ±11.5 mm of travel available, check that the cone and the surround stay clear of the grille and of any internal bracing at full excursion. The two voice coils have their own terminals, taking 4.8 x 0.8 mm blades on the positive side and 2.8 x 0.8 mm on the negative: use one coil alone for a 4 Ω load, both coils in series for 8 Ω, or both in parallel for 2 Ω, and make sure the amplifier is rated for the load you choose. Observe polarity on both coils so they pull together; Visaton rates the series 8 Ω connection particularly highly.

Visaton's published enclosure suggestions for this driver: 2.3 l closed (fc 70 Hz, Qtc 0.71); 7.5 l bass reflex with a slot port (fb 38 Hz); confirm the port dimensions and units before construction.
