Visaton FR 10 WP 4 Ohm (Black), 4 Inch, Waterproof Speaker

FR 10 WP · 4 Ω · black · part 2130 — Product photo

Product photo · Enlarge image

FR 10 WP · 4 Ω · black · part 2130 — Product photo Product photo FR 10 WP · 4 Ω · black · part 2130 — Rear view and connections Rear view and connections FR 10 WP · 4 Ω · black · part 2130 — Dimension drawing Dimension drawing FR 10 WP · 4 Ω · black · part 2130 — Response and impedance Response and impedance FR 10 WP · 4 Ω · black · part 2130 — Directivity pattern Directivity pattern FR 10 WP · 4 Ω · black · part 2130 — Dimension drawing (from the manufacturer datasheet) Dimension drawing (from the manufacturer datasheet)

Product photographs and manufacturer drawings. Images are not to scale.

FR 10 WP · 4 Ω · black · part 2130 — Product photo

Product photo

Open original image
Part number: 2130

A black, saltwater-resistant 10 cm full-range driver for outdoor PA, solariums and damp rooms, boats and ships.

Nominal size
10 cm / 4 inch
Impedance
4 Ω
Rated power
20 W
Cut-out
101 mm
Sensitivity
85 dB (1 W/1 m)
Resonance
120 Hz
ex VAT
£22.74 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The FR 10 WP is a saltwater-resistant full-range driver with a moulded plastic cone, plastic basket and grille, corrosion-resistant and waterproof thanks to the encased magnet and silicone-coated leads. Its IP66 protection applies to the front when it is built into a sealed enclosure. This black 4 Ω version handles 20 W, gives 85 dB (1 W/1 m) and is rated for −40 to 80 °C.

Typical applications

  • Outdoor PA systems
  • Solariums and damp rooms
  • Boats, ships and open vehicles
Full specifications
FR 10 WP · 4 Ω · black
Rated power20 W
Maximum power30 W
Nominal impedance4 Ω
Frequency response (−10 dB)80–16000 Hz
Mean sound pressure level85 dB (1 W/1 m)
Opening angle (-6 dB)76°/4000 Hz
Excursion limit±2 mm
Resonance frequency fs120 Hz
Magnetic induction0.85 T
Magnetic flux260 µWb
Height of front pole-plate4 mm
Voice coil diameter20 mm
Height of winding5 mm
Cut-out101 mm
Net weight0.275 kg
D.C. resistance Rdc3.8 Ω
Mechanical Q factor Qms3.13
Electrical Q factor Qes2.14
Total Q factor Qts1.27
Equivalent volume Vas2.1 l
Effective piston area Sd50 cm²
Dynamically moved mass Mms5 g
Force factor Bxl2.75 Tm
Inductance of the voice coil L0.3 mH
ColourBlack
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Protective systemIP66 — front side in a sealed enclosure (the 2023 datasheet also shows IP67 under the same condition)
Temperature range−40 to 80 °C
Environmental attributesSuitable for outdoor applications; seawater-proof
Low-temperature testEN 60068-2-1: −40 °C for 96 hours
Low-temperature requirementsGermanischer Lloyd (requirements for electrical equipment)
PlasticASA (UL 94 HB; UV- and weather-resistant)
Ball resistanceBall-resistant
Dimensions and drawings

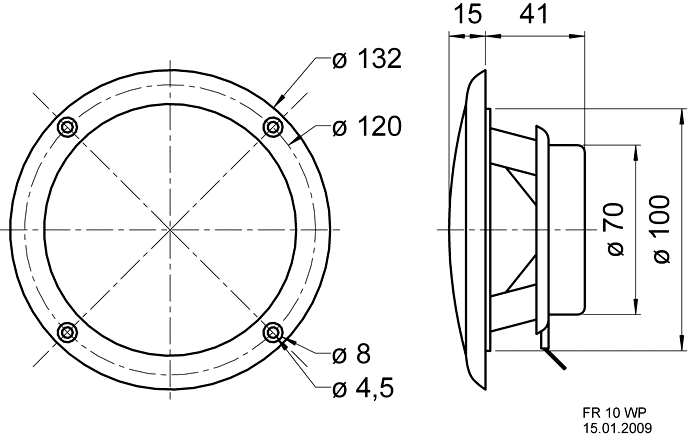

FR 10 WP · 4 Ω · black · part 2130 — Dimension drawing

Dimension drawing · Open original image

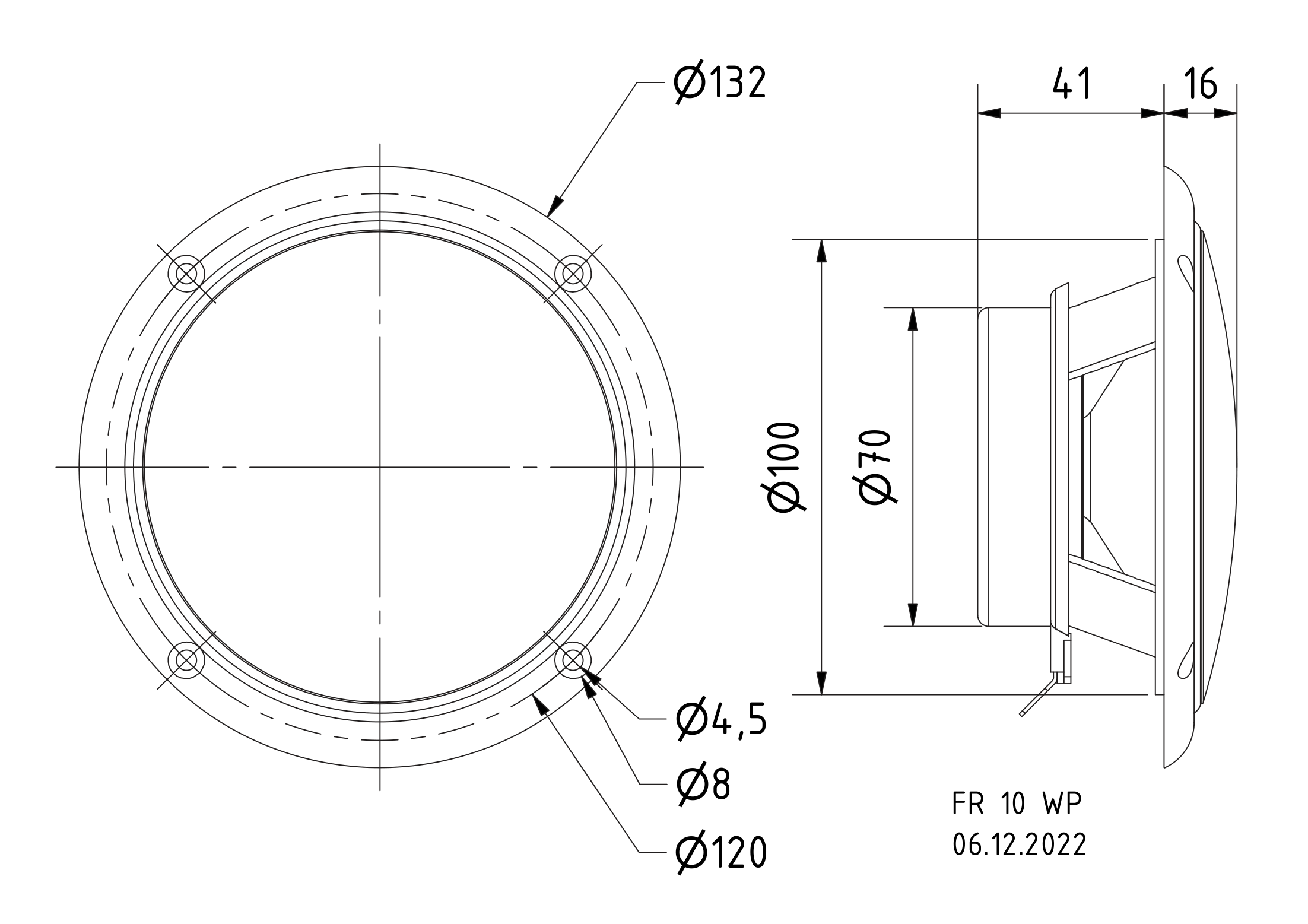

FR 10 WP · 4 Ω · black · part 2130 — Dimension drawing (from the manufacturer datasheet)

Dimension drawing (from the manufacturer datasheet) · Open original image

Installation and cabinet guidance

Allow for a 101 mm panel opening. The round flange is 132 mm in diameter with four 4.5 mm fixing holes, countersunk to 8 mm, on a 120 mm circle; mark them from the unit itself rather than assuming the spacing. Behind the panel allow about 41 mm for the 100 mm basket and its 70 mm magnet cup, plus room for the terminals and the wiring. The domed grille stands about 15 mm proud of the panel, so allow for that behind any fascia or trim and keep the grille clear.

The IP66 protection applies to the front of the driver only, and only when it is built into a sealed enclosure; the rear is open to the enclosure. Seal the joint between the flange and the panel, for which a matching gasket, part 2112, is available, and protect the rear from water and dust; bonding the driver in and fitting a front cover or grille may be needed to complete the protection. Fit the gasket dry and tighten the fixings evenly so the flange is not distorted. Run the cable so that water cannot track along it into the enclosure, and leave a drip loop where it is exposed. Operating temperature range −40 to 80 °C.

Connect to the 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors and observe polarity; the blades differ in width, so the wider blade identifies the positive. Use an amplifier suitable for the 4 Ω load and keep the drive within the 20 W rating (30 W maximum). For a 100 V line system, connect through a suitable line transformer; do not connect the driver directly to the line.

This is the black version; the white version is part 2110. Check the impedance and the colour against the amplifier and the installation before ordering.
