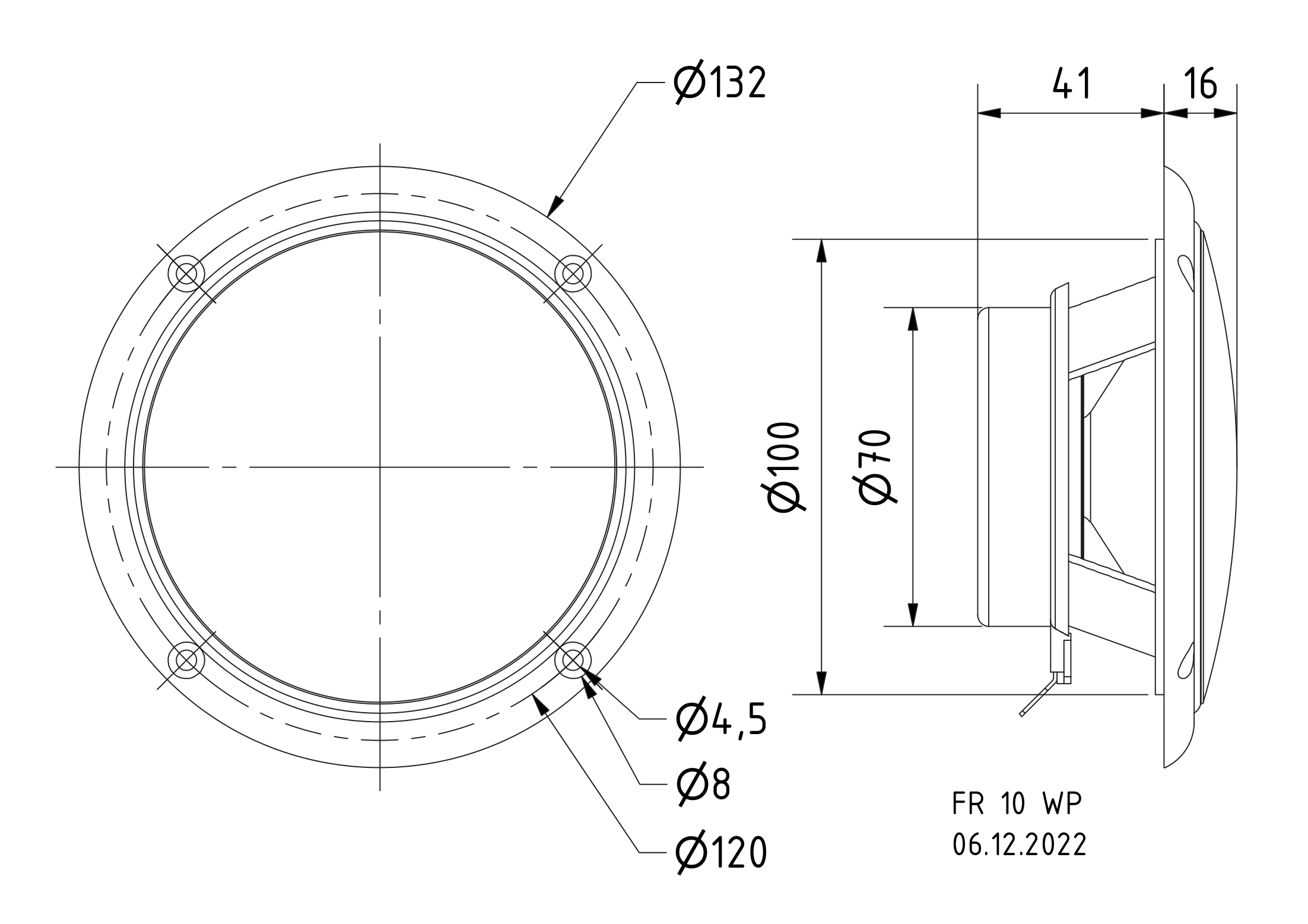

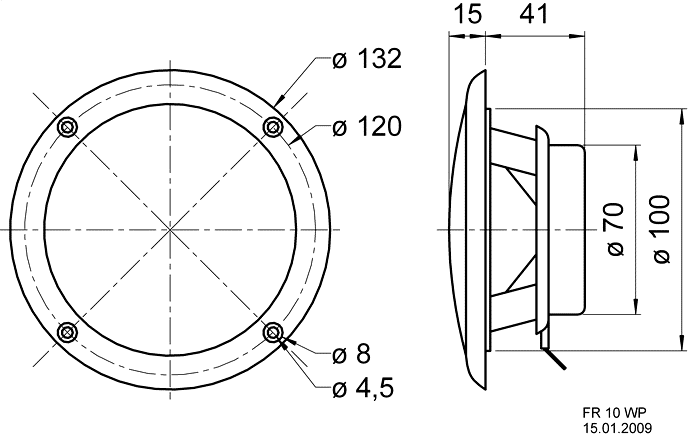

{ "id":1676793806915, "title":"Visaton FR 10 WP 4 Ohm (White), 4 Inch, Waterproof Speaker","handle":"visaton-fr-10-wp-4ohm-white-marine-4ins-full-range-loudspeaker-price-per-speaker", "description":"\u003cp\u003eVisaton FR 10 WP · 4 Ω · white — manufacturer article 2110\u003c\/p\u003e\n\u003cp\u003eA white, saltwater-resistant 10 cm full-range driver for outdoor PA, solariums, damp rooms, boats and ships.\u003c\/p\u003e\n\u003cp\u003eThe FR 10 WP is a saltwater-resistant full-range driver with a moulded plastic cone, basket and grille, corrosion-resistant and waterproof thanks to the encased magnet and silicone-coated leads, with clear high-range output. Its IP66 protection applies to the front when it is built into a sealed enclosure. This white 4 Ω version handles 20 W, gives 85 dB (1 W\/1 m) and is rated for −40 to 80 °C.\u003c\/p\u003e\n\u003ch2\u003eApplications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eOutdoor PA systems\u003c\/li\u003e\n\u003cli\u003eSolariums and damp rooms\u003c\/li\u003e\n\u003cli\u003eBoats, ships and open vehicles\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eKey selection facts\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eNominal size: 10 cm \/ 4 inch\u003c\/li\u003e\n\u003cli\u003eImpedance: 4 Ω\u003c\/li\u003e\n\u003cli\u003eRated power: 20 W\u003c\/li\u003e\n\u003cli\u003eCut-out: 101 mm\u003c\/li\u003e\n\u003cli\u003eSensitivity: 85 dB (1 W\/1 m)\u003c\/li\u003e\n\u003cli\u003eResonance: 120 Hz\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eInstallation and compatibility\u003c\/h2\u003e\n\u003cp\u003eAllow for a 101 mm panel opening. The round flange is 132 mm in diameter with four 4.5 mm fixing holes, countersunk to 8 mm, on a 120 mm circle; mark them from the unit itself rather than assuming the spacing. Behind the panel allow about 41 mm for the 100 mm basket and its 70 mm magnet cup, plus room for the terminals and the wiring; the domed grille stands about 15 mm proud of the panel, so allow for that behind any fascia or trim and keep the grille clear.\u003c\/p\u003e\n\u003cp\u003eThe IP66 protection applies to the front of the driver only, and only when it is built into a sealed enclosure; the rear is open to the enclosure. Seal the joint between the flange and the panel, for which a matching gasket, part 2112, is available, and protect the rear from water and dust; bonding the driver in and fitting a front cover or grille may be needed to complete the protection. Fit the gasket dry and tighten the fixings evenly so the flange is not distorted. Run the cable so that water cannot track along it into the enclosure, and leave a drip loop where it is exposed. Operating temperature range −40 to 80 °C.\u003c\/p\u003e\n\u003cp\u003eConnect to the 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors and observe polarity; the blades differ in width, so the wider blade identifies the positive. Use an amplifier suitable for the 4 Ω load and keep the drive within the 20 W rating (30 W maximum). For a 100 V line system, connect through a suitable line transformer; do not connect the driver directly to the line.\u003c\/p\u003e\n\u003cp\u003eThis is the white version; the black version is part 2130. Check the impedance and the colour against the amplifier and the installation before ordering.\u003c\/p\u003e\n\u003ch2\u003eTechnical specifications\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eMaximum power: 30 W\u003c\/li\u003e\n\u003cli\u003eNominal impedance: 4 Ω\u003c\/li\u003e\n\u003cli\u003eFrequency response (−10 dB): 80–16000 Hz\u003c\/li\u003e\n\u003cli\u003eMean sound pressure level: 85 dB (1 W\/1 m)\u003c\/li\u003e\n\u003cli\u003eOpening angle (-6 dB): 76°\/4000 Hz\u003c\/li\u003e\n\u003cli\u003eExcursion limit: ±2 mm\u003c\/li\u003e\n\u003cli\u003eResonance frequency fs: 120 Hz\u003c\/li\u003e\n\u003cli\u003eMagnetic induction: 0.85 T\u003c\/li\u003e\n\u003cli\u003eMagnetic flux: 290 µWb\u003c\/li\u003e\n\u003cli\u003eHeight of front pole-plate: 4 mm\u003c\/li\u003e\n\u003cli\u003eVoice coil diameter: 20 mm\u003c\/li\u003e\n\u003cli\u003eHeight of winding: 5 mm\u003c\/li\u003e\n\u003cli\u003eNet weight: 0.275 kg\u003c\/li\u003e\n\u003cli\u003eD.C. resistance Rdc: 3.8 Ω\u003c\/li\u003e\n\u003cli\u003eMechanical Q factor Qms: 3.13\u003c\/li\u003e\n\u003cli\u003eElectrical Q factor Qes: 2.14\u003c\/li\u003e\n\u003cli\u003eTotal Q factor Qts: 1.27\u003c\/li\u003e\n\u003cli\u003eEquivalent volume Vas: 2.1 l\u003c\/li\u003e\n\u003cli\u003eEffective piston area Sd: 50 cm²\u003c\/li\u003e\n\u003cli\u003eDynamically moved mass Mms: 5 g\u003c\/li\u003e\n\u003cli\u003eForce factor Bxl: 2.75 Tm\u003c\/li\u003e\n\u003cli\u003eInductance of the voice coil L: 0.3 mH\u003c\/li\u003e\n\u003cli\u003eColour: White\u003c\/li\u003e\n\u003cli\u003eTerminals: 4.8 x 0.8 mm (+)\/2.8 x 0.8 mm (-)\u003c\/li\u003e\n\u003cli\u003eProtective system: IP66 — front side in a sealed enclosure (the 2023 datasheet also shows IP67 under the same condition)\u003c\/li\u003e\n\u003cli\u003eTemperature range: −40 to 80 °C\u003c\/li\u003e\n\u003cli\u003eEnvironmental attributes: Suitable for outdoor applications; seawater-proof\u003c\/li\u003e\n\u003cli\u003eLow-temperature test: EN 60068-2-1: −40 °C for 96 hours\u003c\/li\u003e\n\u003cli\u003eLow-temperature requirements: Germanischer Lloyd (requirements for electrical equipment)\u003c\/li\u003e\n\u003cli\u003ePlastic: ASA (UL 94 HB; UV- and weather-resistant)\u003c\/li\u003e\n\u003cli\u003eBall resistance: Ball-resistant\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch2\u003eManufacturer information\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/sites\/default\/files\/dd_product\/FR%2010%20WP_2110_2130_0.pdf\"\u003eManufacturer datasheet (PDF)\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/www.visaton.de\/en\/products\/drivers\/fullrange-systems\/fr-10-wp-4-ohm-white\"\u003eCurrent manufacturer product page\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e", "published_at":"2018-10-11T15:08:40", "created_at":"2018-10-11T15:08:40", "vendor":"Visaton", "type":"Waterproof Speakers", "tags":["10","4ins","4Ohm","FR","Full-Range","Impedance_4 Ohm","Loudspeaker","Size_4 inch","Type_Marine Speakers","Visaton","Waterproof","Waterproof Speakers: Marine Speakers","White","WP"], "price":1895, "price_min":1895, "price_max":1895, "price_varies":false, "compare_at_price":null, "compare_at_price_min":0, "compare_at_price_max":0, "compare_at_price_varies":true, "all_variant_ids":[15302813286467], "variants":[{ "id":15302813286467, "product_id":1676793806915, "product_handle":"visaton-fr-10-wp-4ohm-white-marine-4ins-full-range-loudspeaker-price-per-speaker", "title":"Default Title", "option1":"Default Title", "option2":null, "option3":null, "sku":"2110", "requires_shipping":true, "taxable":true, "featured_image":null,"image_id":null, "available":true, "name":"Visaton FR 10 WP 4 Ohm (White), 4 Inch, Waterproof Speaker - Default Title", "options":["Default Title"], "price":1895, "weight":1000, "compare_at_price":null, "inventory_quantity":-52, "inventory_management":null, "inventory_policy":"deny", "inventory_in_cart":0, "inventory_remaining":-52, "incoming":false, "next_incoming_date":null, "taxable":true, "barcode":null}], "available":true,"images":["\/\/impactaudio.co.uk\/cdn\/shop\/products\/fr10wp_ws.jpg?v=1542208302","\/\/impactaudio.co.uk\/cdn\/shop\/products\/fr10wp_tz_44002489-d670-49e1-86bb-ecd14ae048a9.gif?v=1542208318","\/\/impactaudio.co.uk\/cdn\/shop\/products\/fr10wp_4_fs_88a7af7c-f060-432b-972e-178d887386f3.gif?v=1542208328","\/\/impactaudio.co.uk\/cdn\/shop\/products\/fr10wp_rd_cb10eedb-a7c0-4468-87b7-f61952d114c5.gif?v=1542208340"],"featured_image":"\/\/impactaudio.co.uk\/cdn\/shop\/products\/fr10wp_ws.jpg?v=1542208302", "options":["Title"], "url":"\/products\/visaton-fr-10-wp-4ohm-white-marine-4ins-full-range-loudspeaker-price-per-speaker"}
