Visaton FR 16 WP 4 Ohm (White), 6.5 Inch, Waterproof Speaker

FR 16 WP · 4 Ω · white · part 2116 — Product photo

Product photo · Enlarge image

FR 16 WP · 4 Ω · white · part 2116 — Product photo Product photo FR 16 WP · 4 Ω · white · part 2116 — Rear view and connections Rear view and connections FR 16 WP · 4 Ω · white · part 2116 — Dimension drawing Dimension drawing FR 16 WP · 4 Ω · white · part 2116 — Response and impedance Response and impedance FR 16 WP · 4 Ω · white · part 2116 — Directivity pattern Directivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

FR 16 WP · 4 Ω · white · part 2116 — Product photo

Product photo

Open original image
Part number: 2116

A white, water-resistant 16 cm full-range speaker for outdoor PA, solariums, damp rooms, boats and ships.

Nominal size
16 cm / 6.5 inch
Impedance
4 Ω
Rated power
30 W
Cut-out
143 mm
Sensitivity
86 dB (1 W/1 m)
Resonance
85 Hz
ex VAT
£27.54 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The FR 16 WP is a water-resistant full-range speaker with a moulded plastic cone, basket and grille, corrosion-resistant and waterproof thanks in part to the encased magnet. Its IP65 and IP67 protection applies to the front when it is built into a sealed enclosure. This white, UV- and weather-resistant 4 Ω version handles 30 W, gives 86 dB (1 W/1 m) and is rated for −40 to 80 °C.

Typical applications

  • Outdoor PA systems
  • Solariums and damp rooms
  • Boats, ships and open vehicles
Full specifications
FR 16 WP · 4 Ω · white
Rated power30 W
Nominal impedance4 Ω
Frequency response (−10 dB)60–15000 Hz
Mean sound pressure level86 dB (1 W/1 m)
Opening angle (-6 dB)46°/4000 Hz
Excursion limit3 ± 0.65 mm
Resonance frequency fs85 Hz
Magnetic induction1.0 T
Magnetic flux250 µWb
Height of front pole-plate4 mm
Voice coil diameter20 mm
Height of winding5.3 ±0.4 mm
Cut-out143 mm
Net weight0.46 kg
D.C. resistance Rdc3.7 Ω
Mechanical Q factor Qms2.99
Electrical Q factor Qes1.55
Total Q factor Qts1.02
Equivalent volume Vas10 l
Effective piston area Sd130 cm²
Dynamically moved mass Mms8 g
Force factor Bxl3.3 Tm
Inductance of the voice coil L0.4 mH
ColourWhite
Terminals4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-)
Protective systemIP65 / IP67 — front side in a sealed enclosure
Temperature range−40 to 80 °C
Environmental attributesSuitable for outdoor applications; waterproof; UV-resistant; weather-resistant
Low-temperature testEN 60068-2-1: −40 °C for 96 hours
Low-temperature requirementsGermanischer Lloyd (requirements for electrical equipment)
Dimensions and drawings

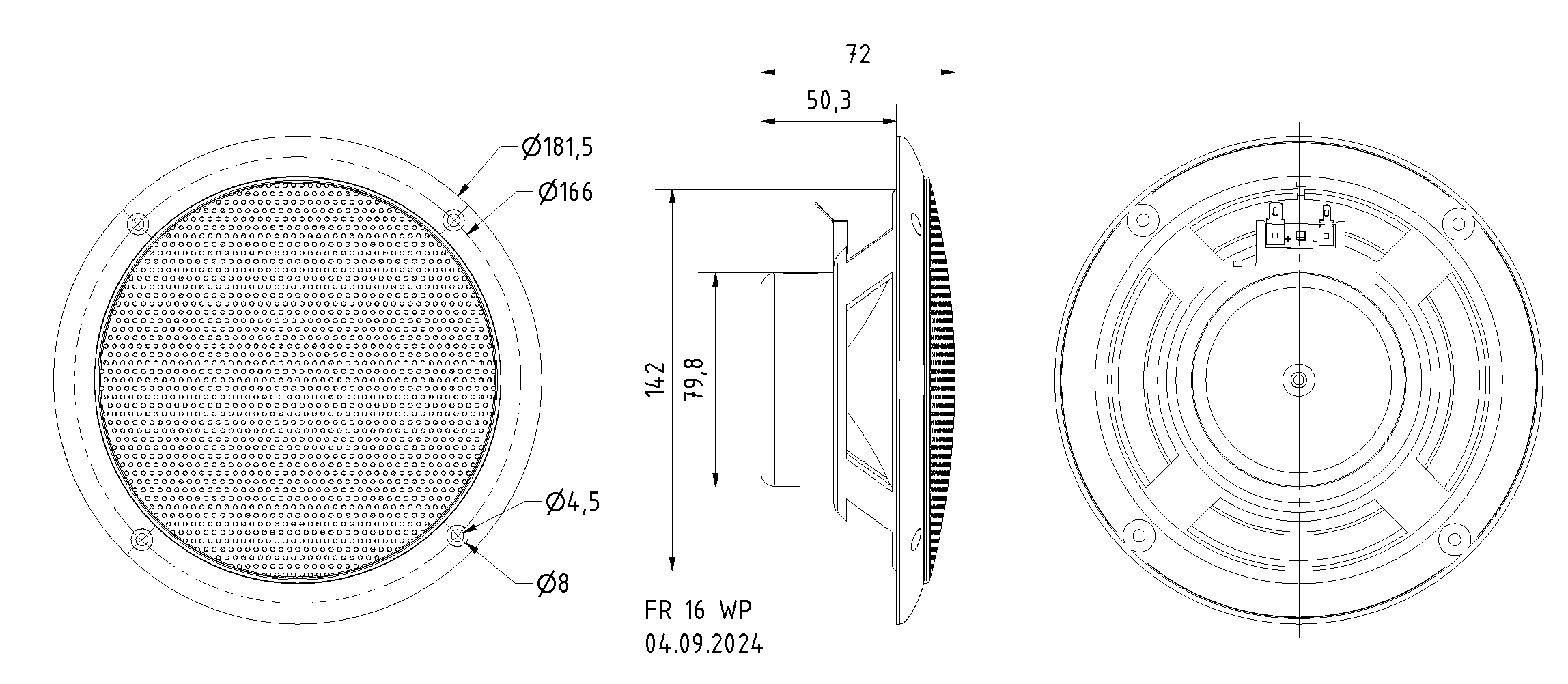

FR 16 WP · 4 Ω · white · part 2116 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Allow for a 143 mm panel opening. The round flange is 181.5 mm in diameter with four 4.5 mm fixing holes, countersunk to 8 mm, on a 166 mm circle; mark them from the unit itself rather than assuming the spacing. Behind the panel allow about 50.3 mm for the 142 mm basket and its 79.8 mm magnet cup, plus room for the terminals and the wiring; the unit is 72 mm deep overall including the grille, so check the clearance behind any fascia or trim and keep the grille clear.

The IP65 and IP67 protection applies to the front of the driver only, and only when it is built into a sealed enclosure; the rear is open to the enclosure. Seal the joint between the flange and the panel, for which a matching gasket, part 2118, is available, and protect the rear from water and dust; bonding the driver in and fitting a front cover or grille may be needed to complete the protection. Fit the gasket dry and tighten the fixings evenly so the flange is not distorted. Run the cable so that water cannot track along it into the enclosure, and leave a drip loop where it is exposed. Operating temperature range −40 to 80 °C.

Connect to the 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-) blade terminals with matching push-on connectors and observe polarity; the blades differ in width, so the wider blade identifies the positive. Use an amplifier suitable for the 4 Ω load and keep the drive within the 30 W rating. For a 100 V line system, connect through a suitable line transformer; do not connect the driver directly to the line.

This is the white version; the black version is part 2136. Check the impedance and the colour against the amplifier and the installation before ordering.
