Visaton Spacer Ring DR PL 8 RV
Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The DR PL 8 RV is the black spacer-ring model documented on Visaton's product page. Confirm the ring against the intended DR PL assembly and use the linked drawing to set the opening, fixing positions and clearance.
Typical applications
- Spacing the named DR PL model
- Flush-mount loudspeaker assemblies
- Service and replacement installations
Full specifications
| Colour | Black |
|---|
Dimensions and drawings

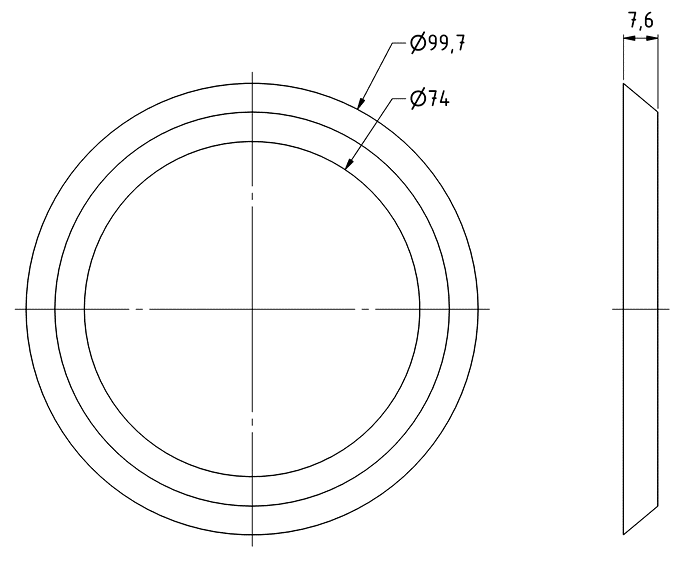

Dimension drawing · Open original image
Installation and cabinet guidance
Confirm the ring model against the exact DR PL assembly before drilling or cutting.
Use the manufacturer drawing to set the opening, fixing positions and required clearance.
Seat the ring flat and tighten the assembly evenly so the ring and grille are not distorted.
