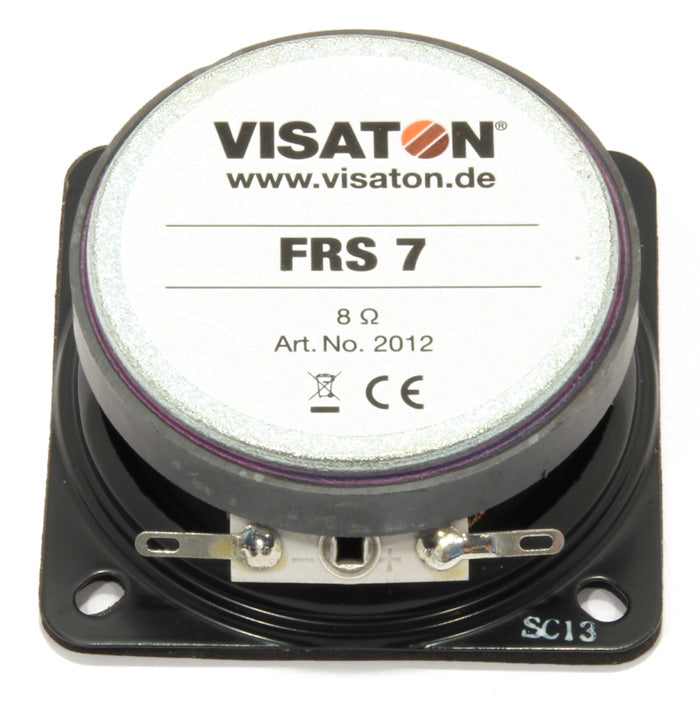

Visaton FRS 7 | 8 Ohm - 6.5cm/2.5ins Full range speaker

Product Description

Balanced frequency response and very good highsFRS 7. Art. No. 2012 . 8 Ohms. 6.5cm/2.5ins full range speaker with balanced frequency response and very good highs. Especially suitable as built-in speaker for music reproduction and as driver for 100 V network column speakers. Outstandingly high efficiency compared to the small size.

Rated Power 8 Watt
Maximum power 15 Watt
Impedance 4 + 8 Ohm
Sound pressure level -
Sensitivity -
Frequency response (-10 dB) 200 - 20000 Hz
Mean sound pressure level -
Max sound pressure level 88 dB (1 W / 1 m)
Maximum cone displacement 3 mm
Resonance frequency 250 Hz
Magnetic induction 1,2 Tesla
Magnetic flux 160 micro Weber
Height of front pole-plate 3 mm
Voice coil diameter 14 mm
Height of winding 4 mm

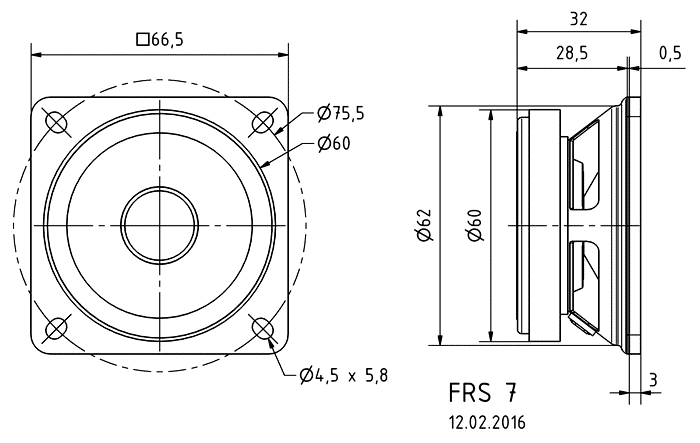

Cutout diameter 61 mm
Length of cable -
Net Weight 0,2 kg
ex VAT
£11.35 inc VAT
