Visaton DK 10 MW 100 V/70 V/8 Ohm, Re-Entrant Horn Speaker

Next Product
DK 10 MW · 100 V / 70 V / 8 Ω · part 50254 — Product photo

Product photo · Enlarge image

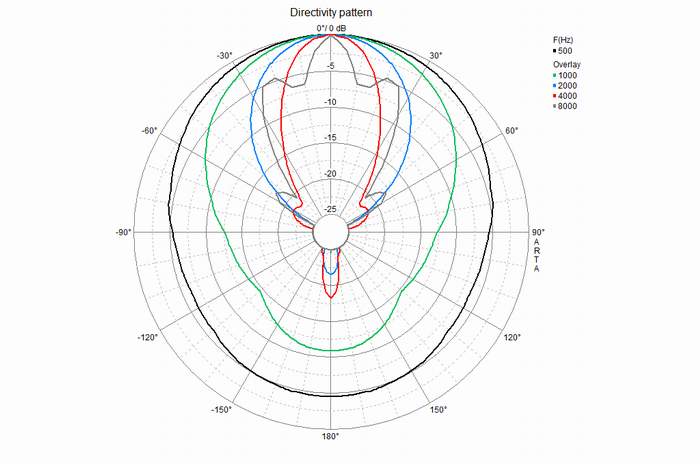

DK 10 MW · 100 V / 70 V / 8 Ω · part 50254 — Product photoProduct photo DK 10 MW · 100 V / 70 V / 8 Ω · part 50254 — Dimension drawingDimension drawing DK 10 MW · 100 V / 70 V / 8 Ω · part 50254 — Frequency response · 100 V configurationFrequency response · 100 V configuration DK 10 MW · 100 V / 70 V / 8 Ω · part 50254 — Directivity patternDirectivity pattern

Product photographs and manufacturer drawings. Images are not to scale.

DK 10 MW · 100 V / 70 V / 8 Ω · part 50254 — Product photo

Product photo

Open original image
Part number: 50254

An IP66 horn with a 232 mm mouth for 100 V, 70 V or 8 Ω speech systems.

Type
Horn speaker
Connection
100 V / 70 V / 8 Ω
Power / taps
30 W
Frequency range
400–5000 Hz
Finish
Light grey
Protection
IP66
ex VAT
£173.17 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The DK 10 MW provides 30 W rated power in a light-grey, UV-resistant ABS housing. Its rotary selector offers separate transformer settings for 100 V and 70 V lines plus an 8 Ω mode. A stainless-steel swivel bracket lets the installer aim speech coverage from a wall, ceiling or column.

Typical applications

  • Outdoor speech reinforcement
  • Industrial and commercial public-address systems
Full specifications
DK 10 MW · 100 V / 70 V / 8 Ω
Rated power30 W
Maximum power60 W
Frequency response (−10 dB)400–5000 Hz
Mean sound pressure level110 dB (1 W/1 m)
Net weight2.11 kg
Transformer matching100 V: 30 W/15 W/7.5 W/3.75 W/Off/8 Ω 70 V: 15 W/7.5 W/3.75 W/1.87 W/Off/8 Ω
Max. sound pressure level125 dB (30 W/1 m)
Protective systemIP66
Temperature range−30 to 90 °C
ColourLight grey
Horn mouth diameter232 mm
Overall length shown in drawing390 mm
Opening angle (−6 dB) at 4000 Hz35°
Dimensions and drawings
DK 10 MW · 100 V / 70 V / 8 Ω · part 50254 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Use the dimension drawing to allow for the 232 mm horn mouth, full body length and bracket movement. Fix the stainless-steel bracket securely and aim the horn at the intended listening area.

With the amplifier off, select a tap for the actual line voltage, or select 8 Ω for a compatible low-impedance amplifier. The 70 V and 100 V power values differ. Never feed a constant-voltage line into the 8 Ω setting.

Keep the cable joint protected against the installation environment and support the lead independently of the speaker. Preserve the enclosure and cable-entry seals for the IP66 installation.
