Visaton DK 8 100 V/20 Ohm, Re-Entrant Horn Speaker
Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The DK 8 is intended for clear speech over a 400–5000 Hz range. Visaton lists 105 dB mean sound pressure, 117 dB maximum sound pressure at 15 W/1 m, 15/10/5/3/1 W transformer settings, an additional 20 Ω connection and IP66 protection. The bracket permits wall, ceiling or column mounting.
Typical applications
- Commercial audio systems
- Speech and programme reproduction
- Fixed installations using the stated 100 V or low-impedance connection
Full specifications

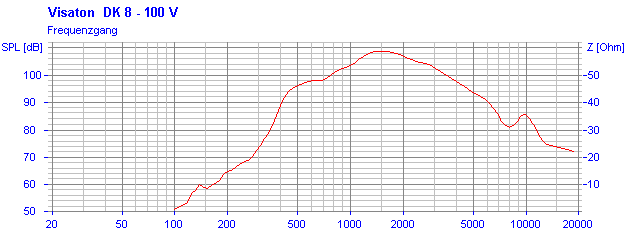

| Frequency response | 400–5000 Hz |
|---|---|
| Mean sound pressure level | 105 dB (1 W/1 m) |

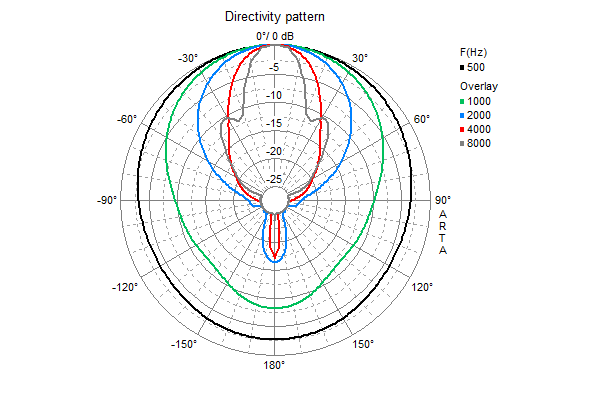

| Opening angle (-6 dB) | 42°/4000 Hz |
| Net weight | 1.4 kg |
| Transformer matching | 15 W/10 W/5 W/3 W/1 W / 20 Ω |
| Sound pressure level | 109 dB (1 W/1 m)@ 1500 Hz |
| Max. sound pressure level | 117 dB (15 W/1 m) |
| Colour | similar RAL 7012 |
| Length of cable | 0.6 m |
| Protective system | IP 66 |
| Temperature range | –25 ... 70 °C |
Dimensions and drawings

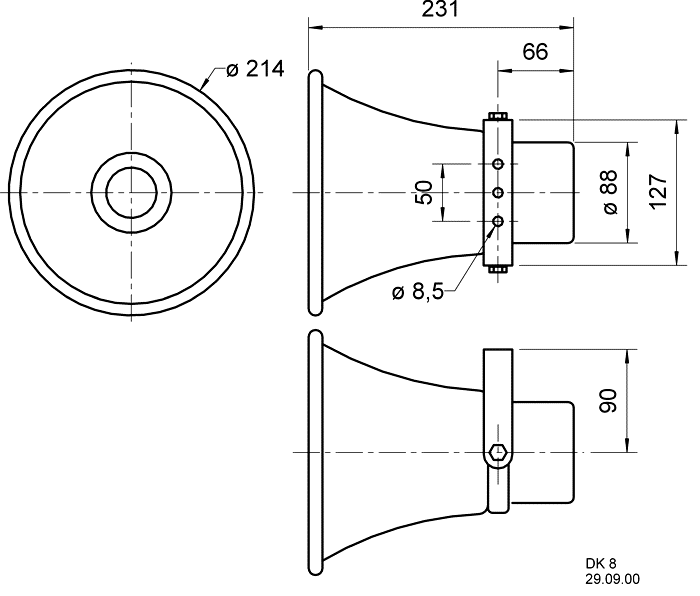

Dimension drawing · Open original image
Installation and cabinet guidance
Isolate the 100 V line before wiring and select the transformer tap for the required local level.
Keep the total selected tap load within the amplifier's rated 100 V output, including design headroom.
Use the manufacturer drawing for fixing and clearance; secure the cable and preserve any stated environmental protection at the mounting surface.
