Visaton DK 8 P 100 V, 15 W, Re-Entrant Horn Speaker
Product photo · Enlarge image
Product photographs and manufacturer drawings. Images are not to scale.
Quantity discounts
Buying in quantity?
Contact us with the quantity you need and we can discuss pricing for your order.
Request a quantity quoteDescription
The DK 8 P 15 W uses an ABS horn body and a stainless-steel pivoting frame for wall, ceiling or column mounting. Visaton lists a 500–5500 Hz response, 107 dB mean sound pressure, 119 dB maximum at 15 W/1 m, 15/10/5/3/1 W transformer settings, an additional 20 Ω connection and IP66 protection.
Typical applications
- Commercial audio systems
- Speech and programme reproduction
- Fixed installations using the stated 100 V or low-impedance connection
Full specifications

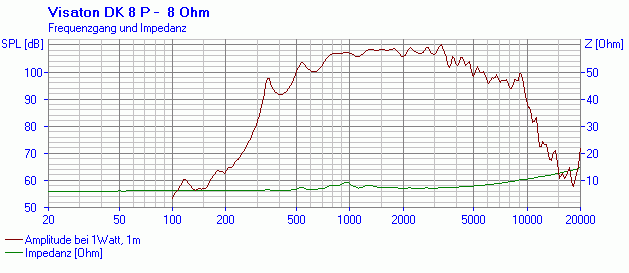

| Frequency response | 500–5500 Hz |
|---|---|
| Mean sound pressure level | 107 dB (1 W/1 m) |

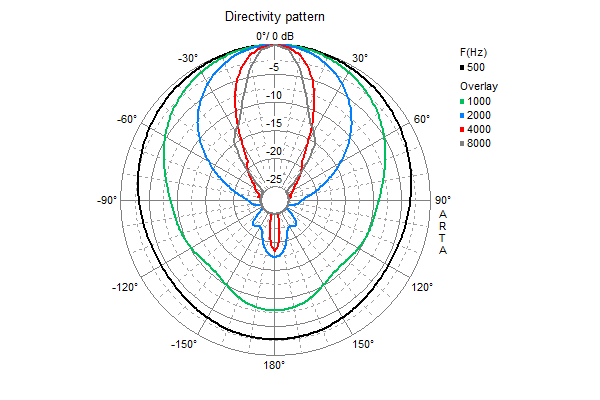

| Opening angle (-6 dB) | 37°/4000 Hz |
| Net weight | 1.8 kg |
| Transformer matching | 15 W/10 W/5 W/3 W/1 W / 20 Ω |
| Sound pressure level | 110 dB (1 W/1 m)@ 2644 Hz |
| Max. sound pressure level | 119 dB (15 W/1 m) |
| Colour | light grey similar RAL 7035 |
| Length of cable | 0.6 m |
| Protective system | IP 66 |
| Temperature range | −40 ... 80 °C |
Dimensions and drawings

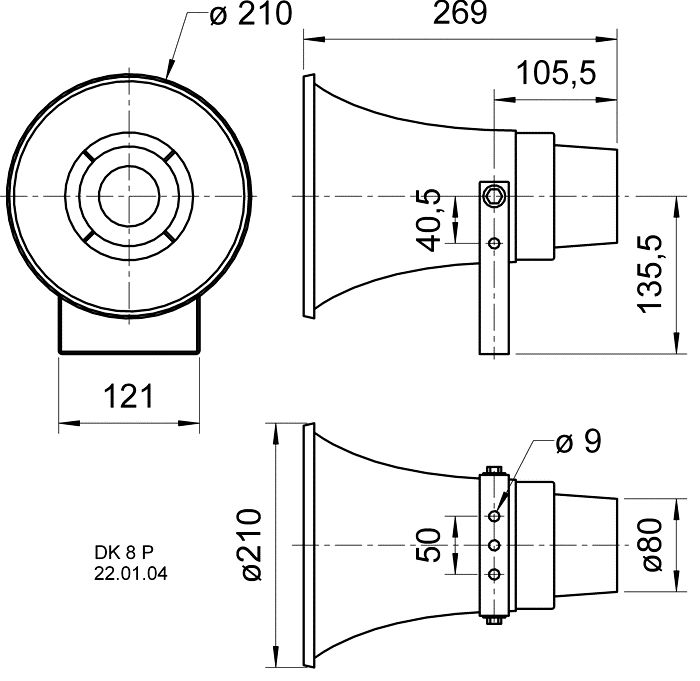

Dimension drawing · Open original image
Installation and cabinet guidance
Isolate the 100 V line before wiring and select the transformer tap for the required local level.
Keep the total selected tap load within the amplifier's rated 100 V output, including design headroom.
Use the manufacturer drawing for fixing and clearance; secure the cable and preserve any stated environmental protection at the mounting surface.
