Visaton R 10 ND 8 Ohm, 4 Inch, Full Range Speaker

Previous Product | Next Product
R 10 ND · 8 Ω · part 2334 — Product photo

Product photo · Enlarge image

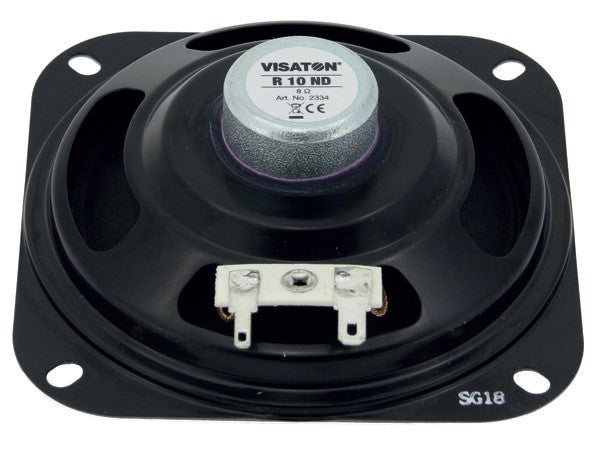

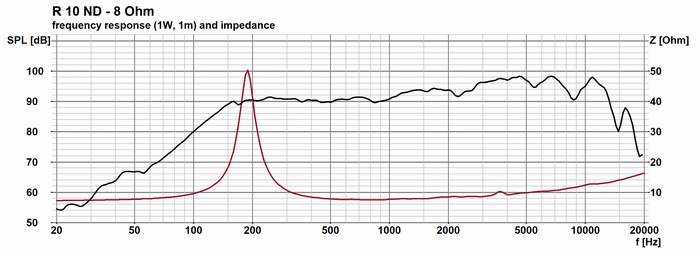

R 10 ND · 8 Ω · part 2334 — Product photo Product photo R 10 ND · 8 Ω · part 2334 — Rear view and connections Rear view and connections R 10 ND · 8 Ω · part 2334 — Dimension drawing Dimension drawing R 10 ND · 8 Ω · part 2334 — Frequency response and impedance Frequency response and impedance

Product photographs and manufacturer drawings. Images are not to scale.

R 10 ND · 8 Ω · part 2334 — Product photo

Product photo

Open original image
Part number: 2334

A shallow, lightweight 8 Ω full-range driver for speech and equipment audio.

Type
Full-range driver
Nominal size
10 cm (4 inch)
Impedance
8 Ω
Long-term power limit
20 W, DIN EN 60268-5
Frequency range
120–16000 Hz
Overall depth
35.5 mm
ex VAT
£38.34 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The R 10 ND combines a neodymium magnet with a water-repellent cone and rubber gasket. Its 92 dB mean sensitivity suits speech reproduction in equipment and public transport interiors. The 20 W limit is the manufacturer’s maximum long-term power figure under DIN EN 60268-5.

Typical applications

  • Speech and monitoring in electronic equipment
  • Passenger-information and public-interior audio
Full specifications
R 10 ND · 8 Ω
Maximum long-term power (DIN EN 60268-5)20 W
Nominal impedance8 Ω
Frequency response (−10 dB)120-16000 Hz
Mean sound pressure level92 dB (1 W/1 m)
Resonance frequency fs165 Hz
Net weight0.113 kg
Connections4.8 × 0.8 mm (+)/2.8 × 0.8 mm (-)
Protective systemIP54 front only in a sealed enclosure; adhesive and grille may be needed
Temperature range−40 to 70 °C
Frame width / height102 × 102 mm
Overall depth (drawing)35.5 mm
Dimensions and drawings

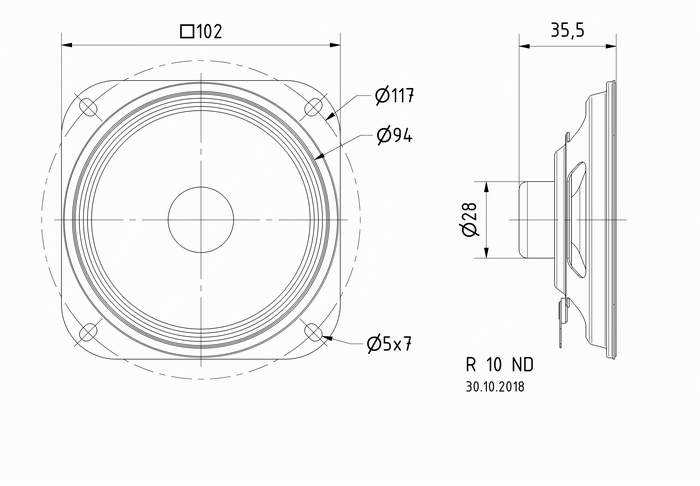

R 10 ND · 8 Ω · part 2334 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Use the exact drawing to plan the 102 × 102 mm frame and 35.5 mm overall depth. Check the actual baffle opening and fixing pattern; the drawing’s basket diameter is not a separately stated cutout specification.

Connect a compatible 8 Ω amplifier using the 4.8 × 0.8 mm positive and 2.8 × 0.8 mm negative terminals. Support the wiring without loading the terminal tabs.

IP54 applies to the front when built into a sealed enclosure. Adhesive sealing and a front grille may be necessary; protect the rear and connections separately.
