Visaton WL 13 NR 100 V, Wall Speaker (Volume Control)

Part number: 50303

A white wooden wall speaker for 100 V announcements and background music, with local volume control.

Type
Wall speaker
Connection
100 V
Power / taps
6 W/3 W/1.5 W
Frequency range
90–20000 Hz
Finish
White, RAL 9010
Volume control
Built in
ex VAT
£63.54 inc VAT
Maximum quantity available reached.

Stock and dispatch
Selected products are held in UK stock; other lines are sourced to order. Dispatch timing depends on the product and quantity.

Delivery information. Need it for a specific date? Ask us.

Quantity discounts

Description

The WL 13 NR places a full-range driver behind a metal grille in a shallow wooden cabinet. The transformer provides 6 W, 3 W and 1.5 W settings for balancing coverage across a distributed system. Its built-in volume knob provides local level adjustment.

Typical applications

  • Announcements in public and commercial interiors
  • Background music in schools, hotels and waiting areas
Full specifications
WL 13 NR · 100 V

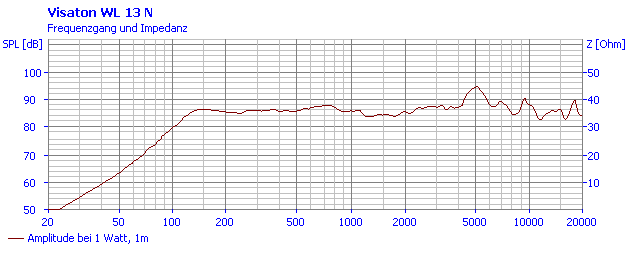

Frequency response (−10 dB)90–20000 Hz
Mean sound pressure level88 dB (1 W/1 m)

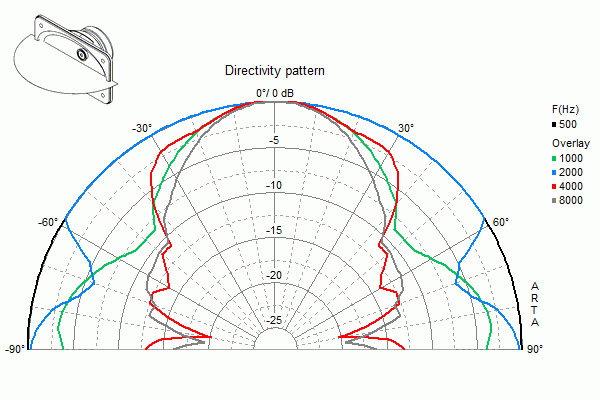

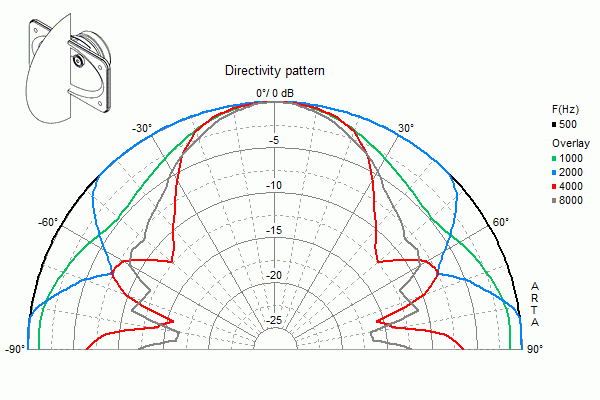

Opening angle (-6 dB)79°/4000 Hz hor. / 61°/4000 Hz vert.
Net weight1.4 kg
Transformer matching6 W/3 W/1.5 W
Sound pressure level96 dB (1 W/1 m)@ 4954 Hz
Max. sound pressure level96 dB (6 W/1 m)
ColourWhite, RAL 9010
ConnectionsSpring terminals
Temperature range–25 to 70 °C
Cabinet dimensions (W × H × D)280 × 170 × 65 mm
Dimensions and drawings

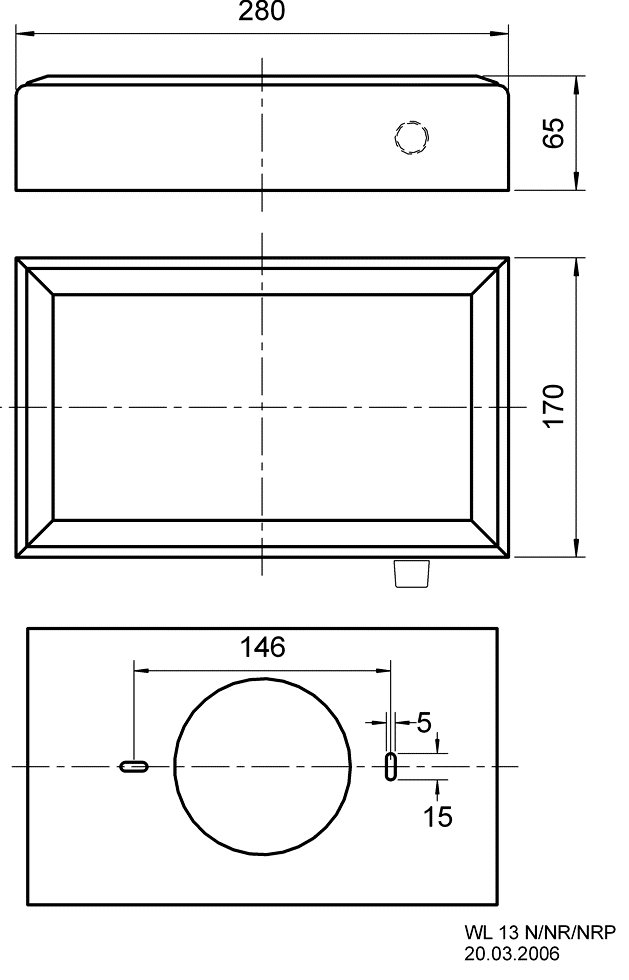

WL 13 NR · 100 V · part 50303 — Dimension drawing

Dimension drawing · Open original image

Installation and cabinet guidance

Remove the rear panel to position the two wall fixings. Check the 280 × 170 × 65 mm cabinet dimensions and use fixings suitable for the wall and the speaker weight.

Connect the 100 V line to the spring terminals at the selected 6 W, 3 W or 1.5 W tap, maintaining polarity. Select the tap with the amplifier switched off.

Route the cable without trapping it against the cabinet or mounting surface. Include this speaker’s selected tap in the total load calculation for the 100 V amplifier.
